09010-04800 BODY ASSY, INJECTI Denso Cross

Information body assy, injecti

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy BODY ASSY, INJECTI 09010-04800 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti	1904400300
Body assy, injecti	1904400300
Body assy, injecti	1904400300
Body assy, injecti	1904400300
Body assy, injecti	1904400300
Body assy, injecti	1904400300
Body assy, injecti	1904400300
Body assy, injecti	1904400300
Body assy, injecti	1904400300
Body assy, injecti	1904400300
Body assy, injecti	1904400300
Body assy, injecti	1904400300
Body assy, injecti	1904400300
Body assy, injecti	1904400300
Body assy, injecti	1904400300

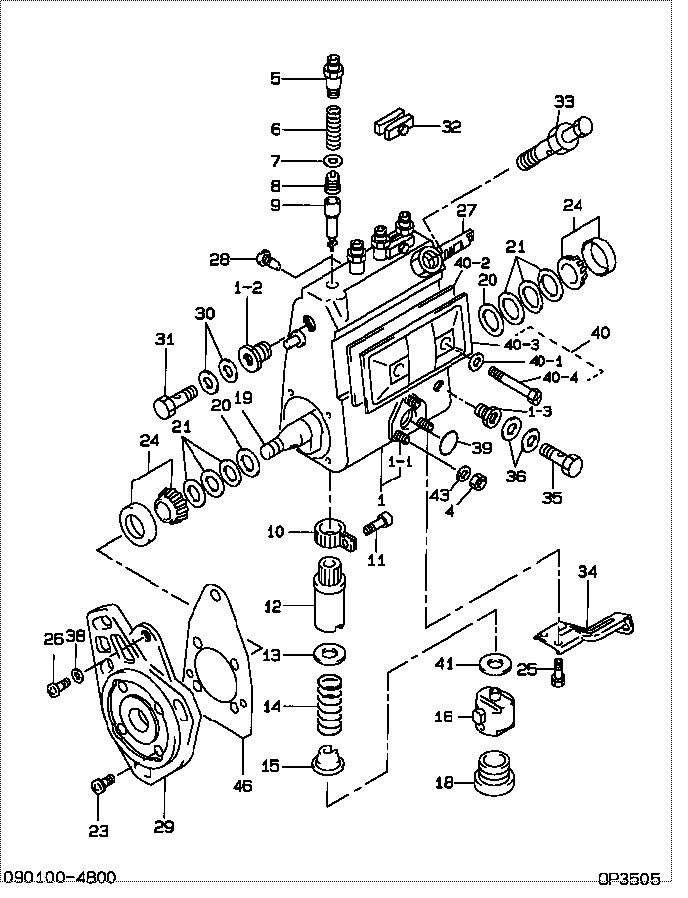

Scheme ###:

000.	[01]	09010-04800	BODY ASSY, INJECTI	22120-58011-000
000.	[01]	09010-04800	BODY ASSY, INJECTI
000.	[01]	09010-04800	BODY ASSY, INJECTI	22120-58011
001.	[01]	19011-02640	HOUSING KIT, INJEC	22190-56042
001.	[01]	19011-02640	HOUSING KIT, INJEC
001.	[01]	19011-02640	HOUSING KIT, INJEC	22190-56042-000
001-001.	[03]	94904-30010	BOLT, STUD	22857-1060A
001-001.	[03]	94904-30010	BOLT, STUD	90099-04071
001-001.	[03]	94904-30010	BOLT, STUD	90099-04071-000
001-002.	[01]	09022-10310	UNION, INJECTION P
001-002.	[01]	09022-10310	UNION, INJECTION P	22131-1580A
001-002.	[01]	09022-10310	UNION, INJECTION P
001-003.	[01]	09012-10170	NIPPLE
001-003.	[01]	09012-10170	NIPPLE
001-003.	[01]	09012-10170	NIPPLE
004.	[03]	90160-06051	NUT, HEXAGON	94110-40600-000
004.	[03]	90160-06051	NUT, HEXAGON	90092-10101
004.	[03]	90160-06051	NUT, HEXAGON	22825-1480A
005.	[04]	09013-10010	HOLDER, DELIVERY V	22131-77020
005.	[04]	09013-10010	HOLDER, DELIVERY V	2213B-77020
005.	[04]	09013-10010	HOLDER, DELIVERY V	22131-77020-000
006.	[04]	09013-60050	SPRING, DELIVERY V	22148-46010
006.	[04]	09013-60050	SPRING, DELIVERY V	2214J-46010
006.	[04]	09013-60050	SPRING, DELIVERY V	22148-46010-000
007.	[04]	09013-70010	GASKET, DELIVERY V	22847-1450
007.	[04]	09013-70010	GASKET, DELIVERY V	22149-76010-000
007.	[04]	09013-70010	GASKET, DELIVERY V	22149-76010
008.	[04]	09014-00010	VALVE SUB-ASSY, IN	22104-77020
008.	[04]	09014-00010	VALVE SUB-ASSY, IN	2210E-77020
008.	[04]	09014-00010	VALVE SUB-ASSY, IN	22104-77020-000
009.	[04]	09015-02550	ELEMENT SUB-ASSY,	22105-58010-000
009.	[04]	09015-02550	ELEMENT SUB-ASSY,
009.	[04]	09015-02550	ELEMENT SUB-ASSY,	22105-58010
010.	[04]	09015-60010	PINION, PLUNGER CO	22128-1020A
010.	[04]	09015-60010	PINION, PLUNGER CO	22155-76010-000
010.	[04]	09015-60010	PINION, PLUNGER CO	22155-76010
011.	[04]	09015-70010	SCREW, PLUNGER CON	22865-1280A
011.	[04]	09015-70010	SCREW, PLUNGER CON	22156-76010-000
011.	[04]	09015-70010	SCREW, PLUNGER CON	22156-76010
012.	[04]	09016-10160	SLEEVE, PLUNGER CO	22118-1090A
012.	[04]	09016-10330	SLEEVE, PLUNGER CO	22118-1310A
012.	[04]	09016-10160	SLEEVE, PLUNGER CO	22142-77020
012.	[04]	09016-10330	SLEEVE, PLUNGER CO	22142-58230
012.	[04]	09016-10160	SLEEVE, PLUNGER CO	22142-77020-000
012.	[04]	09016-10330	SLEEVE, PLUNGER CO	22142-58230-000
013.	[04]	09016-30010	SEAT, SPRING, UPR	2214D-77020
013.	[04]	09016-30010	SEAT, SPRING, UPR	22143-77020
013.	[04]	09016-30191	SEAT, SPRING, UPR	22143-78150
013.	[04]	09016-30010	SEAT, SPRING, UPR	22143-77020-000
013.	[04]	09016-30191	SEAT, SPRING, UPR	22143-78150-000
013.	[04]	09016-30191	SEAT, SPRING, UPR	22119-1190A
014.	[04]	09016-40090	SPRING, PUMP PLUNG	22121-1170A
014.	[04]	09016-40090	SPRING, PUMP PLUNG	22144-46010
014.	[04]	09016-40090	SPRING, PUMP PLUNG	22144-46010-000
015.	[04]	09016-50020	SEAT, SPRING, LWR	22145-46010-000
015.	[04]	09016-50020	SEAT, SPRING, LWR	22122-1020A
015.	[04]	09016-50020	SEAT, SPRING, LWR	22145-46010
016.	[04]	09017-00070	TAPPET SUB-ASSY,IN	22106-46010
016.	[04]	09017-00070	TAPPET SUB-ASSY,IN	22105-1020A
016.	[04]	09017-00070	TAPPET SUB-ASSY,IN	22106-46010-000
018.	[04]	09018-90090	PLUG, INJECTION PU	22157-87302-000
018.	[04]	09018-90090	PLUG, INJECTION PU	22845-1420A
018.	[04]	09018-90090	PLUG, INJECTION PU	22157-48024
019.	[01]	09019-10082	CAMSHAFT, INJECTIO	22146-56010-000
019.	[01]	09019-10082	CAMSHAFT, INJECTIO	22146-56010
019.	[01]	09019-10082	CAMSHAFT, INJECTIO	0 901 9100 81
020.	[02]	09019-30020	RING, CAMSHAFT ADJ	22147-77020
020.	[02]	09019-30020	RING, CAMSHAFT ADJ	22147-77020-000
020.	[02]	09019-30020	RING, CAMSHAFT ADJ	22124-1160A
021.	[6C]	09019-40030	PLATE, CAMSHAFT SH	22163-76010
021.	[6C]	09019-40040	PLATE, CAMSHAFT SH	22885-4930A
021.	[6C]	09019-40060	PLATE, CAMSHAFT SH	22885-4950A
021.	[6C]	09019-40050	PLATE, CAMSHAFT SH	22885-4940A
021.	[6C]	09019-40030	PLATE, CAMSHAFT SH	22885-4920A
021.	[6C]	09019-40010	PLATE, CAMSHAFT SH	22885-4900A
021.	[6C]	09019-40020	PLATE, CAMSHAFT SH	22885-4910A
021.	[6C]	09019-40010	PLATE, CAMSHAFT SH	22161-76010-000
021.	[6C]	09019-40010	PLATE, CAMSHAFT SH	22161-76010
021.	[6C]	09019-40040	PLATE, CAMSHAFT SH	22164-76010
021.	[6C]	09019-40050	PLATE, CAMSHAFT SH	22165-76010
021.	[6C]	09019-40060	PLATE, CAMSHAFT SH	22166-76010
021.	[6C]	09019-40020	PLATE, CAMSHAFT SH	22162-76010
021.	[6C]	09019-40060	PLATE, CAMSHAFT SH	22166-76010-000
021.	[6C]	09019-40020	PLATE, CAMSHAFT SH	22162-76010-000
021.	[6C]	09019-40030	PLATE, CAMSHAFT SH	22163-76010-000
021.	[6C]	09019-40040	PLATE, CAMSHAFT SH	22164-76010-000
021.	[6C]	09019-40050	PLATE, CAMSHAFT SH	22165-76010-000
023.	[04]	94900-72471	SCREW, W/WASHER	90099-00928-000
023.	[04]	94900-72471	SCREW, W/WASHER	9 490 0724 70
023.	[04]	94900-72471	SCREW, W/WASHER	90099-00928
024.	[02]	94910-10120	BEARING, ROLLER	90091-30203-000
024.	[02]	94910-10120	BEARING, ROLLER	22837-1230A
024.	[02]	94910-10120	BEARING, ROLLER	90099-10087
025.	[02]	91410-08141	BOLT, W/WASHER	91611-40814-000
025.	[02]	91410-08141	BOLT, W/WASHER	91611-40814
025.	[02]	91410-08141	BOLT, W/WASHER	22815-2570A
026.	[01]	94900-62961	SCREW	9 490 0629 60
026.	[01]	94900-62961	SCREW	90099-00894-000
026.	[01]	94900-62961	SCREW	90099-00894
027.	[01]	09021-20441	RACK, CONTROL	2211E-48030
027.	[01]	09021-20441	RACK, CONTROL	22114-48030
027.	[01]	09021-20441	RACK, CONTROL	22114-48030-000
028.	[01]	09021-50060	SCREW, RACK GUIDE	22115-78140
028.	[01]	09021-50011	SCREW, RACK GUIDE	22115-77020
028.	[01]	09021-50060	SCREW, RACK GUIDE	22811-4850A
028.	[01]	09021-50011	SCREW, RACK GUIDE	22811-1980A
028.	[01]	09021-50011	SCREW, RACK GUIDE	22115-77020-000
028.	[01]	09021-50060	SCREW, RACK GUIDE	22115-78140-000
029.	[01]	09020-40162	FLANGE, INJECTION	2218B-56040
029.	[01]	09020-40162	FLANGE, INJECTION	22181-56040
029.	[01]	09020-40162	FLANGE, INJECTION	22181-56040-000
030.	[02]	09022-20070	WASHER, FUEL PIPE	94712-77121
030.	[02]	09022-20070	WASHER, FUEL PIPE	0 902 2200 70
030.	[02]	09022-20070	WASHER, FUEL PIPE	22125-87301-000
031.	[01]	94918-00310	SCREW, HOLLOW	S2283-51310-A
031.	[01]	94918-00310	SCREW, HOLLOW	90099-18010
031.	[01]	94918-00310	SCREW, HOLLOW	90099-18010-000
032.	[02]	09023-00031	PLATE SET, VALVE H	22102-77021-000
032.	[02]	09023-00031	PLATE SET, VALVE H	22102-77021
032.	[02]	09023-00031	PLATE SET, VALVE H	22109-1090A
033.	[01]	09024-00010	BLEEDER SUB-ASSY,	22150-67010
033.	[01]	09024-00010	BLEEDER SUB-ASSY,	22106-1060
033.	[01]	09024-00010	BLEEDER SUB-ASSY,	22150-67010-000
034.	[01]	09045-30080	STAY, INJECTION PU	2217H-56042
034.	[01]	09045-30080	STAY, INJECTION PU	22177-56042-000
034.	[01]	09045-30080	STAY, INJECTION PU	22177-56042
035.	[01]	94918-00680	SCREW, HOLLOW	90401-10006
035.	[01]	94918-00680	SCREW, HOLLOW	29352-1030A
035.	[01]	94918-00680	SCREW, HOLLOW	90401-10006-000
036.	[02]	94901-81570	WASHER, COPPER PLA	90099-01451-000
036.	[02]	94901-81570	WASHER, COPPER PLA	9 490 1815 70
036.	[02]	94901-81570	WASHER, COPPER PLA	90099-01451
038.	[01]	94901-81020	WASHER, COPPER PLA	90201-08106
038.	[01]	94901-81020	WASHER, COPPER PLA	90201-08106-000
038.	[01]	94901-81020	WASHER, COPPER PLA	22867-1500A
039.	[01]	94914-00380	O-RING	22817-1540A
039.	[01]	94914-00380	O-RING	90099-14015-000
039.	[01]	94914-00380	O-RING	90099-14015
040.	[01]	09027-01090	COVER SUB-ASSY, IN
040.	[01]	09027-01090	COVER SUB-ASSY, IN	22103-48030-000
040.	[01]	09027-01090	COVER SUB-ASSY, IN	22103-48030
040-001.	[02]	09024-30030	PACKING, AIR BLEED	22847-1890A
040-001.	[02]	09024-30030	PACKING, AIR BLEED	22121-77020-000
040-001.	[02]	09024-30030	PACKING, AIR BLEED	22121-77020
040-002.	[01]	09027-20210	GASKET, INJECTION	22153-78030
040-002.	[01]	09027-20210	GASKET, INJECTION	22153-78030-000
040-002.	[01]	09027-20210	GASKET, INJECTION	22847-1990A
040-003.	[01]	09027-50182	PROCESSING DRAWING	22563-78050
040-003.	[01]	09027-50182	PROCESSING DRAWING	22563-78050-000
040-003.	[01]	09027-50182	PROCESSING DRAWING	22127-1210A
040-004.	[02]	09027-60030	SCREW
040-004.	[02]	09027-60030	SCREW
040-004.	[02]	09027-60030	SCREW	22815-1550A
041.	[4C]	09031-10150	PLATE, TAPPET ADJU	22186-48010
041.	[4C]	09031-10030	PLATE, TAPPET ADJU	22189-46010
041.	[4C]	09031-10020	PLATE, TAPPET ADJU	22188-46010
041.	[4C]	09031-10010	PLATE, TAPPET ADJU	22187-46010
041.	[4C]	09031-10050	PLATE, TAPPET ADJU	22189-48032
041.	[4C]	09031-10060	PLATE, TAPPET ADJU	22189-48033
041.	[4C]	09031-10070	PLATE, TAPPET ADJU	22189-48034
041.	[4C]	09031-10080	PLATE, TAPPET ADJU	22189-48035
041.	[4C]	09031-10090	PLATE, TAPPET ADJU	22189-48036
041.	[4C]	09031-10100	PLATE, TAPPET ADJU	22182-46010
041.	[4C]	09031-10110	PLATE, TAPPET ADJU	22183-46010
041.	[4C]	09031-10120	PLATE, TAPPET ADJU	22184-46010
041.	[4C]	09031-10130	PLATE, TAPPET ADJU	22185-46010
041.	[4C]	09031-10140	PLATE, TAPPET ADJU	22186-46010
041.	[4C]	09031-10040	PLATE, TAPPET ADJU	22189-48031
041.	[4C]	09031-10130	PLATE, TAPPET ADJU	22185-46010-000
041.	[4C]	09031-10010	PLATE, TAPPET ADJU	22187-46010-000
041.	[4C]	09031-10020	PLATE, TAPPET ADJU	22885-1140A
041.	[4C]	09031-10030	PLATE, TAPPET ADJU	22885-1150A
041.	[4C]	09031-10040	PLATE, TAPPET ADJU	22885-1160A
041.	[4C]	09031-10050	PLATE, TAPPET ADJU	22885-1170A
041.	[4C]	09031-10150	PLATE, TAPPET ADJU	22885-1250A
041.	[4C]	09031-10140	PLATE, TAPPET ADJU	22885-1370A
041.	[4C]	09031-10130	PLATE, TAPPET ADJU	22885-1360A
041.	[4C]	09031-10120	PLATE, TAPPET ADJU	22885-1350A
041.	[4C]	09031-10110	PLATE, TAPPET ADJU	22885-1240A
041.	[4C]	09031-10100	PLATE, TAPPET ADJU	22885-1230A
041.	[4C]	09031-10090	PLATE, TAPPET ADJU	22885-1340A
041.	[4C]	09031-10080	PLATE, TAPPET ADJU	22885-1330A
041.	[4C]	09031-10070	PLATE, TAPPET ADJU	22885-1190A
041.	[4C]	09031-10010	PLATE, TAPPET ADJU	22885-1130A
041.	[4C]	09031-10060	PLATE, TAPPET ADJU	22885-1180A
041.	[4C]	09031-10020	PLATE, TAPPET ADJU	22188-46010-000
041.	[4C]	09031-10030	PLATE, TAPPET ADJU	22189-46010-000
041.	[4C]	09031-10040	PLATE, TAPPET ADJU	22189-48031-000
041.	[4C]	09031-10050	PLATE, TAPPET ADJU	22189-48032-000
041.	[4C]	09031-10060	PLATE, TAPPET ADJU	22189-48033-000
041.	[4C]	09031-10070	PLATE, TAPPET ADJU	22189-48034-000
041.	[4C]	09031-10080	PLATE, TAPPET ADJU	22189-48035-000
041.	[4C]	09031-10090	PLATE, TAPPET ADJU	22189-48036-000
041.	[4C]	09031-10100	PLATE, TAPPET ADJU	22182-46010-000
041.	[4C]	09031-10110	PLATE, TAPPET ADJU	22183-46010-000
041.	[4C]	09031-10120	PLATE, TAPPET ADJU	22184-46010-000
041.	[4C]	09031-10140	PLATE, TAPPET ADJU	22186-46010-000
041.	[4C]	09031-10150	PLATE, TAPPET ADJU	22186-48010-000
043.	[03]	90258-06001	WASHER, SPRING	94511-00600
043.	[03]	90258-06001	WASHER, SPRING	28219-1110A
043.	[03]	90258-06001	WASHER, SPRING	94511-00600-000
046.	[01]	09020-60050	GASKET, BEARING CO	0 902 0600 50
046.	[01]	09020-60190	GASKET, BEARING CO
046.	[01]	09020-60190	GASKET, BEARING CO	22195-87302-000
046.	[01]	09020-60050	GASKET, BEARING CO	22195-48030-000
046.	[01]	09020-60050	GASKET, BEARING CO	22195-48030
046.	[01]	09020-60190	GASKET, BEARING CO	22195-58050

Include in #3:

09010-04800 as BODY ASSY, INJECTI

09010-04800

Cross reference number

Part num	Firm num	Firm	Name
09010-04800	22120-5801		BODY ASSY, INJECTI
22120-58011-000		DAIHATSU	BODY ASSY, INJECTI
22120-58011		TOYOTA	BODY ASSY, INJECTI

Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Note: The standard work for the laser mark has been updated.Problem
Illustration 1 g06273667During laser marking on these Reman 3400 HEUI injectors both Prime and Non-Prime injectors were marked with NP. This caused confusion with dealers and customers. The NP is thought to mean "Non-Prime" and the injectors are Prime injector part numbers. The prime injectors marked incorrectly with NP but were built and tested to the correct Prime part number and should be used in fuel systems for prime injectors. Dealers can remove the two letters if they decide the two letters cause too much confusion.Solution
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
Illustration 2 g06273668
Prime HEUI injector
NP stands for "Non-Prime". Going forward only "Non-Prime" 3400 HEUI injectors will have the NP laser mark.

Have questions with 09010-04800?

09016-90130 BODY, INJECTION PU 09016-90120 09016-90110 09016-90100 09016-90070

04203-00033 BODY ASSY, INJECTI 04203-20112 04203-30000 09010-01010 0901001180
