09010-03070 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

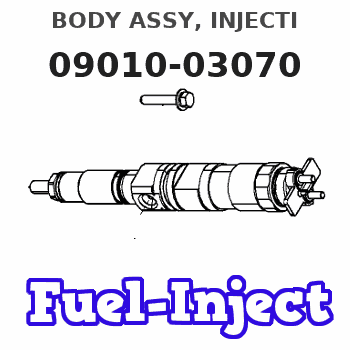

09010-03070 BODY ASSY, INJECTI
Rating:
40
Buy BODY ASSY, INJECTI 09010-03070 genuine, new aftermarket engine parts with delivery

Scheme ###:

000. [01] 09010-03070 BODY ASSY, INJECTI 30061-91500
001. [01] 19011-01580 HOUSING KIT, INJEC
001-001. [01] 94904-30010 BOLT, STUD ME702091
002. [06] 09013-10340 HOLDER, DELIVERY V
003. [06] 09013-60010 SPRING, DELIVERY V MM500666
004. [06] 09013-70100 GASKET, DELIVERY V ME702053
005. [06] 09014-00660 VALVE SUB-ASSY, IN MM500343
006. [06] 09015-00390 ELEMENT SUB-ASSY, 09015-00390
007. [06] 09015-60010 PINION, PLUNGER CO ME702058
008. [06] 09015-70010 SCREW, PLUNGER CON ME702059
009. [06] 09016-10330 SLEEVE, PLUNGER CO ME702060
010. [06] 09016-30191 SEAT, SPRING, UPR ME736080
011. [06] 09016-40010 SPRING, PUMP PLUNG ME702062
012. [06] 09016-50010 SEAT, SPRING, LWR ME702063
013. [06] 09017-00130 TAPPET SUB-ASSY,IN ME702064
013-001. [06] 09017-30010 BOLT, INJECTION PU ME702066
013-002. [06] 09017-40010 NUT, INJECTION PUM ME702067
013-003. [06] 09016-90130 BODY, INJECTION PU ME702065
013-004. [06] 09017-60010 PIN, INJECTION PUM ME702068
013-005. [06] 09017-80030 BUSHING, INJECTION ME702069
013-006. [06] 09018-10030 ROLLER, INJECTION ME702070
013-007. [06] 09017-50040 SLIDER ME736247
015. [06] 09018-90090 PLUG, INJECTION PU ME703276
016. [01] 09019-10420 CAMSHAFT, INJECTIO 09019-10420
017. [01] 94915-01760 SEAL, OIL
018. [02] 94910-10121 BEARING, ROLLER ME702096
019. [02] 09019-30020 RING, CAMSHAFT ADJ ME702074
020. [6C] 09019-40150 PLATE, CAMSHAFT SH ME703273
020. [6C] 09019-40140 PLATE, CAMSHAFT SH ME703272
020. [6C] 09019-40060 PLATE, CAMSHAFT SH ME022103
020. [6C] 09019-40050 PLATE, CAMSHAFT SH ME022102
020. [6C] 09019-40040 PLATE, CAMSHAFT SH ME022101
020. [6C] 09019-40030 PLATE, CAMSHAFT SH ME022100
020. [6C] 09019-40020 PLATE, CAMSHAFT SH ME022099
020. [6C] 09019-40010 PLATE, CAMSHAFT SH ME702075
021. [01] 94914-01390 O-RING
022. [06] 94914-02640 O-RING
024. [01] 09020-10280 COVER, BEARING
025. [01] 09021-20010 RACK, CONTROL ME702079
026. [01] 09021-50060 SCREW, RACK GUIDE ME728163
027. [02] 09022-20050 WASHER, FUEL PIPE ME703277
028. [01] 94918-00310 SCREW, HOLLOW ME702236
029. [03] 09023-00050 PLATE SET, VALVE H ME702558
030. [02] 09024-00040 BLEEDER SUB-ASSY, ME728282
030-001. [02] 09024-10010 WASHER, AIR BLEEDE ME702102
030-002. [02] 09024-20010 NIPPLE, AIR BLEEDE ME022094
030-003. [02] 09024-80010 WASHER, DRAIN SCRE ME702175
030-004. [02] 09024-40010 SCREW, AIR BLEEDER MM501930
031. [01] 09025-30300 PIPE
032. [01] 09028-80010 BAND, HOSE
033. [01] 09024-80010 WASHER, DRAIN SCRE ME702175
034. [01] 09024-90010 SCREW, DRAIN ME022112
035. [01] 19025-00050 PIPE ASSY, OVERFLO
036. [02] 09025-10010 WASHER, INJECTION ME702595
037. [01] 94918-00600 SCREW, HOLLOW MM501002
038. [01] 94914-01380 O-RING ME728286
039. [01] 09029-00250 GAUGE SUB-ASSY, IN
041. [01] 09027-01010 COVER SUB-ASSY, IN
041-001. [01] 09027-10201 PLATE, INJECTION P
041-002. [01] 09027-20250 GASKET, INJECTION ME728284
041-003. [02] 09027-60030 SCREW ME703028
041-005. [01] 09028-00040 CLEANER, INJECTION ME022089
041-006. [01] 94901-03020 WASHER ME728285
042. [01] 09036-10040 BEARING, CENTER ME702088
043. [02] 09036-60021 SCREW, GUIDE ME022106
043. [02] 91050-05351 SCREW, CROSSRECESS ME702597
044. [02] 94901-81030 WASHER, COPPER PLA ME702094
046. [04] 94904-71360 BOLT, W/WASHER ME022507
048. [04] 09020-60030 GASKET, BEARING CO ME728972

Include in #3:

09010-03070 as BODY ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09010-03070  30061-9150  BODY ASSY, INJECTI
30061-91500    MITSUBISHI BODY ASSY, INJECTI




Information:

Cylinder Head and Valve Mechanisms
Removal of Rocker Shaft Assembly
(1) Loosen the adjusting screws on the rockers by rotating each screw about one turn.(2) Loosen the short bolts on the rocker shaft brackets first, then loosen the long bolts to remove the rocker shaft assembly from the cylinder head.
Incorrect bolt loosening sequence can result in the damage to the rocker shaft brackets.
(3) Remove the pushrods.
Removal of rocker shaft assemblyDisassembly of Rocker Shaft Assembly
Arrange the disassembled rockers in the order of removal, so that the rockers can be reinstalled exactly in the opposite sequence.This ensures the same rocker shaft clearances as before.
Disassembly of rocker shaft assemblyRemoval of Cylinder Head Bolts
Remove the cylinder head bolts from the cylinder head, and lift the cylinder head vertically to detach it from the crankcase. If there is any problem in the cylinder head, before removing the bolts, examine the cylinder head bolt tightening condition by checking the bolt tightening torque with a torque wrench.
Removal of cylinder head boltRemoval of Valves and Valve Springs
Using the valve spring pusher, compress the valve spring squarely, then remove the valve cotter. If the valves are to be reused, mark them to indicate their original installation positions.
Removal of valve and valve springRemoval of Valve Stem Seals
To remove stem seals, pull with pliers. Do not reuse the removed stem seals.
Removal of valve stem sealCleaning of Cylinder Head Bottom Surface
Remove adhered gasket pieces from the bottom surface of the cylinder head, making sure not to scratch the surface. Use a scraper to remove large pieces first, then remove remaining small pieces by using an oilstone dampened with engine oil.
Cleaning of cylinder head bottom surfaceMeasurement of Piston Protrusions
Determine the amount of the protrusion of the piston. If the amount of piston protrusion does not conform to the standard, be sure to inspect and repair each bearing.(1) Determine the top dead center of the piston with a dial gage.(2) Attach a dial gage on the top surface of the crankcase, and set the indicator to zero (0).(3) Check the piston protrusion at three locations on the top surface of the piston, and obtain the average value. Subtract the amount of piston protrusion from the compressed thickness of the gasket to determine the clearance between the piston top and cylinder head.
Measurement of piston protrusion
Piston protrusions must comply with the standard to ensure proper engine performance and prevent the interference between the valves and pistons.
Flywheel
Removal of Flywheel
(1) To prevent the flywheel from rotating, have someone hold the crankshaft pulley with a wrench.(2) Remove one of the flywheel mounting bolts.
The person holding the flywheel in place should exercise utmost caution, and communicate with the person removing the flywheel during the removal process to ensure safety.
(3) Screw a safety bar (M12x1.25mm) in the threaded hole from which the bolt was removed in the above step, then remove the remaining bolts.(4) Hold the flywheel securely with both hands, jiggle it back and forth, and pull it straight out.
When removing the flywheel, be careful not to cut your hands
