09010-01311 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

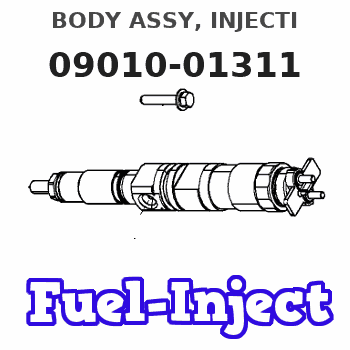

09010-01311 BODY ASSY, INJECTI
Rating:
66
Buy BODY ASSY, INJECTI 09010-01311 genuine, new aftermarket engine parts with delivery

Scheme ###:

000. [01] 09010-01311 BODY ASSY, INJECTI 22120-47012
001. [01] 09010-90780 HOUSING SUB-ASSY, 22101-47012
001-001. [03] 94904-30010 BOLT, STUD 90099-04071
002. [02] 09024-00010 BLEEDER SUB-ASSY, 22150-67010
002-001. [02] 09024-10010 WASHER, AIR BLEEDE 22119-77020
002-002. [02] 09024-20010 NIPPLE, AIR BLEEDE 22118-77020
002-003. [02] 09024-30030 PACKING, AIR BLEED 22121-77020
002-004. [02] 09024-40010 SCREW, AIR BLEEDER 22117-77020
006. [06] 09015-00411 ELEMENT SUB-ASSY, 22105-46011
007. [06] 09014-00010 VALVE SUB-ASSY, IN 22104-77020
008. [06] 09013-70010 GASKET, DELIVERY V 22149-76010
009. [06] 09013-60050 SPRING, DELIVERY V 22148-46010
010. [06] 09013-10010 HOLDER, DELIVERY V 22131-77020
011. [06] 09016-30190 SEAT, SPRING, UPR 22143-78150
012. [06] 09016-40090 SPRING, PUMP PLUNG 22144-46010
013. [06] 09016-50020 SEAT, SPRING, LWR 22145-46010
014. [06] 09017-00070 TAPPET SUB-ASSY,IN 22106-46010
016. [06] 09018-90090 PLUG, INJECTION PU 22157-48024
017. [01] 09021-20180 RACK, CONTROL 22114-47010
018. [06] 09015-60010 PINION, PLUNGER CO 22155-76010
019. [06] 09015-70010 SCREW, PLUNGER CON 22156-76010
020. [06] 09016-10330 SLEEVE, PLUNGER CO 22142-58230
021. [01] 09021-50060 SCREW, RACK GUIDE 22115-78140
022. [02] 94910-10120 BEARING, ROLLER 90099-10087
023. [01] 94915-01750 SEAL, OIL
024. [01] 09019-10120 CAMSHAFT, INJECTIO 22146-77020
025. [02] 09019-30020 RING, CAMSHAFT ADJ 22147-77020
026. [6C] 09019-40150 PLATE, CAMSHAFT SH 22166-78031
026. [6C] 09019-40140 PLATE, CAMSHAFT SH 22166-78030
026. [6C] 09019-40060 PLATE, CAMSHAFT SH 22166-76010
026. [6C] 09019-40050 PLATE, CAMSHAFT SH 22165-76010
026. [6C] 09019-40040 PLATE, CAMSHAFT SH 22164-76010
026. [6C] 09019-40030 PLATE, CAMSHAFT SH 22163-76010
026. [6C] 09019-40020 PLATE, CAMSHAFT SH 22162-76010
026. [6C] 09019-40010 PLATE, CAMSHAFT SH 22161-76010
027. [02] 94914-00060 O-RING 90099-14002
028. [01] 09020-40111 FLANGE, INJECTION 22181-48021
029. [04] 94900-72471 SCREW, W/WASHER 90099-00928
030. [01] 90258-08001 WASHER, SPRING 94511-00800
031. [01] 09024-90010 SCREW, DRAIN 22122-77020
032. [01] 09024-80010 WASHER, DRAIN SCRE 22378-76010
033. [01] 94918-00600 SCREW, HOLLOW
034. [02] 09025-10010 WASHER, INJECTION 22124-77020
035. [01] 19025-00080 PIPE ASSY, OVERFLO
035-001. [01] 09025-00030 NIPPLE SUB-ASSY, O 22197-46010
035-002. [01] 94907-21030 RING, SNAP
035-003. [01] 09025-70051 PIPE, OVER FLOW 22198-46020
038. [01] 94918-00310 SCREW, HOLLOW 90099-18010
039. [02] 09022-20070 WASHER, FUEL PIPE 94712-77121
041. [02] 09023-00031 PLATE SET, VALVE H 22102-77021
042. [03] 90160-06051 NUT, HEXAGON 90092-10101
043. [03] 90258-06001 WASHER, SPRING 94511-00600
044. [01] 09045-30011 STAY, INJECTION PU 22177-47010
045. [01] 09029-00321 GAUGE SUB-ASSY, IN 22112-56011
046. [01] 09027-00441 COVER SUB-ASSY, IN 22103-76051
046-001. [01] 09028-00060 CLEANER, INJECTION 22151-56010
046-002. [01] 09024-10010 WASHER, AIR BLEEDE 22119-77020
046-003. [01] 09027-20220 GASKET, INJECTION
046-004. [01] 09027-10211 PLATE, INJECTION P
046-005. [02] 09024-30030 PACKING, AIR BLEED 22121-77020
046-006. [02] 09027-60030 SCREW
047. [01] 94914-00380 O-RING 90099-14015
048. [02] 91410-08141 BOLT, W/WASHER 91611-40814
049. [01] 94900-62961 SCREW 90099-00894
052. [6C] 09031-10090 PLATE, TAPPET ADJU 22189-48036
052. [6C] 09031-10100 PLATE, TAPPET ADJU 22182-46010
052. [6C] 09031-10110 PLATE, TAPPET ADJU 22183-46010
052. [6C] 09031-10120 PLATE, TAPPET ADJU 22184-46010
052. [6C] 09031-10130 PLATE, TAPPET ADJU 22185-46010
052. [6C] 09031-10140 PLATE, TAPPET ADJU 22186-46010
052. [6C] 09031-10080 PLATE, TAPPET ADJU 22189-48035
052. [6C] 09031-10070 PLATE, TAPPET ADJU 22189-48034
052. [6C] 09031-10060 PLATE, TAPPET ADJU 22189-48033
052. [6C] 09031-10050 PLATE, TAPPET ADJU 22189-48032
052. [6C] 09031-10040 PLATE, TAPPET ADJU 22189-48031
052. [6C] 09031-10030 PLATE, TAPPET ADJU 22189-46010
052. [6C] 09031-10020 PLATE, TAPPET ADJU 22188-46010
052. [6C] 09031-10010 PLATE, TAPPET ADJU 22187-46010
052. [6C] 09031-10150 PLATE, TAPPET ADJU 22186-48010

Include in #3:

09000-03341 as BODY ASSY, INJECTI
09010-01311

Cross reference number



Part num Firm num Firm Name
09010-01311  22120-4701  BODY ASSY, INJECTI




Information:

Measurement of Distortion of Cylinder Head Bottom Surface
Place a straight edge on the bottom surface of the cylinder head, measure the amount of surface distortion using feeler gages, and, if the limit value is exceeded, reface the surface with a surface grinder.
Measurement of distortion of cylinder head bottom surfaceMeasurement of Rocker Arm Inside Diameter and Rocker Shaft Diameter
Measure the inside diameter of the rocker arm (bushing) and the diameter of the rocker shaft to calculate the clearance between the rocker arm and shaft, and replace the rocker arm if the clearance is within the limit value. If the limit value is exceeded, replace the rocker arm and shaft.
Measurement of rocker arm inside diameter and rocker shaft diameterMeasurement of Valve Spring Perpendicularity and Free Length
Inspect each valve spring for perpendicularity and free length, and, if the limit value is exceeded, replace the valve.
Measurement of valve spring perpendicularity and free lengthMeasurement of Pushrod Deflection
If the pushrod defection exceeds the standard value, replace the pushrod. The standard value above is based on dial gage reading.
Measurement of pushrod deflectionMeasurement of Valve Stem Diameter
If the stem diameter exceeds the limit value, replace the valve stem. Also replace the valve stem if it is unevenly worn.
Measurement of valve stem diameterMeasurement of Clearance Between Valve Stem and Valve Guide
Measure the valve guide bore with and internal bore micrometer.Because the valve guide wears more rapidly at the upper and lower ends, measure the diameter at both ends in two crossing directions. If the limit is exceeded, replace worn parts. Remove carbon deposits from the valve and valve guide before measuring the clearance.
Measurement of valve guide inside diameter
Removal of valve guideReplacement of Valve Guides
(1) To remove the valve guides, use the valve guide remover. (2) To press-fit the valve guides, use the valve guide installer and a press.
Be sure to use the valve guide installer in order to drive the valve guide to the prescribed depth.
(3) After installing the valve guide, insert a new valve and check the smoothness of the movement.(4) When the valve guide is replaced, check the contact of the valve with the valve seat.
Installation of valve guideInspection of Valve Faces
Coat the valve face lightly with red lead, and use the valve lapper to inspect the valve contact with the valve seat. If the contact is not uniform and the valve is defective, or if a limit is exceeded, correct or replace the valve and valve seat.
Inspection of valve face (a) Inspect the valve face after the valve guide is inspected or replaced.(b) When pressing the valve coated with red lead against the valve seat, do not rotate the valve.(c) After the valve or valve seat is corrected or replaced, lap the valve against the valve seat.
Valve seat contact with seat
Valve contact with seatReplacement of Valve Seats
(1) Removal of valve seatWeld a stud or bar to the valve seat, insert a shaft into the valve guide bore from the top of the cylinder head, and drive the seat off the cylinder head. When welding
