Information pump assy, injecti
Nozzle:
0935001010
Rating:
Components :
| 001. | PUMP ASSY, INJECTI | 09000-07330 |

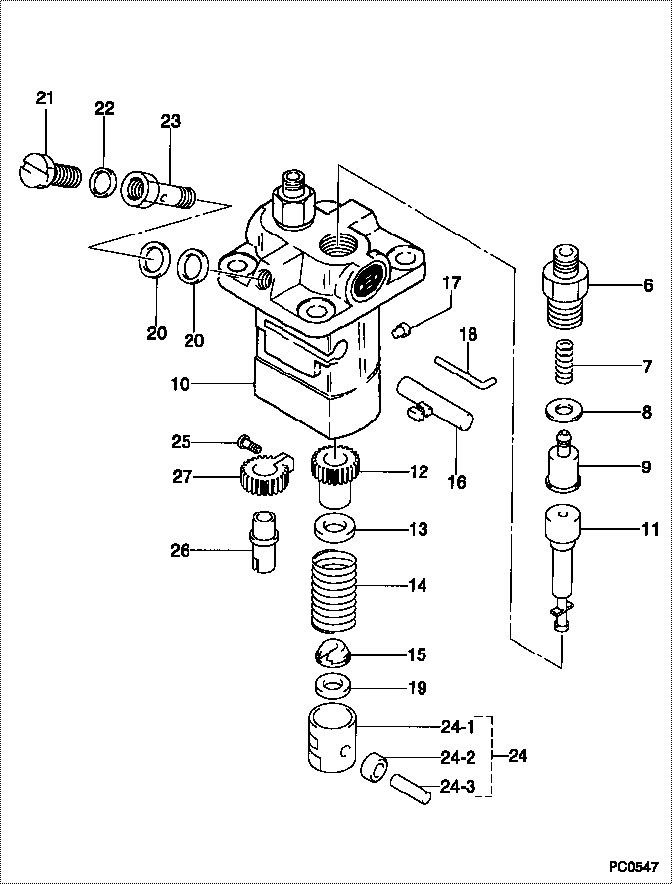

Scheme ###:
| 000. | [01] | 09000-07330 | PUMP ASSY, INJECTI | |
| 006. | [02] | 09013-10031 | HOLDER, DELIVERY V | 14109-51221 |
| 007. | [02] | 09013-60150 | SPRING, DELIVERY V | 14412-51231 |
| 008. | [02] | 09013-70020 | GASKET, DELIVERY V | 15021-51241 |
| 009. | [02] | 09014-00030 | VALVE SUB-ASSY, IN | 15021-51031 |
| 010. | [01] | 09011-00801 | HOUSING SUB-ASSY, | |
| 011. | [02] | 09015-01291 | ELEMENT SUB-ASSY, | 14611-51051 |
| 012. | [02] | 09016-10110 | SLEEVE, PLUNGER CO | 14109-51390 |
| 013. | [02] | 09016-30080 | SEAT, SPRING, UPR | 15221-51271 |
| 014. | [02] | 09016-40041 | SPRING, PUMP PLUNG | 14109-51280 |
| 015. | [02] | 09030-10060 | SEAT, SPRING, LWR | 15021-51291 |
| 016. | [01] | 09021-00170 | RACK ASSY, CONTROL | 14412-51061 |
| 017. | [02] | 09018-30010 | PIN, INJECTION PUM | 14109-51250 |
| 018. | [01] | 09018-50010 | PIN, CLAMP | 15021-51431 |
| 019. | [1C] | 09031-10170 | PLATE, TAPPET ADJU | |
| 019. | [1C] | 09031-10160 | PLATE, TAPPET ADJU | |
| 019. | [1C] | 09031-10140 | PLATE, TAPPET ADJU | |
| 019. | [1C] | 09031-10130 | PLATE, TAPPET ADJU | 15221-51491 |
| 019. | [1C] | 09031-10120 | PLATE, TAPPET ADJU | |
| 019. | [1C] | 09031-10110 | PLATE, TAPPET ADJU | |
| 019. | [1C] | 09031-10010 | PLATE, TAPPET ADJU | 14109-51301 |
| 020. | [02] | 09024-10010 | WASHER, AIR BLEEDE | 15221-96651 |
| 021. | [01] | 09024-40080 | SCREW, AIR BLEEDER | 15221-51351 |
| 022. | [01] | 94901-81020 | WASHER, COPPER PLA | 15221-96661 |
| 023. | [01] | 09024-50080 | SCREW, HOLLOW | 15221-51321 |
| 024. | [02] | 09017-00171 | TAPPET SUB-ASSY,IN | 15221-51071 |
| 024-001. | [02] | 09017-10022 | TAPPET, INJECTION | 15021-51990 |
| 024-002. | [02] | 09217-60010 | ROLLER, FEED PUMP | 15109-52931 |
| 024-003. | [02] | 09017-60020 | PIN, INJECTION PUM | 15021-51970 |
| 025. | [01] | 09015-70010 | SCREW, PLUNGER CON | 14412-51441 |
| 026. | [01] | 09016-10230 | SLEEVE, PLUNGER CO | 14412-51371 |
| 027. | [01] | 09015-60021 | PINION, PLUNGER CO | 15021-51411 |
Include in #3:
09000-07330
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 09000-07330 | PUMP ASSY, INJECTI |
Information:
09Dec2014
U-741
A-545
D-648
O-641
After Failure Only
PRODUCT SUPPORT PROGRAM FOR REPLACING THE INJECTOR ROCKER ARMS ON CERTAIN 16M 3 MOTOR GRADERS, 349E, AND 349F EXCAVATORS, 621H, 621K, 623H, 623K, 627H, AND 627K WHEEL TRACTOR-SCRAPER, 730C ARTICULATED TRUCKS, 980K, 980M, AND 982M WHEEL LOADERS
1123 PS52832
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
This Program can only be administered after a failure occurs.The decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS52832" as the Part Numberand "7755" as the Group Number. Use "96" as the Warranty Claim Description Code and use "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
31Dec2016
PROBLEM
The injector rocker arm may fail failure on certain C13 powered 16M 3 Motor graders, 349E, and 349F Excavators, 621H, 621K, 623H, 623K, 627H, and 627K Wheel Tractor-Scraper, 730C Articulated Trucks, 980K, 980M, and 982M Wheel Loaders.
AFFECTED PRODUCT
Model Identification Number
*******Group 1*******
621H DBK00101-00131
621H OEM HKK00101-00139
623H DBF00102-00175
627H DBW00102-00348
*******Group 2*******
980K GTZ00129-00891, 9001-9002
W7K00288-02465
980K OEM NEP00101-00114
*******Group 3*******
349E FJB00179-00194
RGH00146-00186
349E HVG UHD OEM JAE00121-00125
349E L KFX00141-00597
MPZ00206-00828
MZW00211-00220
SPG00193-00218
TFG00211-01135
WHZ00136-00145
349E LC-VG DGE00228-00362
KCN00191-00354
