Information damper
BOSCH
9 423 618 780
9423618780
ZEXEL
156640-1120
1566401120
MITSUBISHI
ME740408
me740408
Rating:

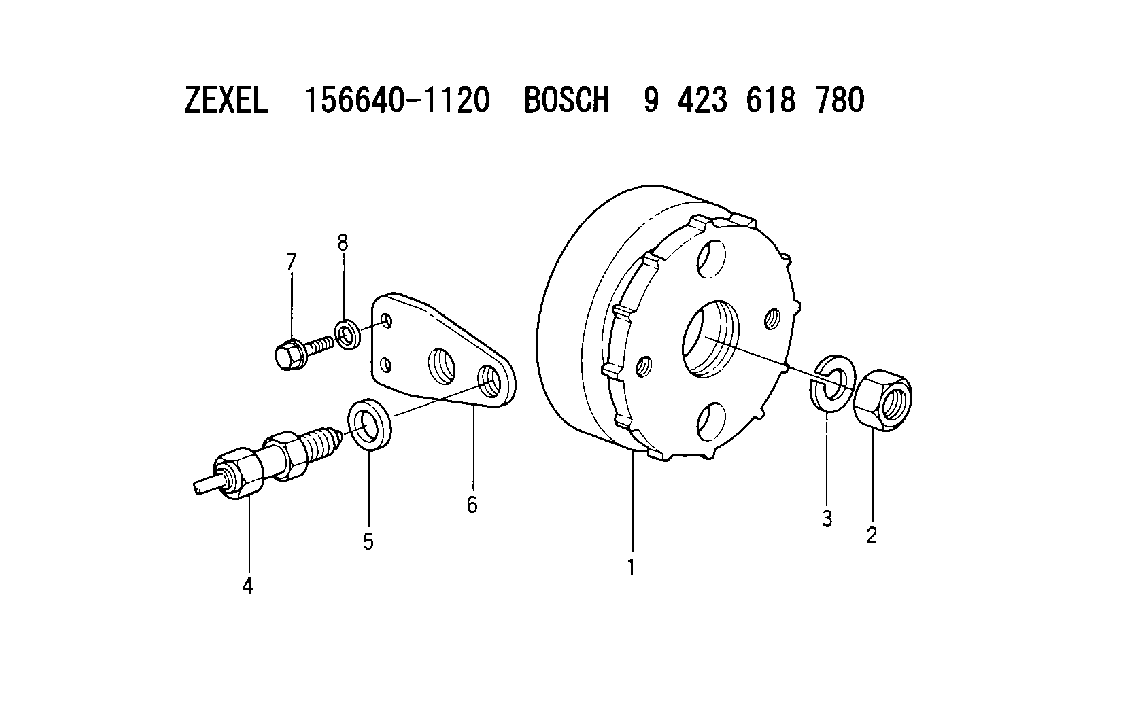

Scheme ###:
| 1. | [1] | 156640-0600 | DAMPER |
| 2. | [1] | 013121-8020 | UNION NUT M18P1.5H16 |
| 3. | [1] | 023641-8410 | LOCKING WASHER |
| 4. | [1] | 479770-5120 | PULSE GENERATOR |
| 5. | [1] | 139316-0000 | PLAIN WASHER D25&16.5T5 |
| 6. | [1] | 156914-3200 | PLATE |
| 7. | [2] | 020118-2540 | BLEEDER SCREW |
| 8. | [2] | 014020-8140 | PLAIN WASHER D16&8.5T1.2 |
Cross reference number
Zexel num
Bosch num
Firm num
Name
