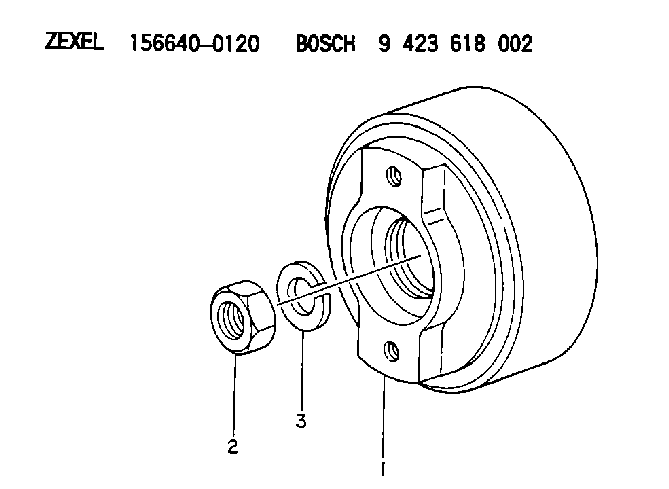

156640-0120 ZEXEL 9 423 618 002 BOSCH DAMPER 9423618002 1566400120 me731954

PTO Mode Speed Limit (PTO)- Maximum vehicle speed at which the PTO Governor will function (between 0 and 15 mph [0 and 24 km/h]). If vehicle speed signal exceeds the programmed value, the control will exit the PTO Mode. PTO Mode RPM Limit (PTO RPM)- Maximum engine rpm attainable in the PTO Mode. The rpm limits are between 600 and 2300 rpm. PTO Engine Speed Ramp Rate- Engine rpm (speed) rate of increase. This parameter determines ACCEL, DECEL and RESUME PTO Engine rates of increase/decrease. The programmable limits are between 50 rpm/second and 500 rpm/second. Low Gears #1 RPM Limit (LoGr #1)- Engine speed is limited below Low Gear #1 Turn Off Speed. The engine will hesitate at this speed then allow slow acceleration up to Top Engine Limit (TEL). This is to encourage shifting to the next higher gear. The limits are between 1100 and 2300 rpm. Low Gears #1 Turn Off (Lo Gr Off)- The vehicle speed at which LoGr #1 RPM Limit is no longer in effect (turns off between 3 and 30 mph [5 and 48 km/h]). This parameter must be matched with Low Gear #1 RPM Limit to the specific drive train for best performance. Low Gears #2 RPM Limit (LoGr #2)- Similar to Low Gears #1 RPM Limit and typically programmed at a slightly higher rpm. The limits are between 1100 and 2300 rpm. Low Gears #2 Turn Off (LoGr TO)- Similar to Low Gears #1 Turn Off and typically programmed at a slightly higher rpm. The limits are between 5 and 50 mph [8 and 80 km/h]). High Gears RPM Limit (HiGr RPM)- The rpm limit when the vehicle speed is above High Gear Turn On Speed. This is a "hard" limit; the engine will not power above this limit to encourage shifting up into overdrive or top gear. The limits are between 1300 and 2300 rpm. High Gear Turn On Speed (HiGr On)- Vehicle speed where High Gear RPM Limit turns on. This parameter must be matched to the specific drive train for best performance. The limits are between 30 and 127 mph (48 and 204 km/h). Top Engine Limit (TEL)- Maximum allowable engine rpm when the engine is under load. The engine will still achieve Rated rpm (speed) under no load conditions. This parameter is dependent upon Rating Number, with some Rating Numbers allowing no or little variation. The limits are between 1600 and 3000 rpm. Low Engine Idle rpm- Minimum programmed engine rpm (between 600 and 750 rpm). Vehicle Speed Limit- Top vehicle speed the ECM will permit. The ECM will shut off fuel above this speed. The limits are between 30 and 127 mph (48 and 204 km/h and/or gear limit of vehicle. Engine RPM at Vehicle Speed Limit (Eng RPM at VSL)- The maximum rpm that the engine will operate when the vehicle speed signal reaches VSL, or when the ECM detects a vehicle speed signal problem (the ECM will limit engine to this rpm
