Information coupling plate
BOSCH
9 423 617 866
9423617866
ZEXEL
156637-8420
1566378420
Rating:

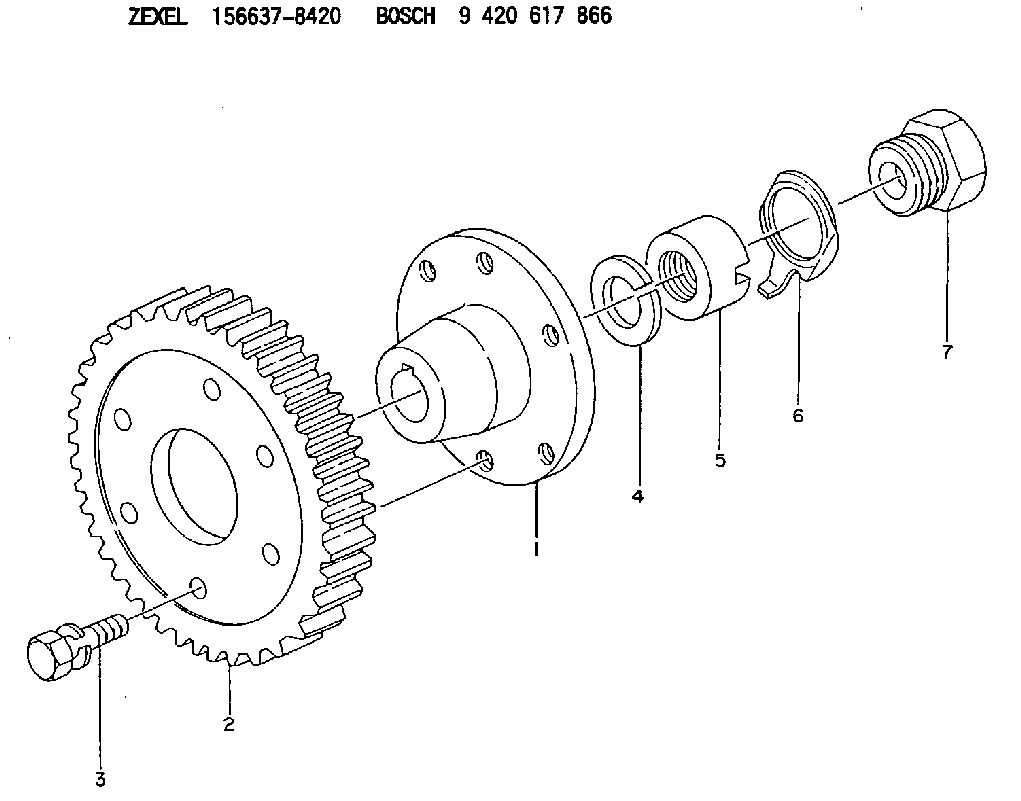

Scheme ###:
| 1. | [1] | 156636-5800 | COUPLING PLATE |
| 2. | [1] | 156221-3700 | TOOTHED GEAR |
| 3. | [6] | 139006-4300 | BLEEDER SCREW |
| 4. | [1] | 023641-2410 | LOCKING WASHER |
| 5. | [1] | 029231-2070 | UNION NUT |
| 6. | [1] | 156210-1300 | LOCKING LEVER |
| 7. | [1] | 029002-4010 | BLEEDER SCREW |
Include in #1:
101492-0421
as COUPLING PLATE
Cross reference number
Zexel num
Bosch num
Firm num
Name
