Information coupling plate
ZEXEL
156637-2720
1566372720
ISUZU
8944760890
8944760890
Rating:

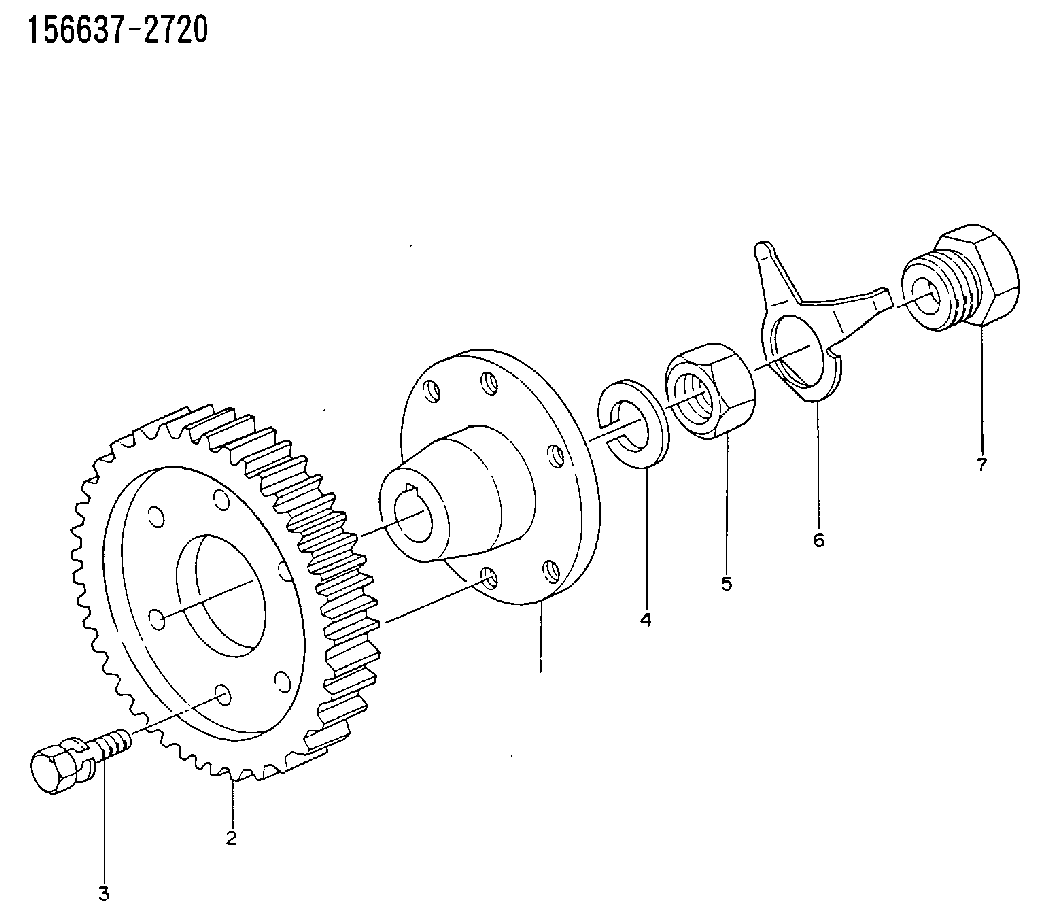

Scheme ###:
| 1. | [1] | 156612-1100 | COUPLING PLATE |
| 2. | [1] | 156211-7100 | TOOTHED GEAR |
| 3. | [6] | 020006-1470 | BLEEDER SCREW |
| 4. | [1] | 023641-2410 | LOCKING WASHER |
| 5. | [1] | 029231-2070 | UNION NUT |
| 6. | [1] | 156210-1600 | LOCKING LEVER |
| 7. | [1] | 029002-4010 | BLEEDER SCREW |
Include in #1:
101402-0791
as COUPLING PLATE
Cross reference number
Zexel num
Bosch num
Firm num
Name
