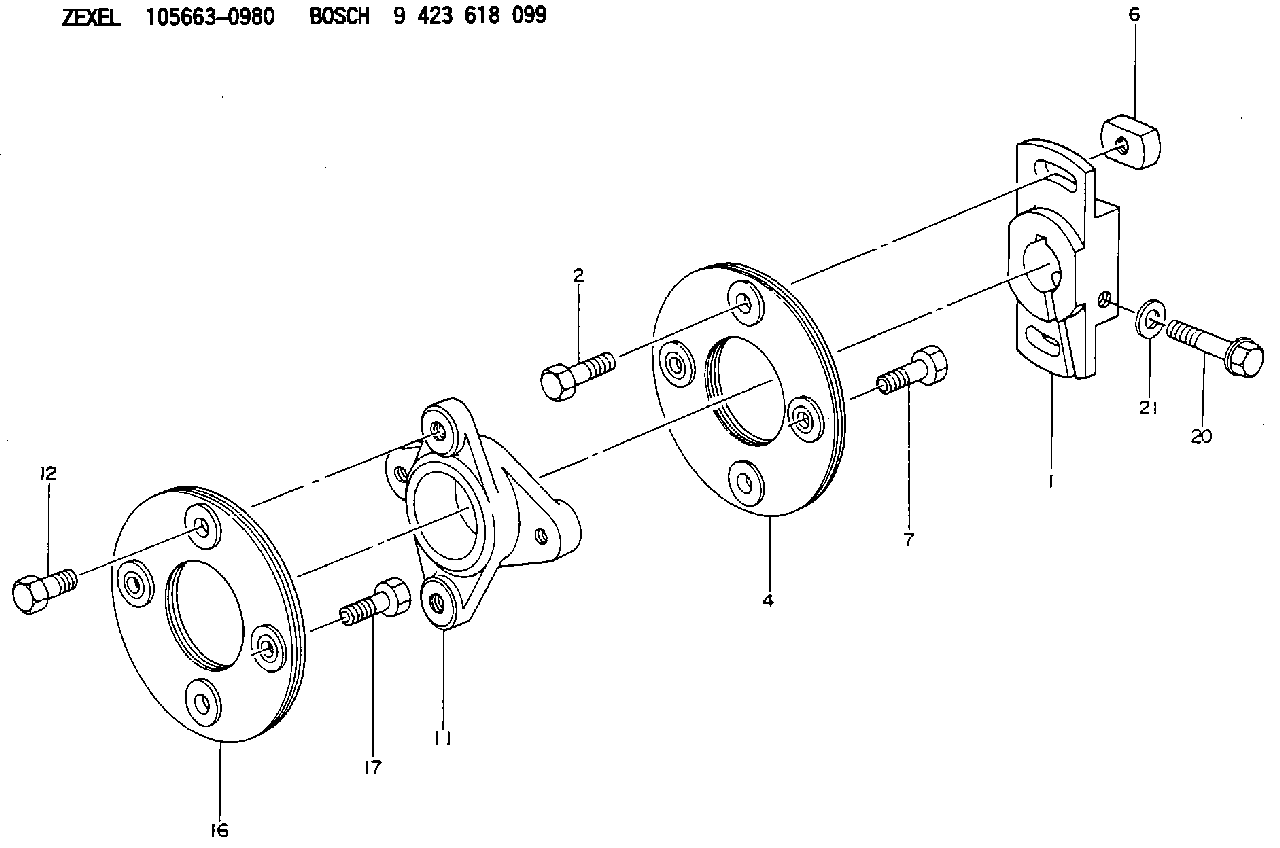

105663-0980 ZEXEL 9 423 618 099 BOSCH COUPLING PLATE 9423618099 1056630980 226002320a

If equipped, the PEEC system is capable of being programmed for several customer specified parameters. These parameters are generally programmed so the vehicle will achieve optimum fuel efficiency and operator convenience.The standard engine includes the features of programmable low idle and top engine limiting (TEL). Cruise control, PTO governing, vehicle speed limiting, low and high gears engine rpm limiting (progressive shift control), retarder coast/latch and idle shutdown timer are also available depending on OEM truck configurations.Low idle and top engine rpm limits are customer programmable to promote maximum fuel efficiency. The 3406B PEEC system allows the owner to select power ratings within a "family" to more efficiently match the vehicle to the application.The customer specified parameters and a brief explanation of each are as follows:1. Engine Power Rating - The 3406B PEEC engine is designed to provide full rated power over a large range of engine speeds. For example, the Caterpillar 3406B PEEC Truck Engine ratings for the 1991 1 are: * 310 hp (231 kw) @ 1800 rpm* 310 hp (231 kw) @ 1900 rpm* 330 hp (246 kW) @ 1800 rpm* 350 hp (261 kW) @ 1800 rpm* 350 hp (261 kW) @ 1800 rpm (Multi-torque)* 400 hp (298 kW) @ 1800 rpm* 425 hp (317 kW) @ 1800 rpm* 425 hp (317 kW) @ 1900 rpm* 460 hp (343 kW) @ 1800 rpm* 350 hp (261 kW) @ 2000 rpm* 400 hp (298 kW) @ 2000 rpm* 425 hp (317 kW) @ 2000 rpm* 460 hp (343 kw) @ 1900 rpm*Since EPA, CARB and Canadian emission regulations are identical for 1990 and 1991, no 49-state ratings are required. 2. Vehicle Identification Number - The owner's description, or unit number of the vehicle. 3. PTO Vehicle Speed Limit (PTO VSL) - Maximum vehicle speed at which the PTO Governor will function.4. PTO Engine RPM Limit (PTO RPM) - Maximum engine rpm attainable using the CRUISE CONTROL switches while the vehicle is operated below the PTO VSL (generally used for maximum rpm limit for overnight idling). 5. Low Gears #1 RPM Limit (LoGr #1) - The rpm at which the engine is limited in the lowest gears.6. Low Gears #2 RPM Limit (LoGr #2) - The rpm at which the engine is limited in a secondary gear range.7. Low Gears Turn Off Speed (LoGr Off Limits) - The vehicle speeds at which LoGr #1 and LoGr #2 turn off. 8. High Gears rpm Limit (HiGr rpm) - The rpm at which the engine is limited in the higher gears (generally used to encourage shifting into higher gears).9. High Gear Turn On Speed (HiGr On) - The vehicle speed at which High Gear rpm is in effect.10. Top Engine Limit (TEL) - Maximum allowable engine rpm generally set at rated rpm [rpm at which maximum power is developed] plus (+) 20 rpm. 11. Engine rpm at Vehicle Speed Limit (Eng rpm at VSL) - The engine rpm achieved in high (top) gear at VSL. Interruption of the
