Information coupling plate
BOSCH
9 423 617 224
9423617224
ZEXEL
105662-0670
1056620670
Rating:

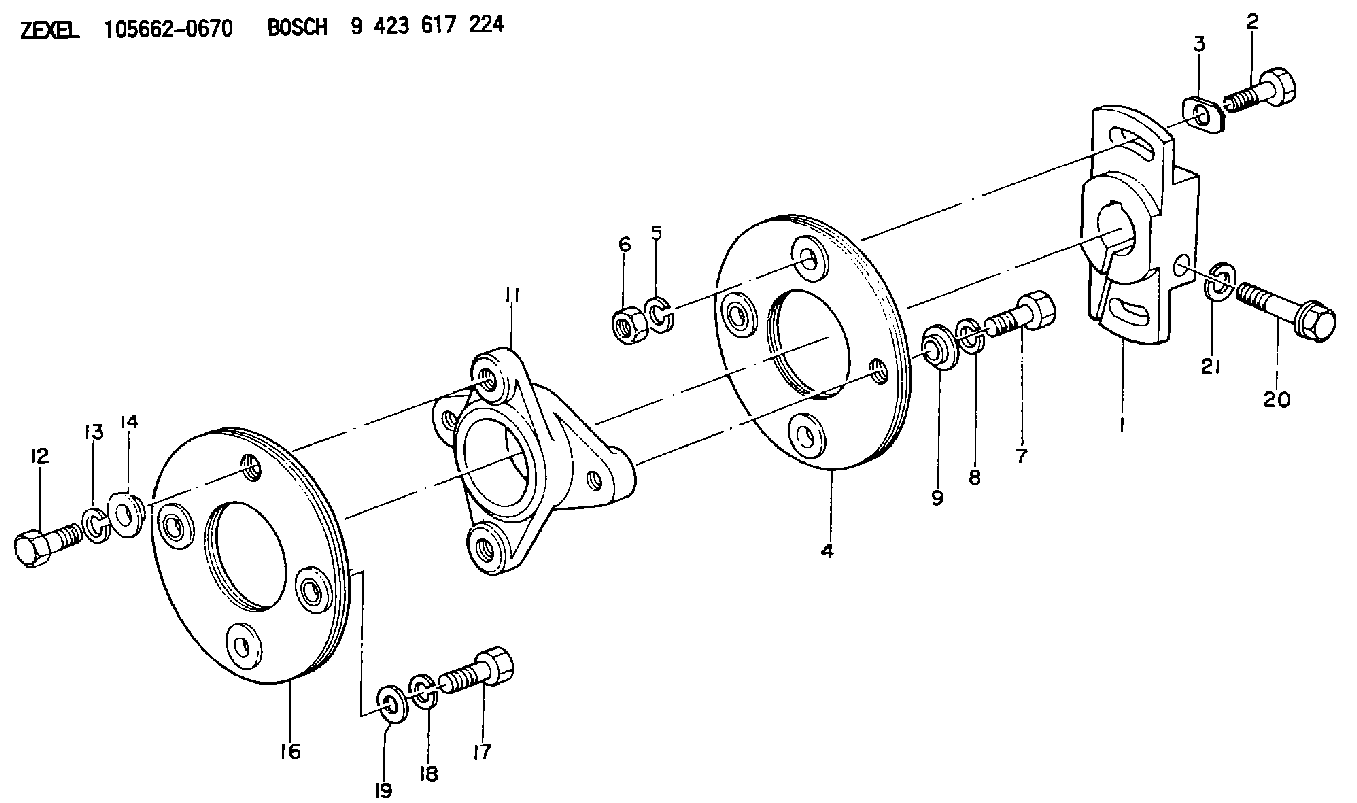

Scheme ###:
| 1. | [1] | 156630-0700 | COUPLING PLATE |
| 2. | [2] | 156603-4400 | BLEEDER SCREW |
| 3. | [2] | 156615-0700 | PLAIN WASHER |
| 4. | [1] | 156605-1120 | PLATE |
| 5. | [2] | 014110-8440 | LOCKING WASHER |
| 6. | [2] | 029200-8050 | UNION NUT |
| 7. | [2] | 156633-0900 | BLEEDER SCREW |
| 8. | [2] | 014110-8440 | LOCKING WASHER |
| 9. | [2] | 156622-1100 | BUSHING |
| 11. | [1] | 156609-4400 | COUPLING |
| 12. | [2] | 156633-0900 | BLEEDER SCREW |
| 13. | [2] | 014110-8440 | LOCKING WASHER |
| 14. | [2] | 156622-1100 | BUSHING |
| 16. | [1] | 156605-4220 | PLATE |
| 17. | [2] | 156603-9700 | BLEEDER SCREW |
| 18. | [2] | 014110-8440 | LOCKING WASHER |
| 19. | [2] | 029300-8060 | PLAIN WASHER D16&8.2T2 |
| 20. | [1] | 156633-1200 | BLEEDER SCREW |
| 21. | [1] | 014111-0440 | LOCKING WASHER |
Include in #1:
101602-3232
as COUPLING PLATE
Cross reference number
Zexel num
Bosch num
Firm num
Name
105662-0670
9 423 617 224
COUPLING PLATE
K 14GT COUPLING COUP
K 14GT COUPLING COUP
