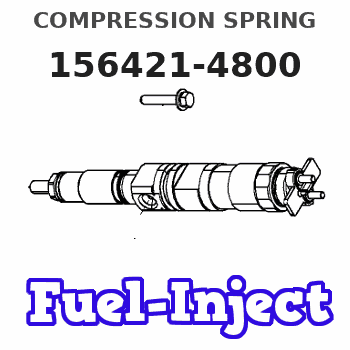

156421-4800 ZEXEL 9 423 610 662 BOSCH COMPRESSION SPRING 9423610662 1564214800 1157497050

PARTS NEEDED
Qty
Part Number Description
1 4742607 VALVE-BALL
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 1% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Replace the existing DEF valve assembly with a new 474-2607 Ball Valve. Refer to Image1.
Note: The 6S-8620 Clamps are reusable. Tighten the clamp to a specified torque of 1.4 +/- 0.3 N.m (12.4 +/- 2.7 lb-in).
Note: Insert the hose up to the root of the valve tube.
Note: Place the clamp on the straight portion of the hose by the bead of the valve tube.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-3000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
3001-6000 hrs,
25-48 mo 33.0% 50.0% 0.0% 0.0% 50.0% 50.0%
This is a 3.0-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
