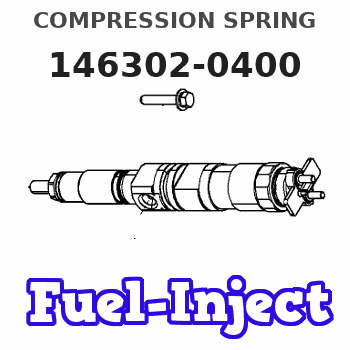

Information compression spring
BOSCH
9 461 610 143
9461610143
ZEXEL
146302-0400
1463020400
ISUZU
8942274940
8942274940
Rating:
Include in ###:
Number on scheme 34
1047404220
as COMPRESSION SPRING
K=3.10KG/MM
1047481000
as COMPRESSION SPRING
1047494030
as COMPRESSION SPRING
K=3.1
1047494050
as COMPRESSION SPRING
1047494131
as COMPRESSION SPRING
K=3.10KG/MM
1047494140
as COMPRESSION SPRING
K=3.1
1047494141
as COMPRESSION SPRING
1047496331
as COMPRESSION SPRING
K=3.1
1047610000
as COMPRESSION SPRING
1047610001
as COMPRESSION SPRING
K=3.1
Cross reference number
Zexel num
Bosch num
Firm num
Name
9 461 610 143
16825W2500 NISSAN
COMPRESSION SPRING
* C 11FV parts(VE) Others
* C 11FV parts(VE) Others
9 461 610 143
16621R8100 NISSAN-DIESEL
COMPRESSION SPRING
* C 11FV parts(VE) Others
* C 11FV parts(VE) Others
Information:
Table 1
Repair Kit Part Numbers for Quick Connect DEF Line Fittings
473-2053 5/16"-90 Degree Kit
473-2055 5/16"- Straight Kit
473-2056 3/8"-90 Degree Kit
473-2057 3/8"- Straight Kit Rework Procedure
Table 2
Required Tools
Part Number Part Name
1U-7648 Tube Cutter
Illustration 1 g06433660
Cut the connector end on the corrugated section with the cutter.
Illustration 2 g06433665
Cut the two wires with a tie cutter.
Illustration 3 g06433668
Use a knife or sharp blade to cut the outer sheathing off. Ensure not to cut or damage the inner fluid hose.
Illustration 4 g06433669
Install the hose clamp provided first before installing the connector. Use appropriate size (3/8th or 5/16th) and type (90 degree or straight) fitting.
Illustration 5 g06433672
Fasten the clamp until the two jaws are either in contact or about 2 to 3 mm (0.08 to 0.1 inch) apart.
