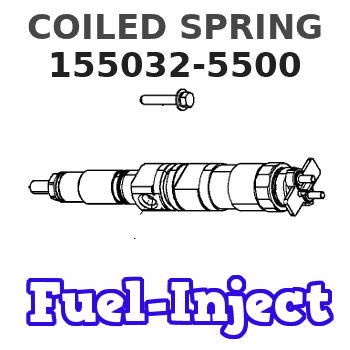

155032-5500 ZEXEL 9 421 611 245 BOSCH COILED SPRING 9421611245 1550325500 8941392650

ACTION REQUIRED
Before completing this Rework Procedure, please review the safety actions in the Operation and Maintenance Manual for your machine.
Choose one of the following actions:
If electronic unit fuel injectors have not failed, reflash the engine ECM with the new software. The new software offers enhanced protection to the fuel system if the fuel/water separator is not drained of water when the Water Separator Full Indicator is displayed.
If electronic unit fuel injectors have failed, replace the injectors and reflash the engine ECM with the new software.
For detailed instructions on removing and installing the injectors, refer to Disassembly and Assembly, UENR0633, "Electronic Unit Injector - Remove" and "Electronic Unit Injector - Install".
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 1*******
0-3000 hrs,
0-36 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 1.0-hour job for Group 1
1 hour to update the software. An additional 3 hours is allowed to replace the injectors, after failure.
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 2*******
0-3000 hrs,
0-36 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 1.0-hour job for Group 2
1 hour to update the software. An additional 3 hours is allowed to replace the injectors, after failure.
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
