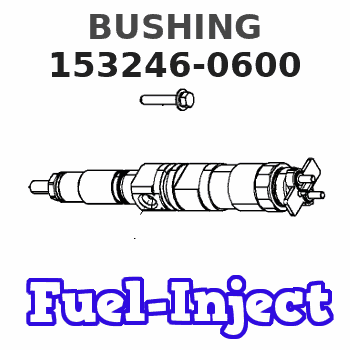

153246-0600 ZEXEL BUSHING Cross 1532460600 me717410

AFFECTED PRODUCT
Model Identification Number
C9 MTB00101-00106, 109-190, 197-199, 1000-1001, 1003-1005, 1007-1221, 1227-1387, 1396-1429, 1431-1464, 1467-1550, 1553-2020
PARTS NEEDED
Qty
Part Number Description
6 1093207 SEAL-O-RING
12 1482903 SEAL-O-RING
6 1495240 RING-BACKUP
6 2271200 SLEEVE-INJECTOR
6 2930730 RING-BACKUP
6 3107255 SEAL-O-RING
6 3107257 SEAL-O-RING
ACTION REQUIRED
Follow Special Instruction REHS3798 for proper installation of injector sleeve o-rings.
Injector o-rings need to be replaced when the injector is removed to perform sleeve o-ring replacement. Reference SEBD6792 for correct orientation of injector o-rings.
OWNER NOTIFICATION
U.S. and Canadian owners will receive the attached Owner Notification.
SERVICE CLAIM ALLOWANCES
Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
100% 100% 0% 0% 0% 0%
This is a 9.6-hour job
*Dealer to perform most economical repair*
Description_____________SMCS Code_________Hours
Wash____________________1290-074__________0.3
R&I Injectors___________1290-010-S________4.2
Remove Sleeve___________1713-011__________1.3
Clean Sleeve Bore_______1713-70-BO________0.8
Install sleeve seals____1713-012-SA_______0.8
Install Sleeve set______1713-012-S________1.7
Test After______________1290-030__________0.5
*Exception may be considered and claimed depending on chassis type*
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
MAKE EVERY EFFORT TO COMPLETE THIS PROGRAM AS SOON AS POSSIBLE.
COPY OF OWNER NOTIFICATION FOR U.S. AND CANADIAN OWNERS
XYZ Corporation
3240 Arrow Drive
Anywhere, YZ 99999
PRIORITY - PRODUCT IMPROVEMENT PROGRAM FOR REPLACING INJECTOR SLEEVE O-RINGS ON CERTAIN C9 MTB ON-HIGHWAY TRUCK ENGINES
MODELS INVOLVED - C9 Mass Transit Bus Engines
Dear Caterpillar Product Owner:
The injector sleeve o-rings need to be replaced on certain C9 MTB On-Highway truck engines. The existing o-rings can cause fuel to enter the coolant system if failure occurs. You will not be charged for the service performed.
Contact your local Caterpillar dealer immediately to schedule this service. The dealer will advise you of the time required to complete this service.
Please refer the dealer to their Service Letter dated 20Sep2007 when scheduling this service.
We regret the inconvenience this may cause you, but urge you to have this service performed as soon as possible to prevent unscheduled downtime.
Caterpillar Inc.
Identification #(s)
Attached to 20Sep2007 Service Letter
