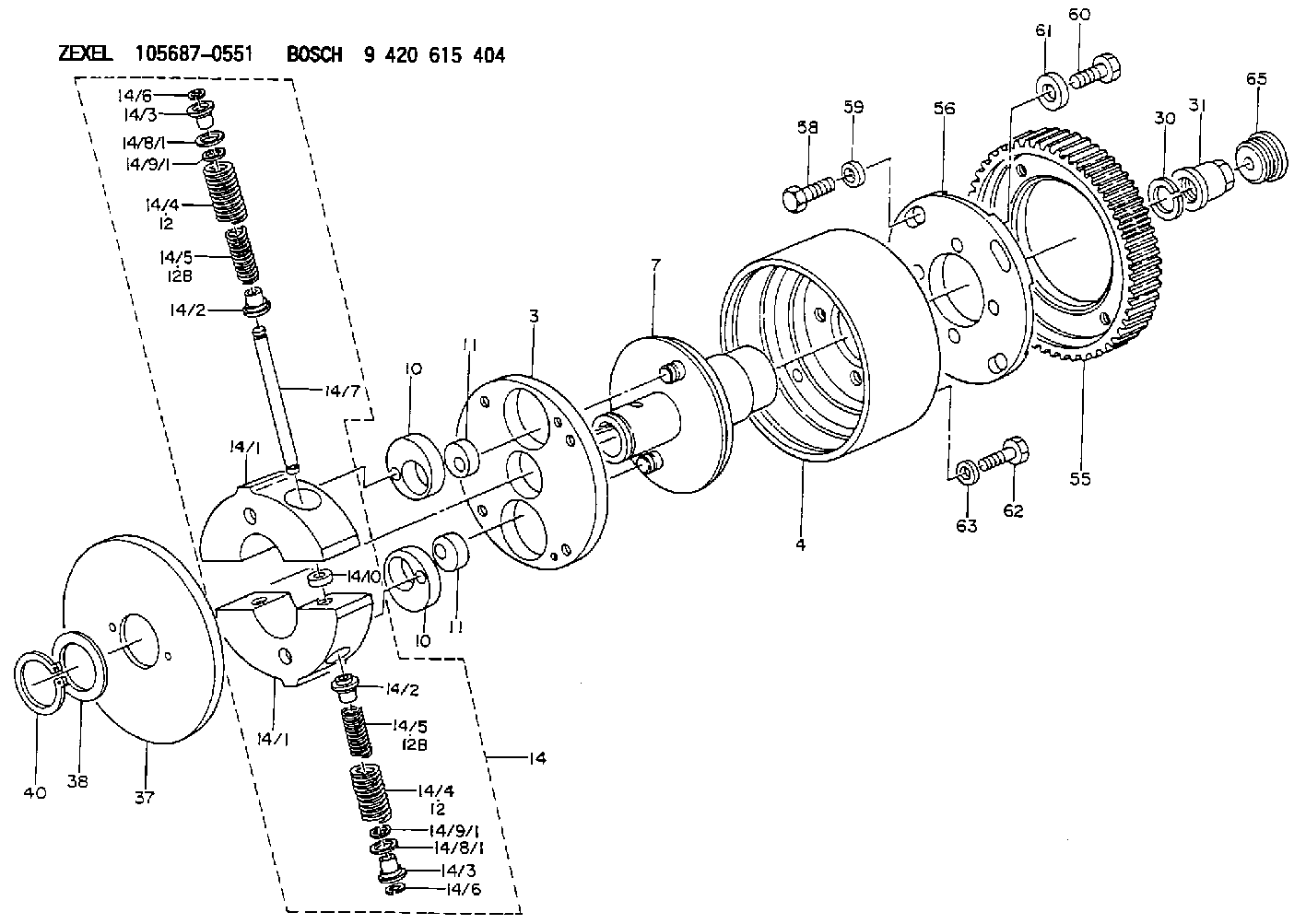

105687-0551 ZEXEL 9 420 615 404 BOSCH AUTOM. ADVANCE MECHANISM 9420615404 1056870551 1157404901

Fuel Filter
Disassembly and Inspection of Fuel Filter
(For in-line fuel injection pump) (For distributor-type fuel injection pump) Reassembly of Fuel Filter
(For in-line fuel injection pump) Before installing the cartridge, clean the mounting surface on the cartridge, coat the gasket with clean fuel oil. Screw in the cartridge until the gasket contacts the seal surface of the bracket, then turn cartridge full turn by hand. (Do not use a filter wrench for this installation.) Do not use a filter that has dents or scratches, since damaged filter can break during engine operation.
After installation, start the engine and check to make sure there is no fuel leak.
(For distributor-type fuel injection pump) Do not use a filter that has dents or scratches, since damaged filter can break during engine operation.
After installation, start the engine and check to make sure there is no fuel leak.
Fuel Injection Nozzles
Disassembly of Fuel Injection Nozzles
Inspection of Fuel Injection Nozzles
Check each fuel injection nozzle for the following, and if defects are found, repair or replace the fuel injection nozzle.(1) Inspection of injection start pressure(a) Install each fuel injection nozzle on the nozzle tester, and move the handle up and down to release air.(b) Operate the handle of the tester at a rate of about 1 stroke per second, and read the indication on the pressure gage. The indication rises slowly, and the indicator oscillates during spraying. To obtain the injection start pressure value, read the indication when the indicator starts to oscillate.
Inspection of fuel injection nozzle valve opening(c) If the injection start pressure deviates significantly from the standard value, disassemble the fuel injection nozzle, and make an adjustment by changing the washer thickness. 0.1 mm [0.0039 in.] thickness of shims will change the injection pressure 0.98 Mpa (10 kgf/cm2 [142 psi]. The shims are available in 10 different thickness from 1.25 to 1.70 mm [0.0492 to 0.0669 in.] increment of 0.05 mm [0.0020 in.]
Never tap the tip of the nozzle tip when removing the nozzle tip.
Replacement of fuel injection nozzle tip(2) Inspection of fuel injection nozzle spray pattern(a) When inspecting each fuel injection nozzle with the nozzle tester, also check the nozzle for clogs, spray pattern and leakage.(b) Make sure that the fuel is sprayed straight from the nozzle when the handle of the tester is operated at a rate of about 1 stroke per second.
Inspection of spray pattern of fuel injection nozzle(3) Cleaning and replacement of faulty nozzles(a) Loosen the nozzle retaining nut, remove the nozzle tip, and clean the needle valve and body.
Never tap the tip of the nozzle tip when removing the nozzle tip.
(b) Use a fresh cleaning solution to clean the needle valve and body. After cleaning, assemble the needle valve and body in clean diesel fuel. The needle valve and body are precision finished. Handle them carefully, and do not change the combination of parts.
Cleaning of fuel injection nozzle tip(c) Tighten the nozzle retaining nut on the nozzle tip to the specified torque.(d) If the spray pattern is still not acceptable after adjustment
