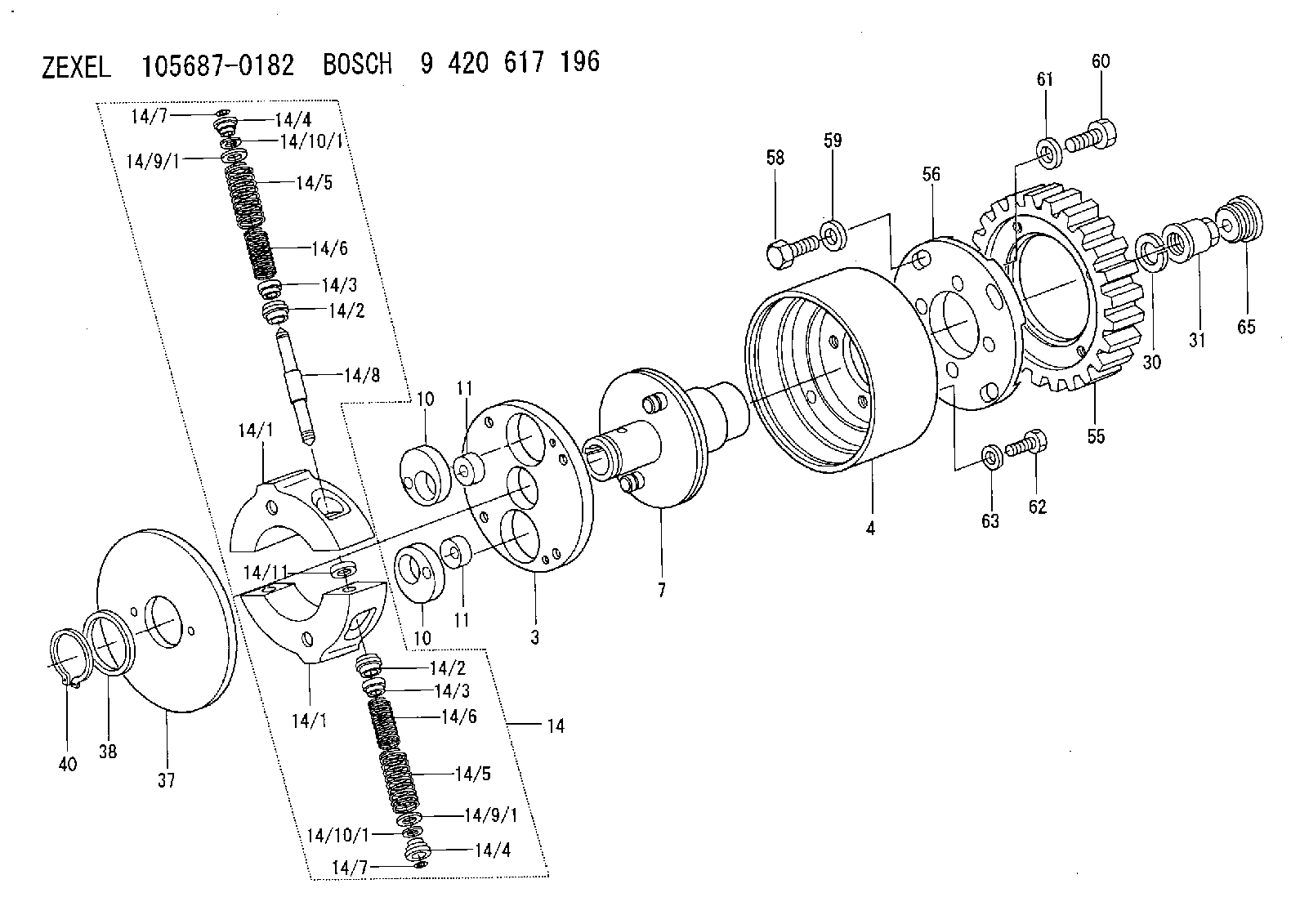

Information autom. advance mechanism
BOSCH
9 420 617 196
9420617196
ZEXEL
105687-0182
1056870182

Rating:
Scheme ###:
3. | [1] | 156873-0100 | PLATE |
4. | [1] | 156870-0000 | TIMING-DEVICE HOUSING |
7. | [1] | 156871-0221 | FLANGE BUSHING |
10. | [2] | 156723-0300 | ECCENTRIC DISC |
10. | [2] | 156723-0300 | ECCENTRIC DISC |
11. | [2] | 156723-0400 | ECCENTRIC DISC |
11. | [2] | 156723-0400 | ECCENTRIC DISC |
14. | [1] | 156880-5620 | FLYWEIGHT ASSEMBLY |
14/1. | [2] | 156872-0820 | FLYWEIGHT |
14/1. | [2] | 156872-0820 | FLYWEIGHT |
14/2. | [4] | 156727-0000 | SLOTTED WASHER |
14/2. | [4] | 156727-0000 | SLOTTED WASHER |
14/3. | [4] | 156877-0600 | SPRING SEAT |
14/3. | [4] | 156877-0600 | SPRING SEAT |
14/4. | [4] | 156877-0500 | SLOTTED WASHER |
14/4. | [4] | 156877-0500 | SLOTTED WASHER |
14/5. | [4] | 156875-5000 | COMPRESSION SPRING |
14/5. | [4] | 156875-5000 | COMPRESSION SPRING |
14/6. | [4] | 156875-5100 | COMPRESSION SPRING |
14/6. | [4] | 156875-5100 | COMPRESSION SPRING |
14/7. | [4] | 156729-0500 | LOCKING WASHER |
14/7. | [4] | 156729-0500 | LOCKING WASHER |
14/8. | [2] | 156876-0400 | PIN |
14/9/1. | [0] | 156728-0800 | SHIM D19&15T0.1 |
14/9/1. | [0] | 156728-0900 | SHIM D19&15T0.3 |
14/9/1. | [0] | 156728-1000 | SHIM D19&15T0.5 |
14/9/1. | [0] | 156728-1100 | SHIM D19&15T1.0 |
14/9/1. | [0] | 156728-2000 | SHIM D19&15T0.4 |
14/9/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
14/9/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
14/9/1. | [0] | 156728-2400 | SHIM D19&15T0.6 |
14/9/1. | [0] | 156728-2500 | SHIM D19&15T0.8 |
14/9/1. | [0] | 156728-2600 | SHIM D19&15T0.9 |
14/10/1. | [0] | 156728-1200 | SHIM D14&10.6T0.1 |
14/10/1. | [0] | 156728-1300 | SHIM D14&10.6T0.3 |
14/10/1. | [0] | 156728-1400 | SHIM D14&10.6T0.5 |
14/10/1. | [0] | 156728-1500 | SHIM D14&10.6T1.0 |
14/10/1. | [0] | 156728-2200 | SHIM D14&10.6T0.4 |
14/10/1. | [0] | 156728-2300 | SHIM D14&10.6T0.7 |
14/10/1. | [0] | 156728-2700 | SHIM D14&10.6T0.6 |
14/10/1. | [0] | 156728-2700 | SHIM D14&10.6T0.6 |
14/10/1. | [0] | 156728-2800 | SHIM D14&10.6T0.8 |
14/10/1. | [0] | 156728-2900 | SHIM D14&10.6T0.9 |
14/11. | [2] | 156808-0500 | SPACER BUSHING |
30. | [1] | 156809-0000 | LOCKING WASHER |
31. | [1] | 156809-0100 | UNION NUT |
37. | [1] | 156879-0901 | COVER |
38. | [1] | 156879-0700 | SHIM |
40. | [1] | 016020-3840 | LOCKING WASHER |
55. | [1] | 156878-0100 | TOOTHED GEAR |
56. | [1] | 156879-1300 | FLANGE;TIMING DEVICE |
58. | [4] | 156879-0000 | BLEEDER SCREW |
59. | [4] | 156879-1400 | PLAIN WASHER |
60. | [4] | 156879-0200 | BLEEDER SCREW |
61. | [4] | 156879-0500 | PLAIN WASHER |
62. | [4] | 156633-4100 | BLEEDER SCREW |
63. | [4] | 156879-0300 | PLAIN WASHER |
65. | [1] | 156879-0600 | CAP |
Include in #1:
106961-1575
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105687-0182
9 420 617 196
AUTOM. ADVANCE MECHANISM
* K
* K
