105684-0200 ZEXEL 9 420 616 639 BOSCH AUTOM. ADVANCE MECHANISM 9420616639 1056840200 16851ny000




Information autom. advance mechanism

BOSCH 9 420 616 639 9420616639
ZEXEL 105684-0200 1056840200
NISSAN-DIESEL 16851NY000 16851ny000
105684-0200 AUTOM. ADVANCE MECHANISM
Rating:
86
Buy AUTOM. ADVANCE MECHANISM 105684-0200 zexel genuine, new aftermarket engine parts with delivery

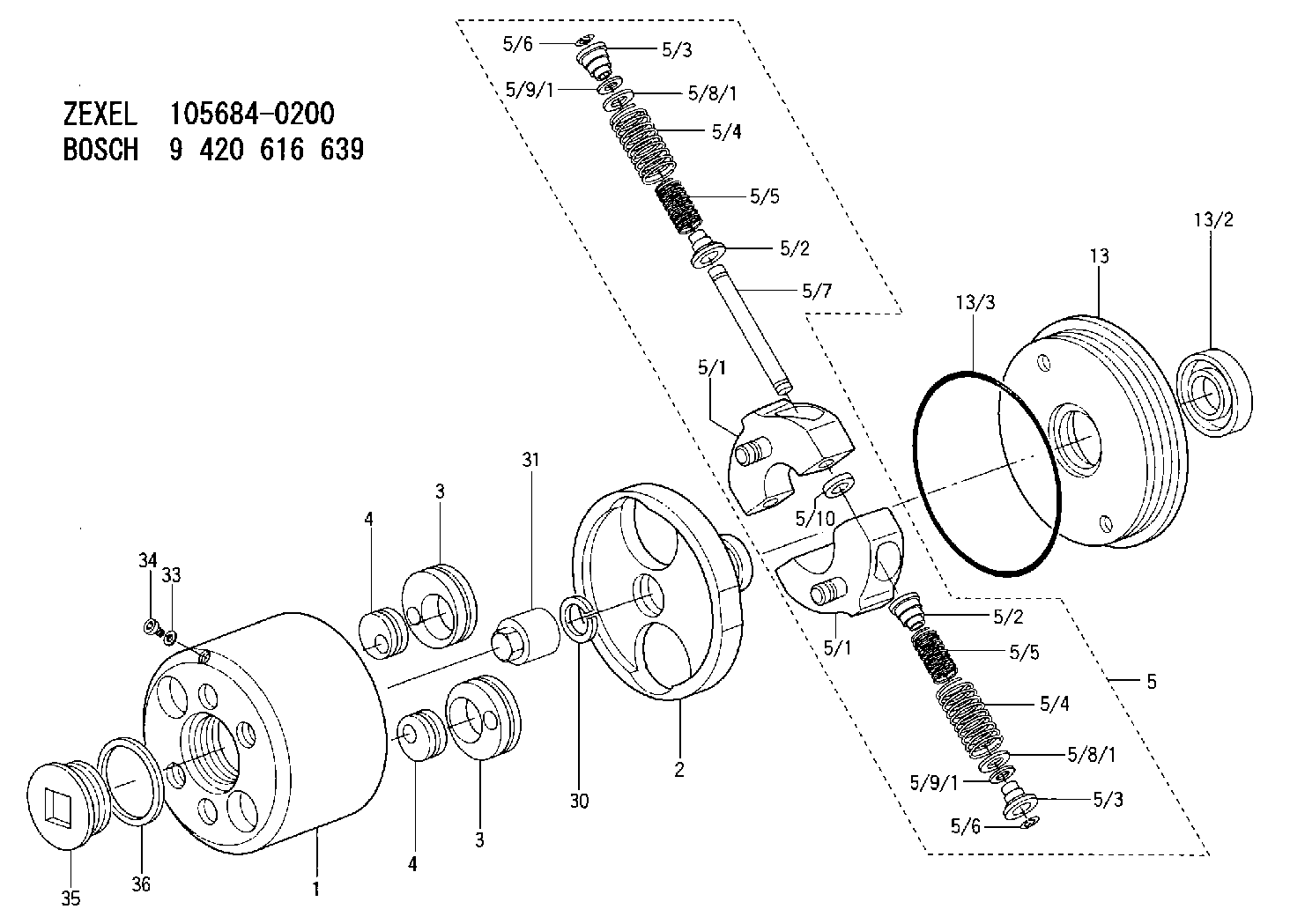

Scheme ###:

TIMING-DEVICE HOUSING
1. [1] 156850-0120 TIMING-DEVICE HOUSING
2. [1] 156851-0400 FLANGE BUSHING
3. [2] 156853-0000 ECCENTRIC DISC
3. [2] 156853-0000 ECCENTRIC DISC
4. [2] 156853-0100 ECCENTRIC DISC
4. [2] 156853-0100 ECCENTRIC DISC
5. [1] 156858-1620 FLYWEIGHT ASSEMBLY
5/1. [2] 156852-1720 FLYWEIGHT
5/1. [2] 156852-1720 FLYWEIGHT
5/2. [4] 156807-0600 SLOTTED WASHER
5/2. [4] 156807-0600 SLOTTED WASHER
5/3. [4] 156807-1200 SLOTTED WASHER
5/3. [4] 156807-1200 SLOTTED WASHER
5/4. [4] 156854-8000 COMPRESSION SPRING
5/4. [4] 156854-8000 COMPRESSION SPRING
5/5. [4] 156854-8100 COMPRESSION SPRING
5/5. [4] 156854-8100 COMPRESSION SPRING
5/6. [4] 156729-0500 LOCKING WASHER
5/6. [4] 156729-0500 LOCKING WASHER
5/7. [2] 156857-0900 PIN
5/8/1. [0] 156728-0800 SHIM D19&15T0.1
5/8/1. [0] 156728-0900 SHIM D19&15T0.3
5/8/1. [0] 156728-1000 SHIM D19&15T0.5
5/8/1. [0] 156728-1100 SHIM D19&15T1.0
5/8/1. [0] 156728-2000 SHIM D19&15T0.4
5/8/1. [0] 156728-2000 SHIM D19&15T0.4
5/8/1. [0] 156728-2100 SHIM D19&15T0.7
5/9/1. [0] 156728-1200 SHIM D14&10.6T0.1
5/9/1. [0] 156728-1200 SHIM D14&10.6T0.1
5/9/1. [0] 156728-1300 SHIM D14&10.6T0.3
5/9/1. [0] 156728-1400 SHIM D14&10.6T0.5
5/9/1. [0] 156728-1500 SHIM D14&10.6T1.0
5/9/1. [0] 156728-2200 SHIM D14&10.6T0.4
5/9/1. [0] 156728-2300 SHIM D14&10.6T0.7
5/10. [2] 156808-0500 SPACER BUSHING
13. [1] 156857-0520 COVER
13/2. [1] 139650-0100 PACKING RING
13/3. [1] 156847-0100 O-RING
30. [1] 156322-0200 LOCKING WASHER
31. [1] 134325-0900 UNION NUT
33. [1] 029331-0190 GASKET D14&10.2T1
34. [1] 156316-0000 CAPSULE
35. [1] 156314-0600 CAP
36. [1] 156319-0200 GASKET

Include in #1:

108621-0022 as AUTOM. ADVANCE MECHANIS
108621-0023
108621-0051
108621-0052

Cross reference number

Zexel num
Bosch num
Firm num
Name
105684-0200
9 420 616 639
16851NY000  NISSAN-DIESEL
AUTOM. ADVANCE MECHANISM
K 14KP AUTOMATIC TIMER TIMER




Information:


REM07-12
Reman
July 2007 APPEARANCE CHANGE TO CAT REMAN DIFN NOZZLES
Announcement
The Caterpillar Remanufactured Products Group announces a change on selected Cat? Reman DIFN nozzles. Currently, the nozzles include an edge filter located in the adapter. Effective on 07/02/07, Reman will not include edge filters in nozzles as an improvement to the source of debris caused by the edge filter movement and or chipping the corners when pressing the filter inside the adapter. This change will not alter fit or performance in any way.
Part Numbers Impacted
The table below lists part numbers impacted by this change.
Features And Benefits
Cat Remanufactured fuel nozzles offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these Remanufactured fuel nozzles. Cat Remanufactured fuel nozzles provide immediate, off-the-shelf availability at a fraction of the new price.
Core Acceptance
Core Acceptance Criteria for Caterpillar Remanufactured Engine Components is simple, visual, and requires no special tools. Consult your Core Acceptance Guide for complete details.
Warranty
Please consult the appropriate warranty statement for your area.
Core Management
Please refer to the Caterpillar Core Management Information System (CMIS 2) Parts Information application describing all reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS 2 conversion date. In the meantime, please continue to use the current CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number detail.
For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman Dealer website https://reman.cat.com
If you have any questions regarding core return processing, feel free to call Corinth toll free at (800) 537-2928. For assistance with technical questions, call the Peoria Reman
Technical Help Line also toll free at (888) 88-REMAN or use our E-mail address--Reman_Help.
PELJ0782 CATERPILLAR? ?2007 Caterpillar
