Information autom. advance mechanism
BOSCH
9 420 616 543
9420616543
ZEXEL
105684-0160
1056840160
NISSAN-DIESEL
1685197172
1685197172
Rating:
Scheme ###:

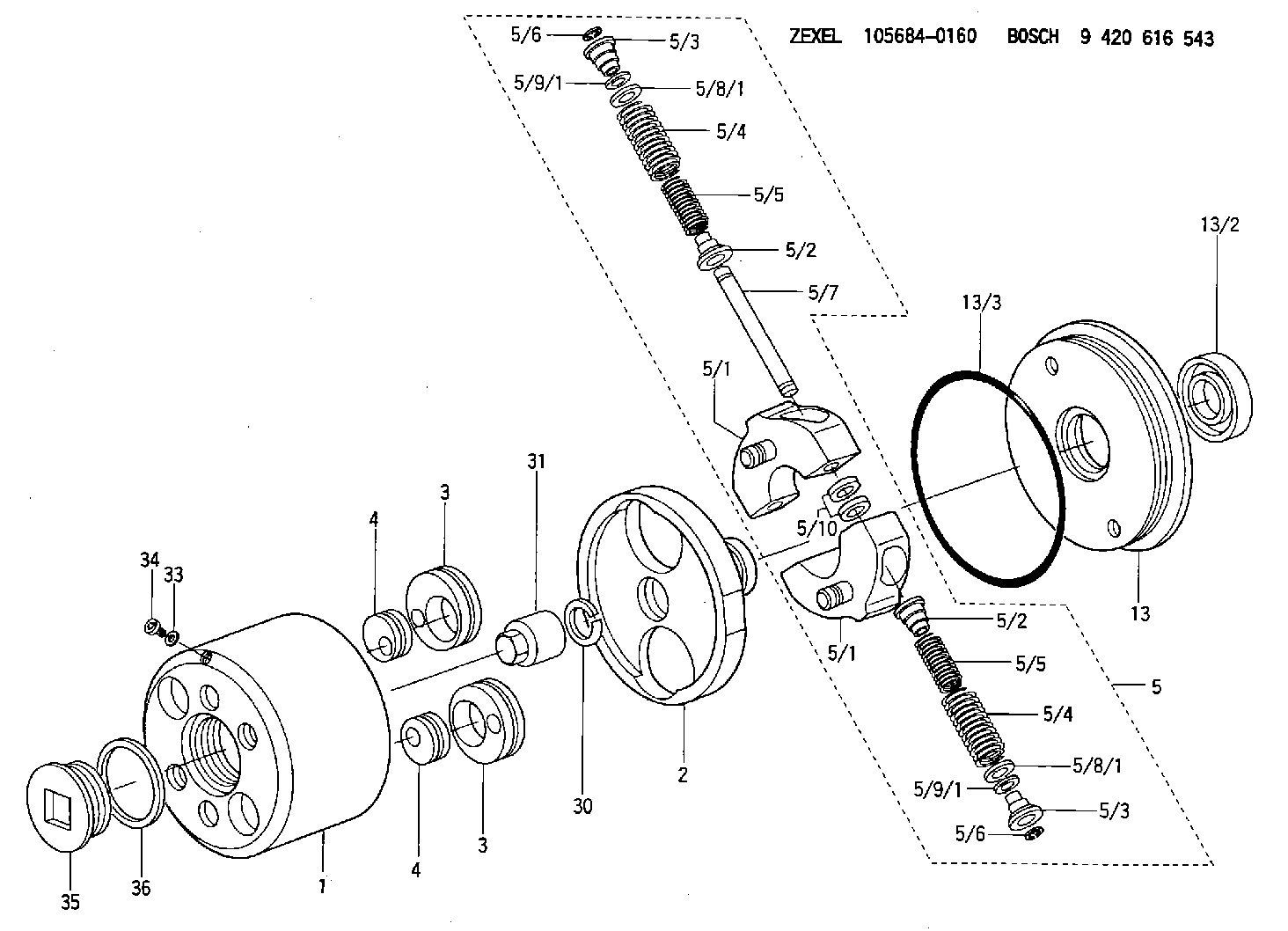

| 1. | [1] | 156850-0020 | TIMING-DEVICE HOUSING |
| 2. | [1] | 156851-0300 | FLANGE BUSHING |
| 3. | [2] | 156853-0000 | ECCENTRIC DISC |
| 3. | [2] | 156853-0000 | ECCENTRIC DISC |
| 4. | [2] | 156853-0100 | ECCENTRIC DISC |
| 4. | [2] | 156853-0100 | ECCENTRIC DISC |
| 5. | [1] | 156858-1420 | FLYWEIGHT ASSEMBLY |
| 5/1. | [2] | 156852-1120 | FLYWEIGHT |
| 5/1. | [2] | 156852-1120 | FLYWEIGHT |
| 5/2. | [4] | 156857-0100 | SLOTTED WASHER |
| 5/2. | [4] | 156857-0100 | SLOTTED WASHER |
| 5/3. | [4] | 156877-0300 | SLOTTED WASHER |
| 5/3. | [4] | 156877-0300 | SLOTTED WASHER |
| 5/4. | [4] | 156854-7300 | COMPRESSION SPRING |
| 5/4. | [4] | 156854-7300 | COMPRESSION SPRING |
| 5/5. | [4] | 156854-7200 | COMPRESSION SPRING |
| 5/5. | [4] | 156854-7200 | COMPRESSION SPRING |
| 5/6. | [4] | 156809-0300 | LOCKING WASHER |
| 5/6. | [4] | 156809-0300 | LOCKING WASHER |
| 5/7. | [2] | 156857-0200 | PIN |
| 5/8/1. | [0] | 156728-0800 | SHIM D19&15T0.1 |
| 5/8/1. | [0] | 156728-0900 | SHIM D19&15T0.3 |
| 5/8/1. | [0] | 156728-1000 | SHIM D19&15T0.5 |
| 5/8/1. | [0] | 156728-1100 | SHIM D19&15T1.0 |
| 5/8/1. | [0] | 156728-2000 | SHIM D19&15T0.4 |
| 5/8/1. | [0] | 156728-2000 | SHIM D19&15T0.4 |
| 5/8/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
| 5/9/1. | [0] | 156728-1200 | SHIM D14&10.6T0.1 |
| 5/9/1. | [0] | 156728-1300 | SHIM D14&10.6T0.3 |
| 5/9/1. | [0] | 156728-1400 | SHIM D14&10.6T0.5 |
| 5/9/1. | [0] | 156728-1400 | SHIM D14&10.6T0.5 |
| 5/9/1. | [0] | 156728-1500 | SHIM D14&10.6T1.0 |
| 5/9/1. | [0] | 156728-2200 | SHIM D14&10.6T0.4 |
| 5/9/1. | [0] | 156728-2300 | SHIM D14&10.6T0.7 |
| 5/10. | [4] | 156808-0500 | SPACER BUSHING |
| 13. | [1] | 156857-0520 | COVER |
| 13/2. | [1] | 139650-0100 | PACKING RING |
| 13/3. | [1] | 156847-0100 | O-RING |
| 30. | [1] | 156322-0200 | LOCKING WASHER |
| 31. | [1] | 134325-0900 | UNION NUT |
| 33. | [1] | 029331-0190 | GASKET D14&10.2T1 |
| 34. | [1] | 156316-0000 | CAPSULE |
| 35. | [1] | 156314-0600 | CAP |
| 36. | [1] | 156319-0200 | GASKET |
Include in #1:
108921-0070
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
