105683-0690 ZEXEL 9 420 615 874 BOSCH AUTOM. ADVANCE MECHANISM 9420615874 1056830690 1685197602




Information autom. advance mechanism

BOSCH 9 420 615 874 9420615874
ZEXEL 105683-0690 1056830690
NISSAN-DIESEL 1685197602 1685197602
105683-0690 AUTOM. ADVANCE MECHANISM
Rating:
53
Buy AUTOM. ADVANCE MECHANISM 105683-0690 zexel genuine, new aftermarket engine parts with delivery

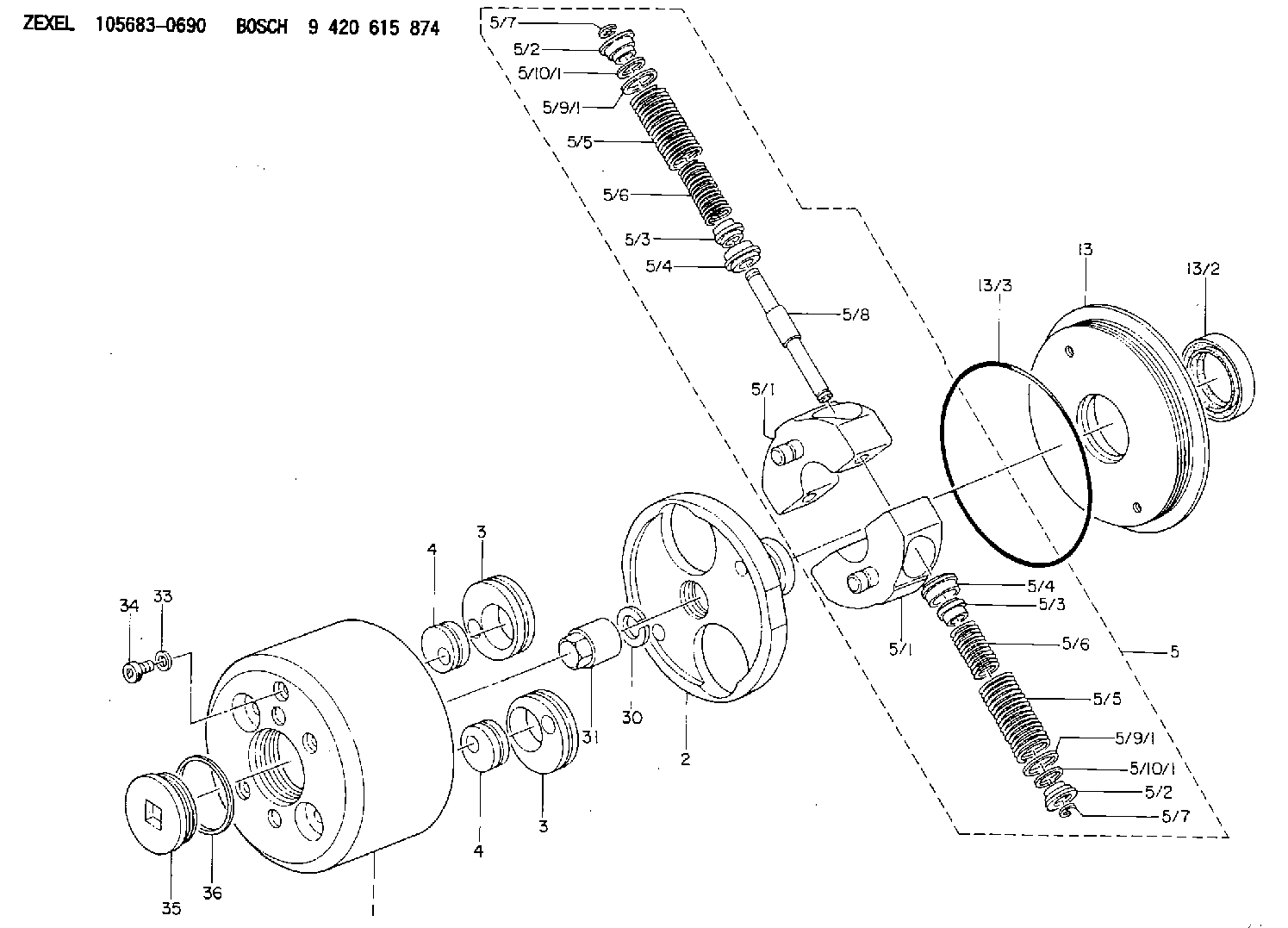

Scheme ###:

1. [1] 156840-0120 TIMING-DEVICE HOUSING
2. [1] 156841-0200 FLANGE BUSHING
3. [2] 156723-0300 ECCENTRIC DISC
3. [2] 156723-0300 ECCENTRIC DISC
4. [2] 156723-0400 ECCENTRIC DISC
4. [2] 156723-0400 ECCENTRIC DISC
5. [1] 156848-5720 FLYWEIGHT ASSEMBLY
5/1. [2] 156842-1420 FLYWEIGHT
5/1. [2] 156842-1420 FLYWEIGHT
5/2. [4] 156847-1800 SLOTTED WASHER
5/2. [4] 156847-1800 SLOTTED WASHER
5/3. [4] 156847-1900 SLOTTED WASHER
5/3. [4] 156847-1900 SLOTTED WASHER
5/4. [4] 156847-2000 SLOTTED WASHER
5/4. [4] 156847-2000 SLOTTED WASHER
5/5. [4] 156846-3100 COMPRESSION SPRING
5/5. [4] 156846-3100 COMPRESSION SPRING
5/6. [4] 156846-2700 COMPRESSION SPRING
5/6. [4] 156846-2700 COMPRESSION SPRING
5/7. [4] 156729-0500 LOCKING WASHER
5/7. [4] 156729-0500 LOCKING WASHER
5/8. [2] 156847-3400 PIN
5/9/1. [0] 156847-0500 SHIM D24.2&19.2T0.2
5/9/1. [0] 156847-0600 SHIM D24.2&19.2T0.3
5/9/1. [0] 156847-0700 SHIM D24.2&19.2T0.4
5/9/1. [0] 156847-0800 SHIM D24.2&19.2T0.5
5/9/1. [0] 156847-0900 SHIM D24.2&19.2T0.7
5/9/1. [0] 156847-0900 SHIM D24.2&19.2T0.7
5/9/1. [0] 156847-1000 SHIM D24.2&19.2T1.0
5/10/1. [0] 156847-1100 SHIM D18.5&14.3T0.2
5/10/1. [0] 156847-1200 SHIM D18.5&14.3T0.3
5/10/1. [0] 156847-1200 SHIM D18.5&14.3T0.3
5/10/1. [0] 156847-1300 SHIM D18.5&14.3T0.4
5/10/1. [0] 156847-1400 SHIM D18.5&14.3T0.5
5/10/1. [0] 156847-1500 SHIM D18.5&14.3T0.7
5/10/1. [0] 156847-1600 SHIM D18.5&14.3T1.0
13. [1] 156847-3320 COVER
13/2. [1] 139648-0600 PACKING RING
13/3. [1] 156847-0100 O-RING
30. [1] 156322-0000 LOCKING WASHER
31. [1] 134325-0800 UNION NUT
33. [1] 029331-0190 GASKET D14&10.2T1
34. [1] 156316-0000 CAPSULE
35. [1] 156314-0600 CAP
36. [1] 156319-0200 GASKET

Include in #1:

106871-5490 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num
Bosch num
Firm num
Name
105683-0690
9 420 615 874
NP-EP/SDDG700-1080Z7ER
1685197602  NISSAN-DIESEL
AUTOM. ADVANCE MECHANISM
K 14KH AUTOMATIC TIMER TIMER SDDG TIMER




Information:


AUGUST 2011
INFORMATION RELEASE MEMO
Reman
PELJ1306 ?2011 Caterpillar REMAN DIESEL PARTICULATE FILTERS FOR MACHINE APPLICATIONS
To provide our customers with cost effective service options to support their Tier 4 emissions engines, Cat Reman has released a Reman version of the diesel particulate filters (DPF) used on many Tier 4 Cat? machines. The DPF traps both soot and ash. Soot is removed through a regeneration process outlined in the machines operation and maintenance manual. Ash that accumulates from engine oil is removed through a cleaning procedure that requires removal of the DPF from the machine. The cleaning procedure requires the DPF to be removed from the machine. Special Instruction REHS5045 outlines the three approved processes for performing the required Diesel Particulate Filter (DPF) maintenance on Tier 4 products equipped with a DPF.
Replacement of the existing DPF with a new Cat DPF
Replacement of the existing DPF with a remanufactured Cat DPF
Removal of the existing DPF and having the DPF cleaned by a Cat approved cleaning device.
The Reman DPFs listed below are available to support these maintenance requirements:
Core Acceptance
After gaining some experience with the previously released DPFs used for on-highway engines and to support the launch of these additional machine DPFs, we have changed some of the inspection criteria and issued a revision to SELD0292. SELD0292-02 Caterpillar Diesel Particulate Filter (DPF) is the current Core Acceptance Criteria (CAC). It is critical to avoid non-operational damage that can decrease the value of the cores. Encourage service technicians to handle and package the cores with care so they will be more likely to be eligible for the full core refunds. Please always refer to the most current version at catreman.cat.com/core to view the latest requirements. The acceptability inspection for these is a simple visual inspection based on the following guidelines:
Warranty
All Reman products carry the same warranty as new parts. Please consult the appropriate warranty statement for your area.
Core Management
Please refer to the Cat Core Management Information System (CMIS 2) related to the parts information application that describes all Reman part/Core Acceptability Family (CAF) and other related information. Also refer to other CMIS 2 inquiry applications such as: Dealer Customer Profile, Inspection Reason Codes, Inspection Line Inquiry, Dealer Add Charges, Dealer Entitlement Activity, Dealer CCR Inquiry, Dealer CCR Entry, Dealer Shipment Processing, Dealer Process Packaging Grief and Reporting. This information is available to all dealers worldwide that have been converted to CMIS 2.
Please go to the Reman web site https://catreman.cat.com for the latest policy and procedural updates that are available to all dealers worldwide explaining policy and procedural information such as Policy and Core Management SELD0122 -10, "Core Management Systems and Operations Procedures SELD0040-14, "Reman Core Return Packaging Instructions And Guidelines SELD0300-00 and "Shipping Instructions" SELD0039-14.
If you have any questions regarding Reman Core Management or Core Management Systems (CMIS2),

Have questions with 105683-0690?





Group cross 105683-0690 ZEXEL

Nissan-Diesel

9 420 616 963
NP-EP/SDDG750-1050Z6/R
1685196869
AUTOM. ADVANCE MECHANISM















Hino

9 420 615 873
NP-EP/SDDG660-1100Z5.75ER
225602610A
AUTOM. ADVANCE MECHANISM






Nissan-Diesel

105683-0690
9 420 615 874
NP-EP/SDDG700-1080Z7ER
1685197602
AUTOM. ADVANCE MECHANISM
