Information autom. advance mechanism
BOSCH
9 420 615 872
9420615872
ZEXEL
105683-0580
1056830580
NISSAN-DIESEL
1685197607
1685197607
Rating:

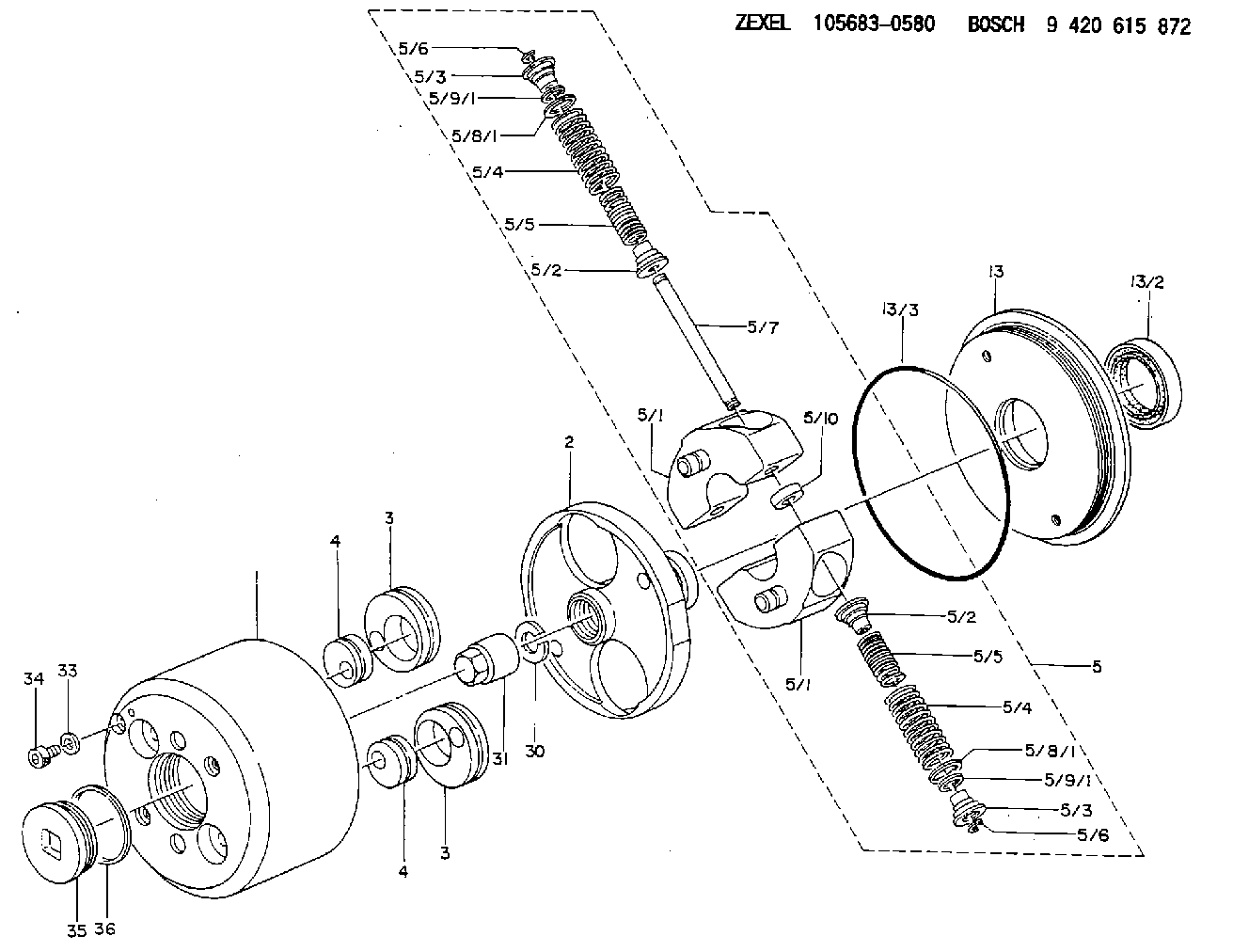

Scheme ###:
| 1. | [1] | 156840-0120 | TIMING-DEVICE HOUSING |
| 2. | [1] | 156841-0200 | FLANGE BUSHING |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 5. | [1] | 156848-5420 | FLYWEIGHT ASSEMBLY |
| 5/1. | [2] | 156842-2120 | FLYWEIGHT |
| 5/1. | [2] | 156842-2120 | FLYWEIGHT |
| 5/2. | [4] | 156847-0200 | SLOTTED WASHER |
| 5/2. | [4] | 156847-0200 | SLOTTED WASHER |
| 5/3. | [4] | 156847-0300 | SLOTTED WASHER |
| 5/3. | [4] | 156847-0300 | SLOTTED WASHER |
| 5/4. | [4] | 156846-1500 | COMPRESSION SPRING |
| 5/4. | [4] | 156846-1500 | COMPRESSION SPRING |
| 5/5. | [4] | 156845-6900 | COMPRESSION SPRING |
| 5/5. | [4] | 156845-6900 | COMPRESSION SPRING |
| 5/6. | [4] | 156809-0300 | LOCKING WASHER |
| 5/6. | [4] | 156809-0300 | LOCKING WASHER |
| 5/7. | [2] | 156847-2500 | PIN |
| 5/8/1. | [0] | 156847-0500 | SHIM D24.2&19.2T0.2 |
| 5/8/1. | [0] | 156847-0600 | SHIM D24.2&19.2T0.3 |
| 5/8/1. | [0] | 156847-0700 | SHIM D24.2&19.2T0.4 |
| 5/8/1. | [0] | 156847-0800 | SHIM D24.2&19.2T0.5 |
| 5/8/1. | [0] | 156847-0900 | SHIM D24.2&19.2T0.7 |
| 5/8/1. | [0] | 156847-1000 | SHIM D24.2&19.2T1.0 |
| 5/8/1. | [0] | 156847-1000 | SHIM D24.2&19.2T1.0 |
| 5/9/1. | [0] | 156847-1100 | SHIM D18.5&14.3T0.2 |
| 5/9/1. | [0] | 156847-1100 | SHIM D18.5&14.3T0.2 |
| 5/9/1. | [0] | 156847-1200 | SHIM D18.5&14.3T0.3 |
| 5/9/1. | [0] | 156847-1300 | SHIM D18.5&14.3T0.4 |
| 5/9/1. | [0] | 156847-1400 | SHIM D18.5&14.3T0.5 |
| 5/9/1. | [0] | 156847-1500 | SHIM D18.5&14.3T0.7 |
| 5/9/1. | [0] | 156847-1600 | SHIM D18.5&14.3T1.0 |
| 5/10. | [2] | 156847-2100 | SPACER BUSHING |
| 13. | [1] | 156847-3320 | COVER |
| 13/2. | [1] | 139648-0600 | PACKING RING |
| 13/3. | [1] | 156847-0100 | O-RING |
| 30. | [1] | 156322-0000 | LOCKING WASHER |
| 31. | [1] | 134325-0800 | UNION NUT |
| 33. | [1] | 029331-0190 | GASKET D14&10.2T1 |
| 34. | [1] | 156316-0000 | CAPSULE |
| 35. | [1] | 156314-0600 | CAP |
| 36. | [1] | 156319-0200 | GASKET |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105683-0580
1685197607 NISSAN-DIESEL
AUTOM. ADVANCE MECHANISM
K
K
