Information autom. advance mechanism
BOSCH
9 420 615 430
9420615430
ZEXEL
105683-0560
1056830560
HINO
225003950A
225003950a
Rating:

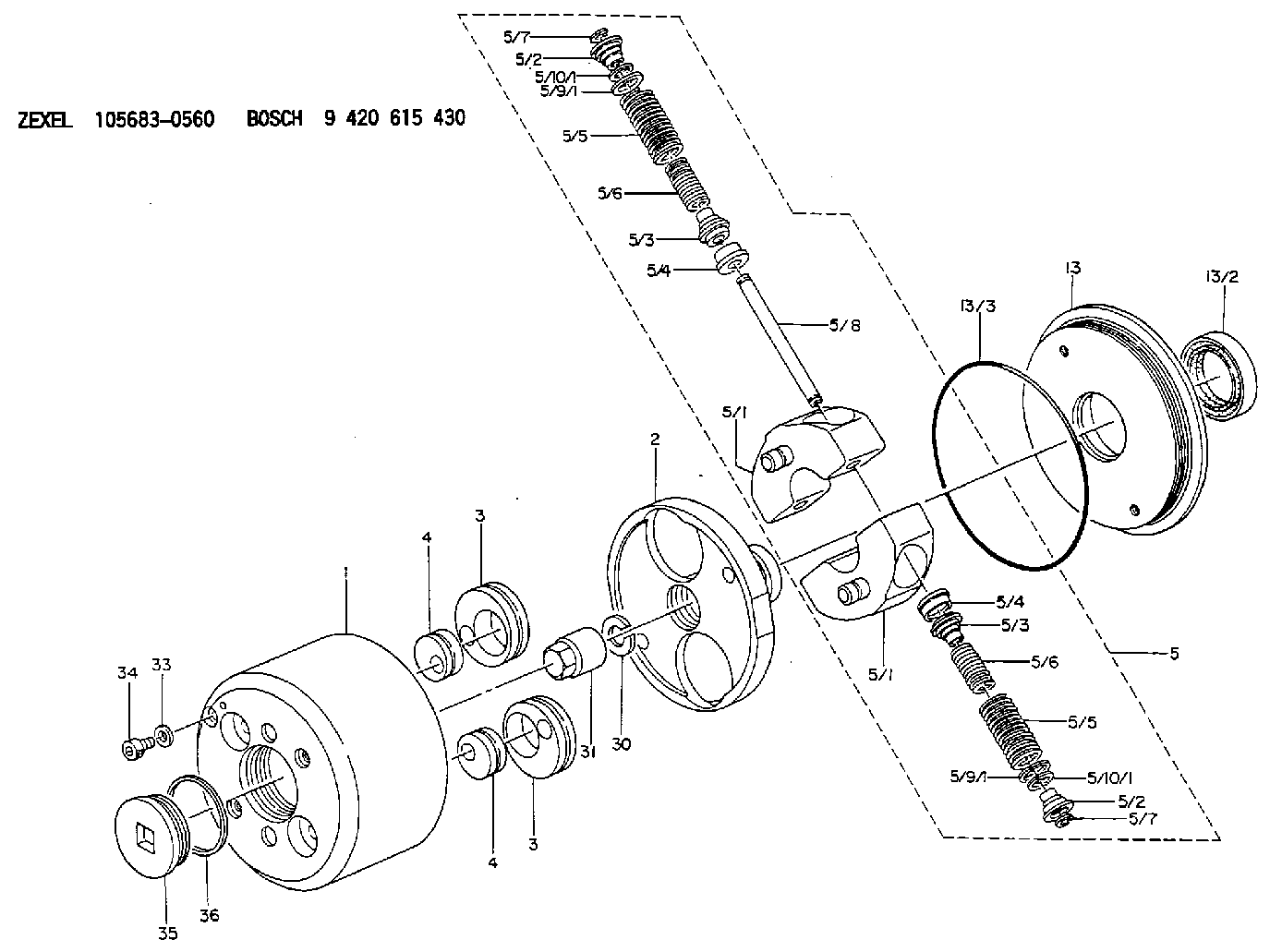

Scheme ###:
| 1. | [1] | 156840-0320 | TIMING-DEVICE HOUSING |
| 2. | [1] | 156841-0400 | FLANGE BUSHING |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 5. | [1] | 156848-5320 | FLYWEIGHT ASSEMBLY |
| 5/1. | [2] | 156842-2520 | FLYWEIGHT |
| 5/1. | [2] | 156842-2520 | FLYWEIGHT |
| 5/2. | [4] | 156847-1800 | SLOTTED WASHER |
| 5/2. | [4] | 156847-1800 | SLOTTED WASHER |
| 5/3. | [4] | 156847-1900 | SLOTTED WASHER |
| 5/3. | [4] | 156847-1900 | SLOTTED WASHER |
| 5/4. | [4] | 156847-2000 | SLOTTED WASHER |
| 5/4. | [4] | 156847-2000 | SLOTTED WASHER |
| 5/5. | [4] | 156846-3300 | COMPRESSION SPRING |
| 5/5. | [4] | 156846-3300 | COMPRESSION SPRING |
| 5/6. | [4] | 156846-3400 | COMPRESSION SPRING |
| 5/6. | [4] | 156846-3400 | COMPRESSION SPRING |
| 5/7. | [4] | 156729-0500 | LOCKING WASHER |
| 5/7. | [4] | 156729-0500 | LOCKING WASHER |
| 5/8. | [2] | 156847-2200 | PIN |
| 5/9/1. | [0] | 156847-0500 | SHIM D24.2&19.2T0.2 |
| 5/9/1. | [0] | 156847-0500 | SHIM D24.2&19.2T0.2 |
| 5/9/1. | [0] | 156847-0600 | SHIM D24.2&19.2T0.3 |
| 5/9/1. | [0] | 156847-0700 | SHIM D24.2&19.2T0.4 |
| 5/9/1. | [0] | 156847-0800 | SHIM D24.2&19.2T0.5 |
| 5/9/1. | [0] | 156847-0900 | SHIM D24.2&19.2T0.7 |
| 5/9/1. | [0] | 156847-1000 | SHIM D24.2&19.2T1.0 |
| 5/10/1. | [0] | 156847-1100 | SHIM D18.5&14.3T0.2 |
| 5/10/1. | [0] | 156847-1100 | SHIM D18.5&14.3T0.2 |
| 5/10/1. | [0] | 156847-1200 | SHIM D18.5&14.3T0.3 |
| 5/10/1. | [0] | 156847-1300 | SHIM D18.5&14.3T0.4 |
| 5/10/1. | [0] | 156847-1400 | SHIM D18.5&14.3T0.5 |
| 5/10/1. | [0] | 156847-1500 | SHIM D18.5&14.3T0.7 |
| 5/10/1. | [0] | 156847-1600 | SHIM D18.5&14.3T1.0 |
| 13. | [1] | 156847-0020 | COVER |
| 13/2. | [1] | 139648-0300 | PACKING RING |
| 13/3. | [1] | 156847-0100 | O-RING |
| 30. | [1] | 156322-0000 | LOCKING WASHER |
| 31. | [1] | 134325-0800 | UNION NUT |
| 33. | [1] | 029331-0190 | GASKET D14&10.2T1 |
| 34. | [1] | 156316-0000 | CAPSULE |
| 35. | [1] | 156314-0600 | CAP |
| 36. | [1] | 156319-0200 | GASKET |
Include in #1:
106873-3590
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105683-0560
225003950A HINO
AUTOM. ADVANCE MECHANISM
K 14KH AUTOMATIC TIMER TIMER SDDG TIMER
K 14KH AUTOMATIC TIMER TIMER SDDG TIMER
