Information autom. advance mechanism
BOSCH
9 420 616 292
9420616292
ZEXEL
105681-5960
1056815960
MITSUBISHI
ME748312
me748312

Rating:
Scheme ###:

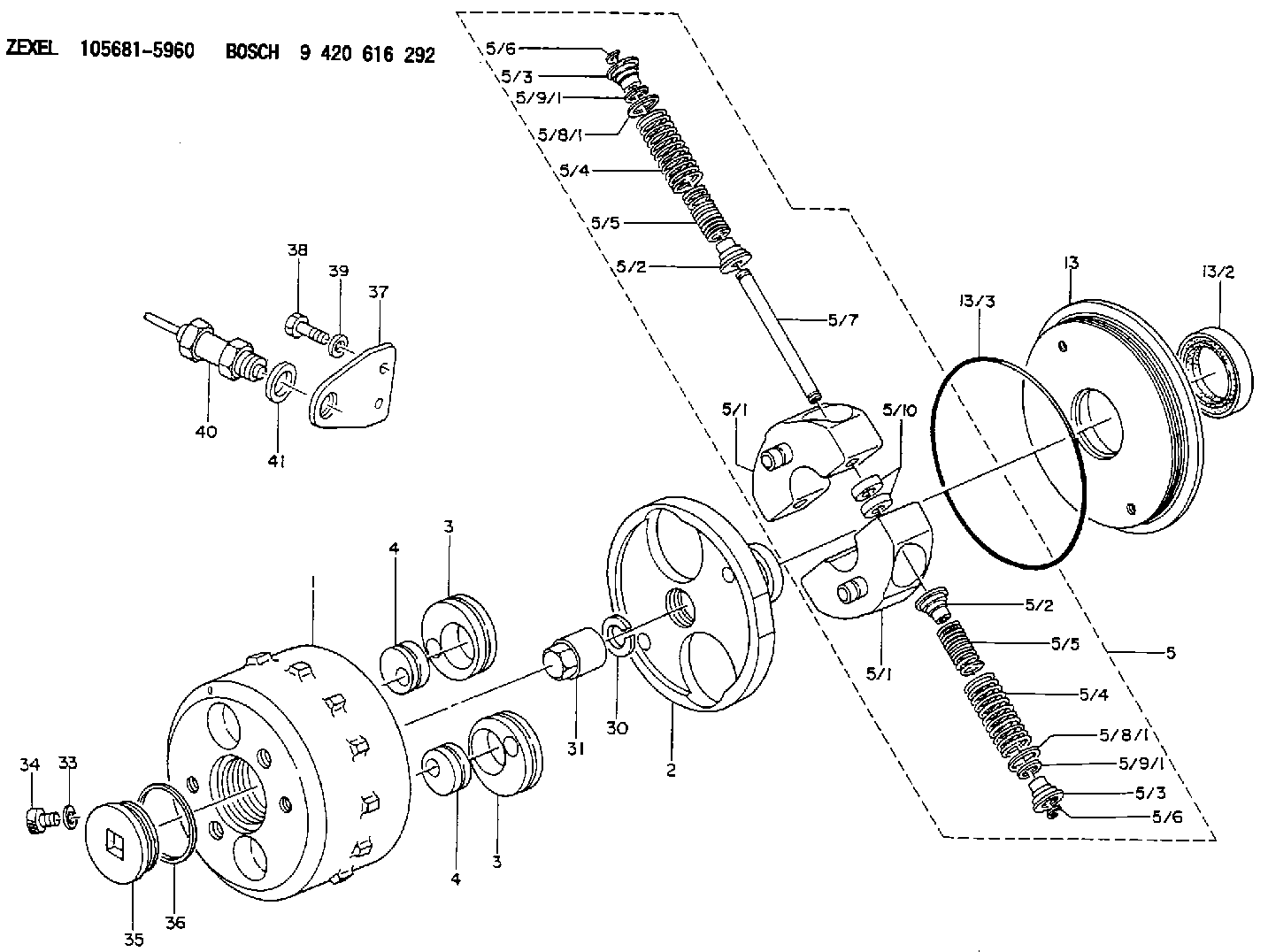

1. | [1] | 156800-5520 | TIMING-DEVICE HOUSING |
2. | [1] | 156801-2900 | FLANGE BUSHING |
3. | [2] | 156723-0300 | ECCENTRIC DISC |
3. | [2] | 156723-0300 | ECCENTRIC DISC |
4. | [2] | 156723-0400 | ECCENTRIC DISC |
4. | [2] | 156723-0400 | ECCENTRIC DISC |
5. | [1] | 156898-1620 | FLYWEIGHT ASSEMBLY |
5/1. | [2] | 156802-3120 | FLYWEIGHT |
5/1. | [2] | 156802-3120 | FLYWEIGHT |
5/2. | [4] | 156807-1100 | SLOTTED WASHER |
5/2. | [4] | 156807-1100 | SLOTTED WASHER |
5/3. | [4] | 156807-0900 | SLOTTED WASHER |
5/3. | [4] | 156807-0900 | SLOTTED WASHER |
5/4. | [4] | 156897-2500 | COMPRESSION SPRING |
5/4. | [4] | 156897-2500 | COMPRESSION SPRING |
5/5. | [4] | 156897-2400 | COMPRESSION SPRING |
5/5. | [4] | 156897-2400 | COMPRESSION SPRING |
5/6. | [4] | 156809-0300 | LOCKING WASHER |
5/6. | [4] | 156809-0300 | LOCKING WASHER |
5/7. | [2] | 156806-0900 | PIN |
5/8/1. | [0] | 156728-0800 | SHIM D19&15T0.1 |
5/8/1. | [0] | 156728-0800 | SHIM D19&15T0.1 |
5/8/1. | [0] | 156728-0900 | SHIM D19&15T0.3 |
5/8/1. | [0] | 156728-1000 | SHIM D19&15T0.5 |
5/8/1. | [0] | 156728-1100 | SHIM D19&15T1.0 |
5/8/1. | [0] | 156728-2000 | SHIM D19&15T0.4 |
5/8/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
5/9/1. | [0] | 156728-1200 | SHIM D14&10.6T0.1 |
5/9/1. | [0] | 156728-1200 | SHIM D14&10.6T0.1 |
5/9/1. | [0] | 156728-1300 | SHIM D14&10.6T0.3 |
5/9/1. | [0] | 156728-1400 | SHIM D14&10.6T0.5 |
5/9/1. | [0] | 156728-1500 | SHIM D14&10.6T1.0 |
5/9/1. | [0] | 156728-2200 | SHIM D14&10.6T0.4 |
5/9/1. | [0] | 156728-2300 | SHIM D14&10.6T0.7 |
5/10. | [4] | 156808-0500 | SPACER BUSHING |
13. | [1] | 156809-1520 | COVER |
13/2. | [1] | 139648-0300 | PACKING RING |
13/3. | [1] | 156315-0200 | O-RING |
30. | [1] | 156322-0000 | LOCKING WASHER |
31. | [1] | 134325-0800 | UNION NUT |
33. | [1] | 029331-0190 | GASKET D14&10.2T1 |
34. | [1] | 156316-0000 | CAPSULE |
35. | [1] | 156314-0600 | CAP |
36. | [1] | 156319-0200 | GASKET |
37. | [1] | 156914-4300 | PLATE |
38. | [2] | 020118-1840 | BLEEDER SCREW |
39. | [2] | 014020-8140 | PLAIN WASHER D16&8.5T1.2 |
40. | [1] | 479771-4920 | PULSE GENERATOR |
41. | [1] | 139316-0000 | PLAIN WASHER D25&16.5T5 |
Include in #1:
107691-2870
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105681-5960
ME748312 MITSUBISHI
AUTOM. ADVANCE MECHANISM
K 14KP AUTOMATIC TIMER TIMER
K 14KP AUTOMATIC TIMER TIMER
