Information autom. advance mechanism
BOSCH
9 420 616 296
9420616296
ZEXEL
105681-5940
1056815940
MITSUBISHI
ME748552
me748552
Rating:

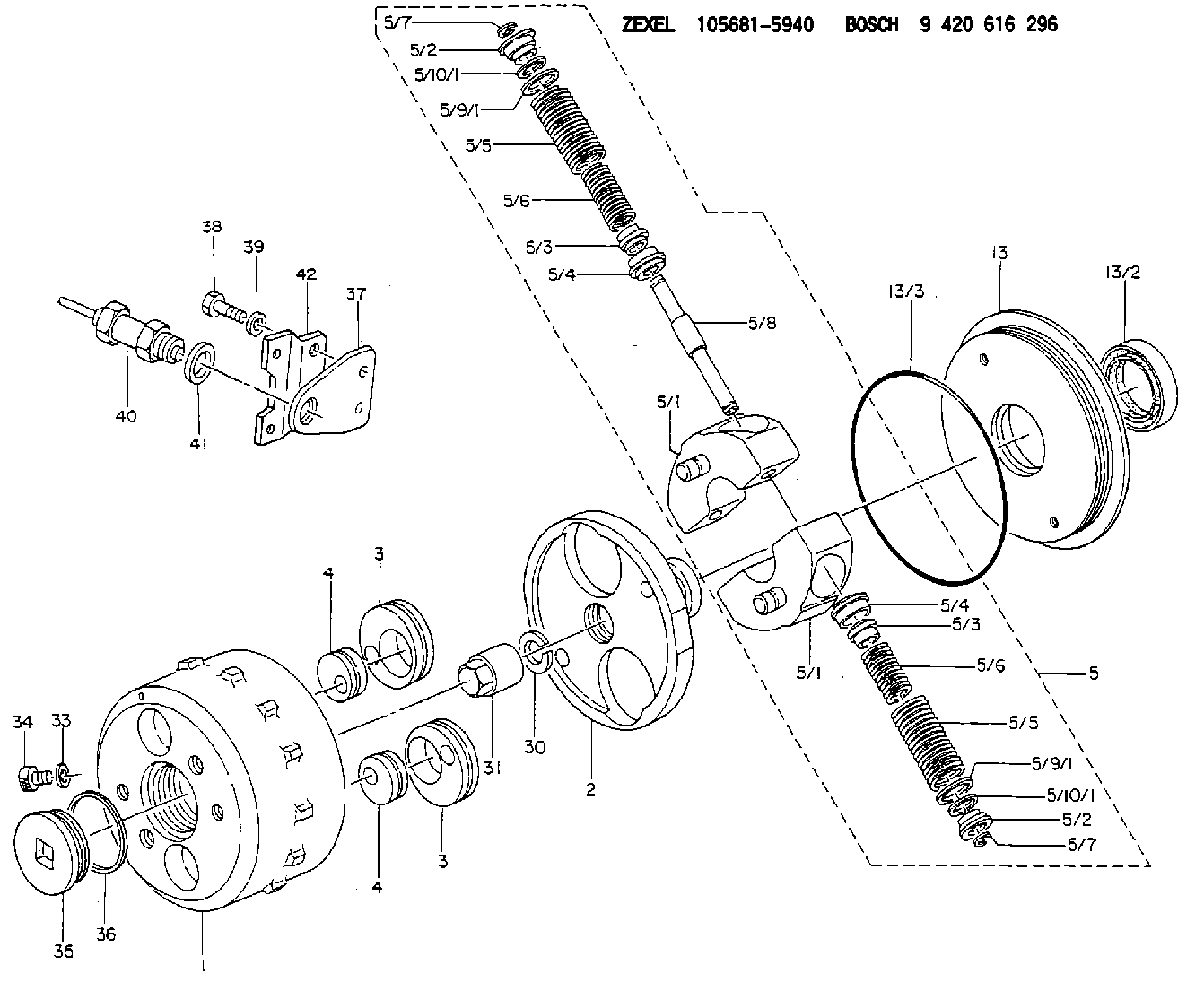

Scheme ###:
| 1. | [1] | 156800-5320 | TIMING-DEVICE HOUSING |
| 2. | [1] | 156801-5002 | FLANGE BUSHING |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 5. | [1] | 156898-4220 | FLYWEIGHT ASSEMBLY |
| 5/1. | [2] | 156802-8220 | FLYWEIGHT |
| 5/1. | [2] | 156802-8220 | FLYWEIGHT |
| 5/2. | [4] | 156877-0500 | SLOTTED WASHER |
| 5/2. | [4] | 156877-0500 | SLOTTED WASHER |
| 5/3. | [4] | 156807-1300 | SLOTTED WASHER |
| 5/3. | [4] | 156807-1300 | SLOTTED WASHER |
| 5/4. | [4] | 156807-1200 | SLOTTED WASHER |
| 5/4. | [4] | 156807-1200 | SLOTTED WASHER |
| 5/5. | [4] | 156893-2700 | COMPRESSION SPRING |
| 5/5. | [4] | 156893-2700 | COMPRESSION SPRING |
| 5/6. | [4] | 156893-2600 | COMPRESSION SPRING |
| 5/6. | [4] | 156893-2600 | COMPRESSION SPRING |
| 5/7. | [4] | 156729-0500 | LOCKING WASHER |
| 5/7. | [4] | 156729-0500 | LOCKING WASHER |
| 5/8. | [2] | 156806-2200 | PIN |
| 5/9/1. | [0] | 156728-0800 | SHIM D19&15T0.1 |
| 5/9/1. | [0] | 156728-0800 | SHIM D19&15T0.1 |
| 5/9/1. | [0] | 156728-0900 | SHIM D19&15T0.3 |
| 5/9/1. | [0] | 156728-1000 | SHIM D19&15T0.5 |
| 5/9/1. | [0] | 156728-1100 | SHIM D19&15T1.0 |
| 5/9/1. | [0] | 156728-2000 | SHIM D19&15T0.4 |
| 5/9/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
| 5/10/1. | [0] | 156728-1200 | SHIM D14&10.6T0.1 |
| 5/10/1. | [0] | 156728-1200 | SHIM D14&10.6T0.1 |
| 5/10/1. | [0] | 156728-1300 | SHIM D14&10.6T0.3 |
| 5/10/1. | [0] | 156728-1400 | SHIM D14&10.6T0.5 |
| 5/10/1. | [0] | 156728-1500 | SHIM D14&10.6T1.0 |
| 5/10/1. | [0] | 156728-2200 | SHIM D14&10.6T0.4 |
| 5/10/1. | [0] | 156728-2300 | SHIM D14&10.6T0.7 |
| 13. | [1] | 156809-1520 | COVER |
| 13/2. | [1] | 139648-0300 | PACKING RING |
| 13/3. | [1] | 156315-0200 | O-RING |
| 30. | [1] | 156322-0000 | LOCKING WASHER |
| 31. | [1] | 134325-0800 | UNION NUT |
| 33. | [1] | 029331-0190 | GASKET D14&10.2T1 |
| 34. | [1] | 156316-0000 | CAPSULE |
| 35. | [1] | 156314-0600 | CAP |
| 36. | [1] | 156319-0200 | GASKET |
| 37. | [1] | 156914-4300 | PLATE |
| 38. | [2] | 020118-2540 | BLEEDER SCREW |
| 39. | [2] | 014020-8140 | PLAIN WASHER D16&8.5T1.2 |
| 40. | [1] | 479771-4420 | PULSE GENERATOR |
| 41. | [1] | 139316-0000 | PLAIN WASHER D25&16.5T5 |
| 42. | [1] | 156914-4600 | PLATE |
Include in #1:
107691-2910
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105681-5940
ME748552 MITSUBISHI
AUTOM. ADVANCE MECHANISM
K 14KL AUTOMATIC TIMER TIMER SPG TIMER
K 14KL AUTOMATIC TIMER TIMER SPG TIMER
