105681-5511 ZEXEL 9 420 616 262 BOSCH AUTOM. ADVANCE MECHANISM 9420616262 1056815511 me742945

Information autom. advance mechanism

BOSCH 9 420 616 262 9420616262

ZEXEL 105681-5511 1056815511

MITSUBISHI ME742945 me742945

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105681-5511 zexel genuine, new aftermarket engine parts with delivery

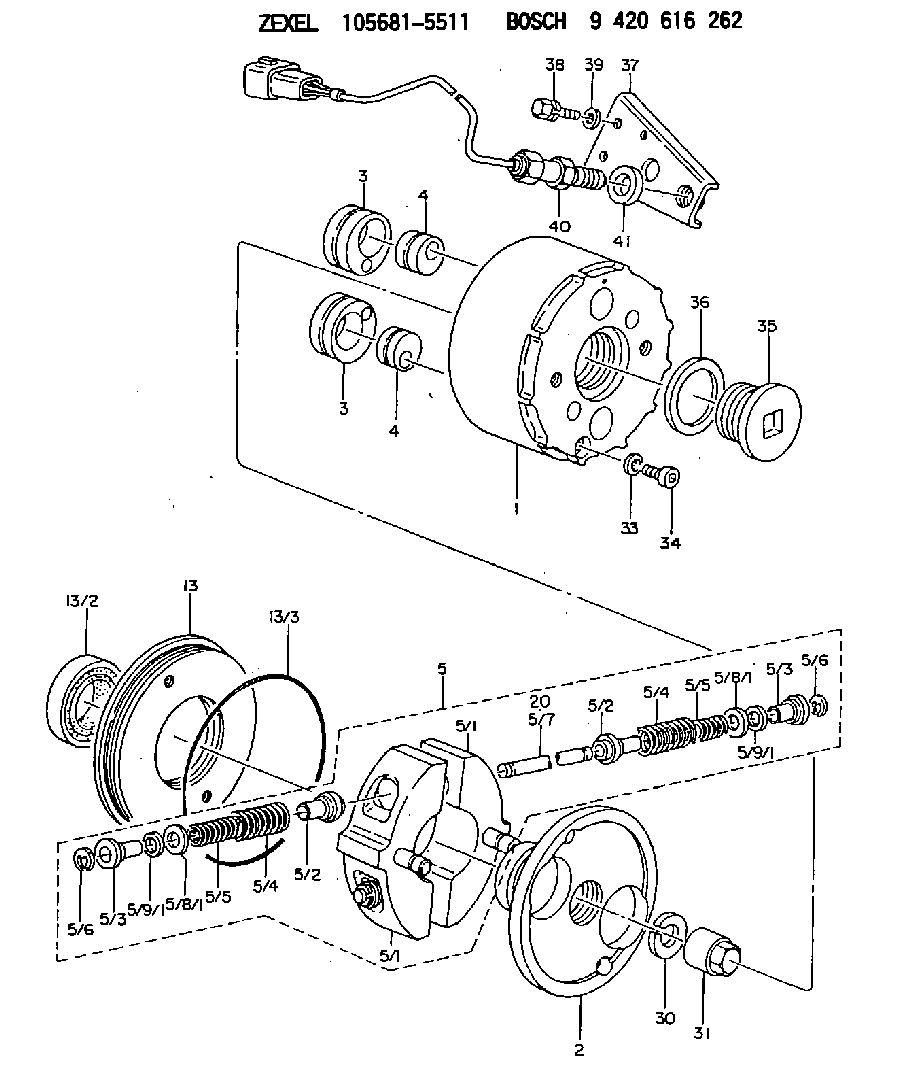

Scheme ###:

1.	[1]	156800-4220	TIMING-DEVICE HOUSING
2.	[1]	156801-5002	FLANGE BUSHING
3.	[2]	156723-0300	ECCENTRIC DISC
3.	[2]	156723-0300	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
5.	[1]	156819-6220	FLYWEIGHT ASSEMBLY
5/1.	[2]	156802-5620	FLYWEIGHT
5/1.	[2]	156802-5620	FLYWEIGHT
5/2.	[4]	156807-1100	SLOTTED WASHER
5/2.	[4]	156807-1100	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/4.	[4]	156895-0500	COMPRESSION SPRING
5/4.	[4]	156895-0500	COMPRESSION SPRING
5/5.	[4]	156895-0600	COMPRESSION SPRING
5/5.	[4]	156895-0600	COMPRESSION SPRING
5/6.	[4]	156809-0300	LOCKING WASHER
5/6.	[4]	156809-0300	LOCKING WASHER
5/7.	[2]	156806-0900	PIN
5/8/1.	[0]	156728-0800	SHIM D19&15T0.1
5/8/1.	[0]	156728-0900	SHIM D19&15T0.3
5/8/1.	[0]	156728-1000	SHIM D19&15T0.5
5/8/1.	[0]	156728-1100	SHIM D19&15T1.0
5/8/1.	[0]	156728-2000	SHIM D19&15T0.4
5/8/1.	[0]	156728-2100	SHIM D19&15T0.7
5/8/1.	[0]	156728-2100	SHIM D19&15T0.7
5/9/1.	[0]	156728-1200	SHIM D14&10.6T0.1
5/9/1.	[0]	156728-1200	SHIM D14&10.6T0.1
5/9/1.	[0]	156728-1300	SHIM D14&10.6T0.3
5/9/1.	[0]	156728-1400	SHIM D14&10.6T0.5
5/9/1.	[0]	156728-1500	SHIM D14&10.6T1.0
5/9/1.	[0]	156728-2200	SHIM D14&10.6T0.4
5/9/1.	[0]	156728-2300	SHIM D14&10.6T0.7
13.	[1]	156809-1520	COVER
13/2.	[1]	139648-0300	PACKING RING
13/3.	[1]	156315-0200	O-RING
20.	[2]	156806-0000	PIN
30.	[1]	156322-0000	LOCKING WASHER
31.	[1]	134325-0800	UNION NUT
33.	[1]	029331-0190	GASKET D14&10.2T1
34.	[1]	156316-0000	CAPSULE
35.	[1]	156314-0600	CAP
36.	[1]	156319-0200	GASKET
37.	[1]	156914-2200	PLATE
38.	[2]	020118-1640	BLEEDER SCREW
39.	[2]	014020-8140	PLAIN WASHER D16&8.5T1.2
40.	[1]	479770-5620	PULSE GENERATOR
41.	[1]	139316-0000	PLAIN WASHER D25&16.5T5

Include in #1:

107691-2541 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105681-5511

9 420 616 262
NP-EP/SPG1200-1470Z3/L

ME742945 MITSUBISHI

AUTOM. ADVANCE MECHANISM
K 14KP AUTOMATIC TIMER TIMER

Information:

Table 1
Required Parts (As determined by application)
Qty Part Number Part Name
1 365-2237 Return Hose Assembly
1 365-2240 Diesel Exhaust Fluid Line As
1 381-0887 Hose As
1 389-2659 Hose As
1 389-9428 Hose As
1 389-9430 Diesel Exhaust Fluid Line As
1 398-9452 Hose As
1 398-9454 Hose As
1 423-3515 Hose As
1 423-5899 Hose As
1 424-0073 Hose As
1 424-1553 Hose As
1 437-9866 Diesel Exhaust Fluid Line As
1 437-9867 Diesel Exhaust Fluid Line As
1 506-5811 Hose As
1 506-5812 Hose As
1 381-0888 Hose As
1 398-9455 Hose As
1 389-2660 Hose As
1 506-5801 Hose As
1 506-5802 Hose As The fault codes are listed in Table 2.
Table 2
J1939 Code and Description CDL Code and Description
4354–5
Aftertreatment 1 Diesel Exhaust Fluid Line
Heater 1 : current Below Normal 3110–5
Aftertreatment #1 SCR Catalyst Reagent Line
Heater #1 : Current Below Normal
4354–6
Aftertreatment 1 Diesel Exhaust Fluid Line
Heater 1 : current Below Normal 3110–6
Aftertreatment #1 SCR Catalyst Reagent Line
Heater #1 : Current Below Normal
4355–5
Aftertreatment 1 Diesel Exhaust Fluid Line
Heater 2 : current Below Normal 3111–5
Aftertreatment #1 SCR Catalyst Reagent Line
Heater #2 : Current Below Normal
4355–6
Aftertreatment 1 Diesel Exhaust Fluid Line
Heater 2: current Below Normal 3111–6
Aftertreatment #1 SCR Catalyst Reagent Line
Heater 2 : Current Below Normal
4356–5
Aftertreatment 1 Diesel Exhaust Fluid Line
Heater 3 : current Below Normal 3112–5
Aftertreatment #1 SCR Catalyst Reagent Line
Heater #3 : Current Below Normal
4356–6
Aftertreatment 1 Diesel Exhaust Fluid Line
Heater 3: current Below Normal 3112–6
Aftertreatment #1 SCR Catalyst Reagent Line
Heater #2 : Current Below Normal
