Information autom. advance mechanism
BOSCH
9 420 615 181
9420615181
ZEXEL
105681-5420
1056815420
MITSUBISHI
ME740413
me740413

Rating:
Scheme ###:

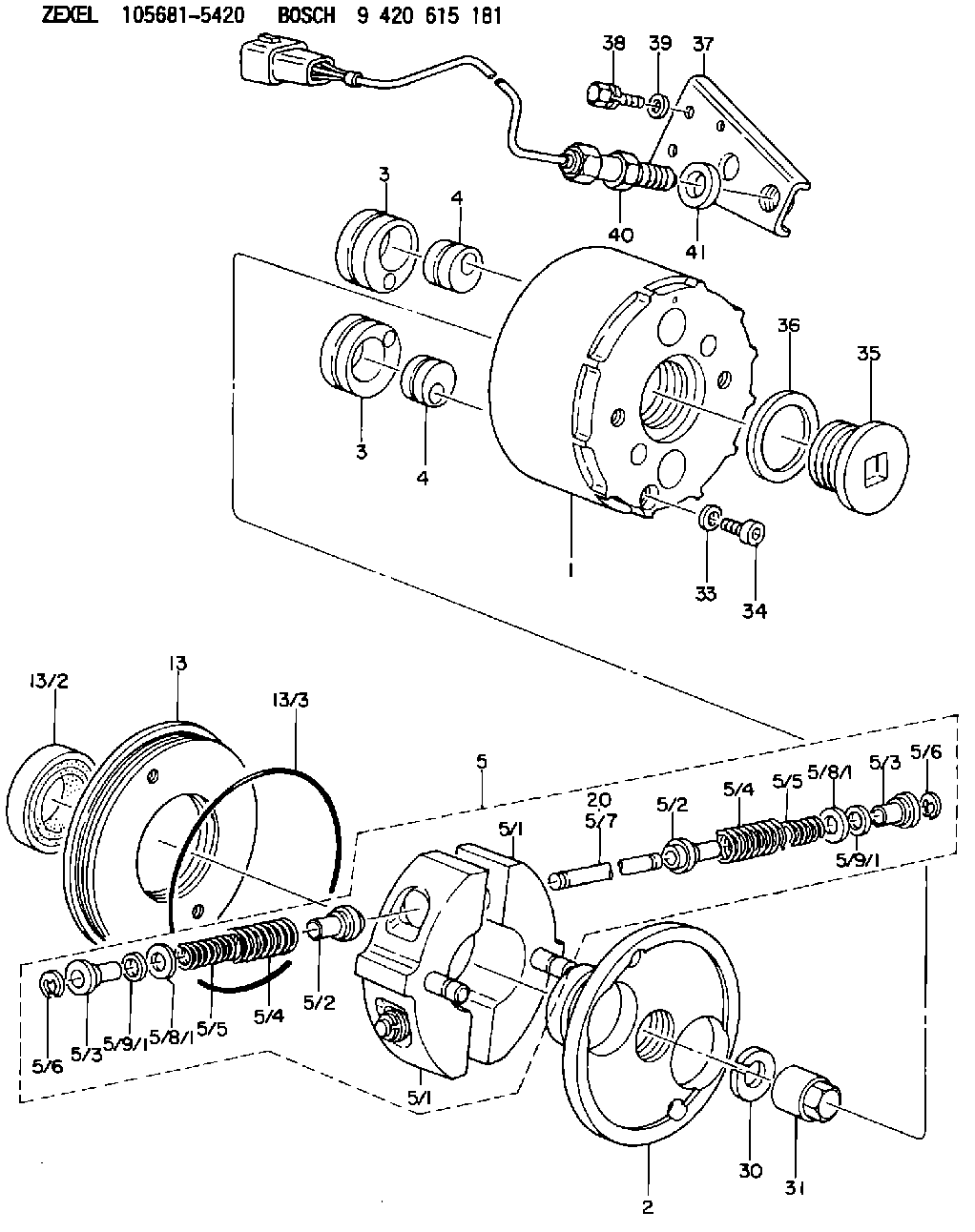

1. | [1] | 156800-3020 | TIMING-DEVICE HOUSING |
2. | [1] | 156801-5002 | FLANGE BUSHING |
3. | [2] | 156723-0300 | ECCENTRIC DISC |
3. | [2] | 156723-0300 | ECCENTRIC DISC |
4. | [2] | 156723-0400 | ECCENTRIC DISC |
4. | [2] | 156723-0400 | ECCENTRIC DISC |
5. | [1] | 156819-2220 | FLYWEIGHT ASSEMBLY |
5/1. | [2] | 156802-5620 | FLYWEIGHT |
5/1. | [2] | 156802-5620 | FLYWEIGHT |
5/2. | [4] | 156807-1100 | SLOTTED WASHER |
5/2. | [4] | 156807-1100 | SLOTTED WASHER |
5/3. | [4] | 156807-0900 | SLOTTED WASHER |
5/3. | [4] | 156807-0900 | SLOTTED WASHER |
5/4. | [4] | 156813-1400 | COMPRESSION SPRING |
5/4. | [4] | 156813-1400 | COMPRESSION SPRING |
5/5. | [4] | 156813-1600 | COMPRESSION SPRING |
5/5. | [4] | 156813-1600 | COMPRESSION SPRING |
5/6. | [4] | 156809-0300 | LOCKING WASHER |
5/6. | [4] | 156809-0300 | LOCKING WASHER |
5/7. | [2] | 156806-0900 | PIN |
5/8/1. | [0] | 156728-0800 | SHIM D19&15T0.1 |
5/8/1. | [0] | 156728-0800 | SHIM D19&15T0.1 |
5/8/1. | [0] | 156728-0900 | SHIM D19&15T0.3 |
5/8/1. | [0] | 156728-1000 | SHIM D19&15T0.5 |
5/8/1. | [0] | 156728-1100 | SHIM D19&15T1.0 |
5/8/1. | [0] | 156728-2000 | SHIM D19&15T0.4 |
5/8/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
5/9/1. | [0] | 156728-1200 | SHIM D14&10.6T0.1 |
5/9/1. | [0] | 156728-1300 | SHIM D14&10.6T0.3 |
5/9/1. | [0] | 156728-1400 | SHIM D14&10.6T0.5 |
5/9/1. | [0] | 156728-1500 | SHIM D14&10.6T1.0 |
5/9/1. | [0] | 156728-2200 | SHIM D14&10.6T0.4 |
5/9/1. | [0] | 156728-2300 | SHIM D14&10.6T0.7 |
5/9/1. | [0] | 156728-2300 | SHIM D14&10.6T0.7 |
13. | [1] | 156809-1520 | COVER |
13/2. | [1] | 139648-0300 | PACKING RING |
13/3. | [1] | 156315-0200 | O-RING |
20. | [2] | 156806-0000 | PIN |
30. | [1] | 156322-0000 | LOCKING WASHER |
31. | [1] | 134325-0800 | UNION NUT |
33. | [1] | 029331-0190 | GASKET D14&10.2T1 |
34. | [1] | 156316-0000 | CAPSULE |
35. | [1] | 156314-0600 | CAP |
36. | [1] | 156319-0200 | GASKET |
37. | [1] | 156914-3300 | PLATE |
38. | [2] | 020118-2240 | BLEEDER SCREW |
39. | [2] | 014020-8140 | PLAIN WASHER D16&8.5T1.2 |
40. | [1] | 479770-5120 | PULSE GENERATOR |
41. | [1] | 139316-0000 | PLAIN WASHER D25&16.5T5 |
Include in #1:
107691-2351
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105681-5420
ME740413 MITSUBISHI
AUTOM. ADVANCE MECHANISM
K 14KP AUTOMATIC TIMER TIMER
K 14KP AUTOMATIC TIMER TIMER
