Information autom. advance mechanism
BOSCH
9 420 616 650
9420616650
ZEXEL
105681-5290
1056815290
MITSUBISHI
ME738548
me738548
Rating:

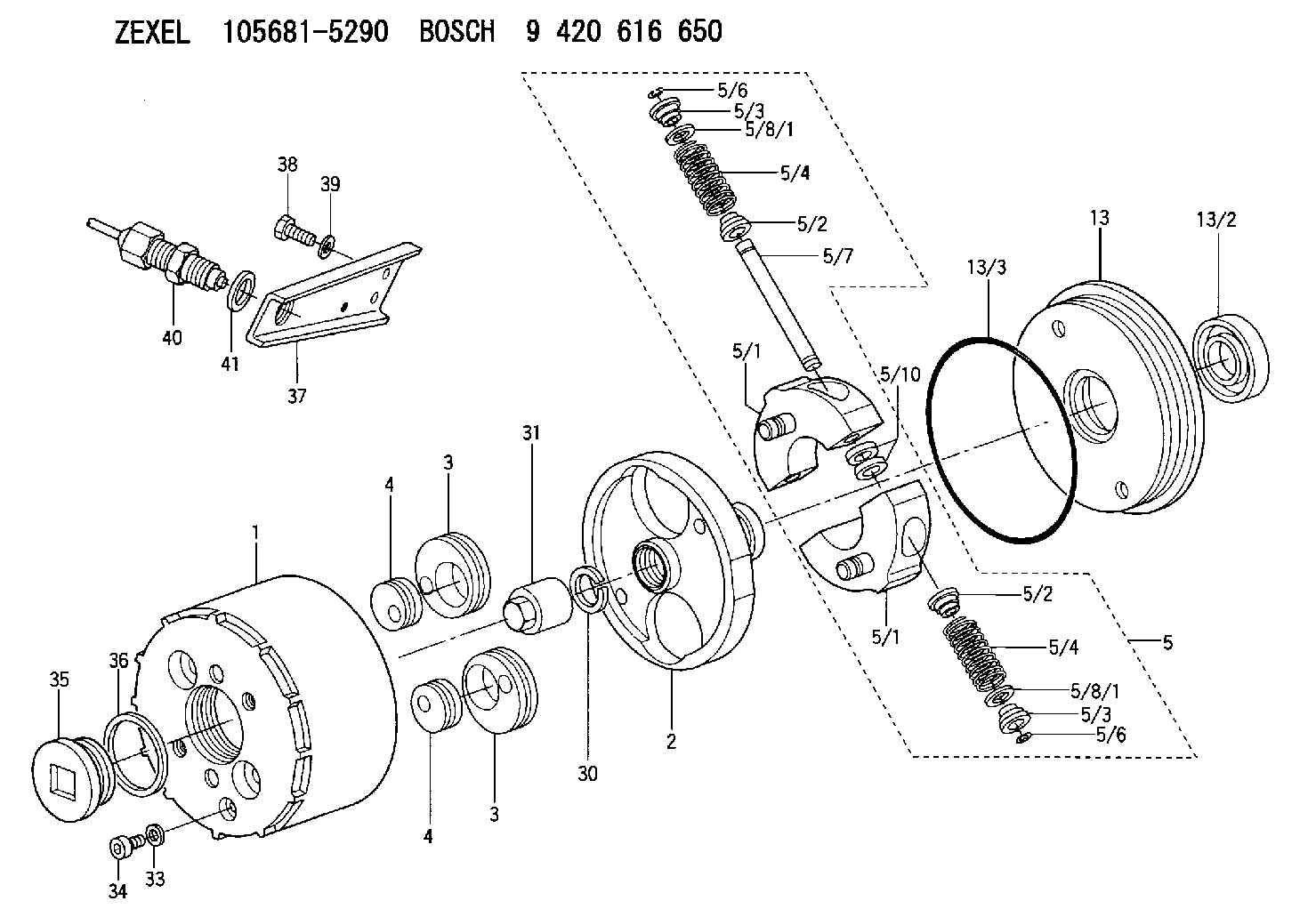

Scheme ###:
| 1. | [1] | 156800-2820 | TIMING-DEVICE HOUSING |
| 2. | [1] | 156801-3000 | FLANGE BUSHING |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 5. | [1] | 156819-0420 | FLYWEIGHT ASSEMBLY |
| 5/1. | [2] | 156802-3120 | FLYWEIGHT |
| 5/1. | [2] | 156802-3120 | FLYWEIGHT |
| 5/2. | [4] | 156807-1100 | SLOTTED WASHER |
| 5/2. | [4] | 156807-1100 | SLOTTED WASHER |
| 5/3. | [4] | 156807-0900 | SLOTTED WASHER |
| 5/3. | [4] | 156807-0900 | SLOTTED WASHER |
| 5/4. | [4] | 156816-6800 | COMPRESSION SPRING |
| 5/4. | [4] | 156816-6800 | COMPRESSION SPRING |
| 5/6. | [4] | 156809-0300 | LOCKING WASHER |
| 5/6. | [4] | 156809-0300 | LOCKING WASHER |
| 5/7. | [2] | 156806-0900 | PIN |
| 5/8/1. | [0] | 156728-0800 | SHIM D19&15T0.1 |
| 5/8/1. | [0] | 156728-0900 | SHIM D19&15T0.3 |
| 5/8/1. | [0] | 156728-0900 | SHIM D19&15T0.3 |
| 5/8/1. | [0] | 156728-1000 | SHIM D19&15T0.5 |
| 5/8/1. | [0] | 156728-1100 | SHIM D19&15T1.0 |
| 5/8/1. | [0] | 156728-2000 | SHIM D19&15T0.4 |
| 5/8/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
| 5/8/1. | [0] | 156728-2400 | SHIM D19&15T0.6 |
| 5/8/1. | [0] | 156728-2500 | SHIM D19&15T0.8 |
| 5/8/1. | [0] | 156728-2600 | SHIM D19&15T0.9 |
| 5/10. | [4] | 156808-0500 | SPACER BUSHING |
| 13. | [1] | 156809-1520 | COVER |
| 13/2. | [1] | 139648-0300 | PACKING RING |
| 13/3. | [1] | 156315-0200 | O-RING |
| 30. | [1] | 156322-0000 | LOCKING WASHER |
| 31. | [1] | 134325-0800 | UNION NUT |
| 33. | [1] | 029331-0190 | GASKET D14&10.2T1 |
| 34. | [1] | 156316-0000 | CAPSULE |
| 35. | [1] | 156314-0600 | CAP |
| 36. | [1] | 156319-0200 | GASKET |
| 37. | [1] | 156914-2200 | PLATE |
| 38. | [2] | 020118-1640 | BLEEDER SCREW |
| 39. | [2] | 014020-8140 | PLAIN WASHER D16&8.5T1.2 |
| 40. | [1] | 479770-3120 | PULSE GENERATOR |
| 41. | [1] | 139316-0000 | PLAIN WASHER D25&16.5T5 |
Include in #1:
107691-2042
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105681-5290
ME738548 MITSUBISHI
AUTOM. ADVANCE MECHANISM
K 14KP AUTOMATIC TIMER TIMER
K 14KP AUTOMATIC TIMER TIMER
