105681-5280 ZEXEL 9 420 616 955 BOSCH AUTOM. ADVANCE MECHANISM 9420616955 1056815280 me738547

Information autom. advance mechanism

BOSCH 9 420 616 955 9420616955

ZEXEL 105681-5280 1056815280

MITSUBISHI ME738547 me738547

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105681-5280 zexel genuine, new aftermarket engine parts with delivery

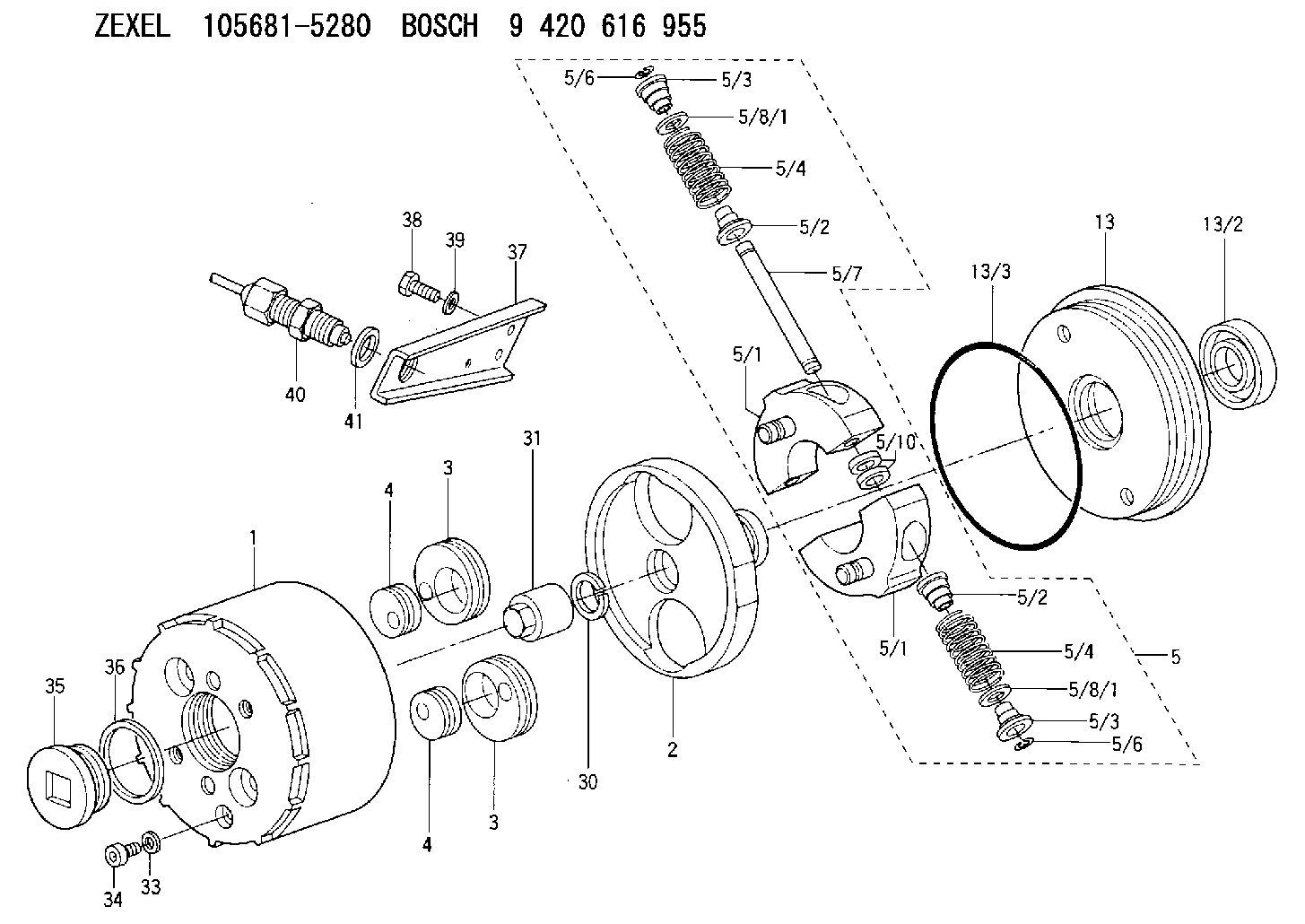

Scheme ###:

1.	[1]	156800-2820	TIMING-DEVICE HOUSING
2.	[1]	156801-3000	FLANGE BUSHING
3.	[2]	156723-0300	ECCENTRIC DISC
3.	[2]	156723-0300	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
5.	[1]	156819-0320	FLYWEIGHT ASSEMBLY
5/1.	[2]	156802-3120	FLYWEIGHT
5/1.	[2]	156802-3120	FLYWEIGHT
5/2.	[4]	156807-1100	SLOTTED WASHER
5/2.	[4]	156807-1100	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/4.	[4]	156817-0100	COMPRESSION SPRING
5/4.	[4]	156817-0100	COMPRESSION SPRING
5/6.	[4]	156809-0300	LOCKING WASHER
5/6.	[4]	156809-0300	LOCKING WASHER
5/7.	[2]	156806-0900	PIN
5/8/1.	[0]	156728-0800	SHIM D19&15T0.1
5/8/1.	[0]	156728-0900	SHIM D19&15T0.3
5/8/1.	[0]	156728-1000	SHIM D19&15T0.5
5/8/1.	[0]	156728-1100	SHIM D19&15T1.0
5/8/1.	[0]	156728-2000	SHIM D19&15T0.4
5/8/1.	[0]	156728-2100	SHIM D19&15T0.7
5/8/1.	[0]	156728-2400	SHIM D19&15T0.6
5/8/1.	[0]	156728-2500	SHIM D19&15T0.8
5/8/1.	[0]	156728-2600	SHIM D19&15T0.9
5/8/1.	[0]	156728-2600	SHIM D19&15T0.9
5/10.	[4]	156808-0500	SPACER BUSHING
13.	[1]	156809-1520	COVER
13/2.	[1]	139648-0300	PACKING RING
13/3.	[1]	156315-0200	O-RING
30.	[1]	156322-0000	LOCKING WASHER
31.	[1]	134325-0800	UNION NUT
33.	[1]	029331-0190	GASKET D14&10.2T1
34.	[1]	156316-0000	CAPSULE
35.	[1]	156314-0600	CAP
36.	[1]	156319-0200	GASKET
37.	[1]	156914-2200	PLATE
38.	[2]	020118-1640	BLEEDER SCREW
39.	[2]	014020-8140	PLAIN WASHER D16&8.5T1.2
40.	[1]	479770-3120	PULSE GENERATOR
41.	[1]	139316-0000	PLAIN WASHER D25&16.5T5

Include in #1:

107691-2032 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105681-5280

9 420 616 955
NP-EP/SPG1000-1075Z1.5DL

ME738547 MITSUBISHI

AUTOM. ADVANCE MECHANISM
K 14KP AUTOMATIC TIMER TIMER

Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
There have been some instances of issues with the following fuel injection pumps:
Table 1
Part Number Description
295-0435 Fuel Injection Pump Gp
348-6930 Pump
415-4313 Pump
420-4524 Fuel Injection Pump
422-5257 Fuel Injection Pump
443-3226 Fuel Injection Pump The issue may be reported as low engine power or the high idle speed may be inconsistent. Most issues have been reported below 200–300 hours of service.Solution
Note: Do not attempt to adjust the fuel pump or repair the fuel pump.Install a replacement fuel pump of the same part number. Refer to Disassembly and Assembly, Fuel Injection Pump - Remove and Disassembly and Assembly, Fuel Injection Pump - Install for the correct procedure.Retain the removed fuel pump for 30 days. The fuel pump will be requested for return using the Send It Back (SIB) process.
