105681-5210 ZEXEL 9 420 616 467 BOSCH AUTOM. ADVANCE MECHANISM 9420616467 1056815210 me738016

Information autom. advance mechanism

BOSCH 9 420 616 467 9420616467

ZEXEL 105681-5210 1056815210

MITSUBISHI ME738016 me738016

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105681-5210 zexel genuine, new aftermarket engine parts with delivery

Scheme ###:

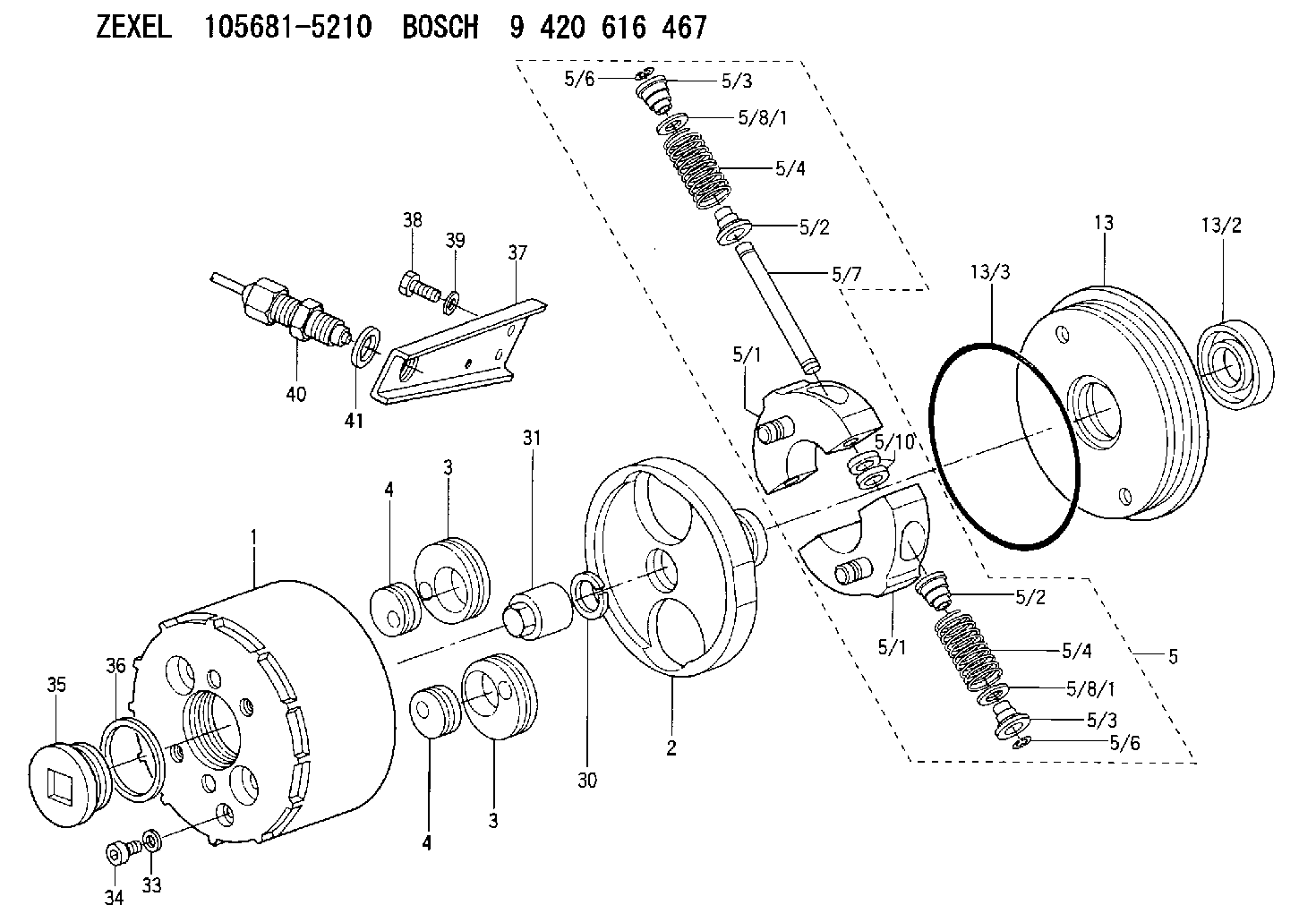

1.	[1]	156800-2820	TIMING-DEVICE HOUSING
2.	[1]	156801-3000	FLANGE BUSHING
3.	[2]	156723-0300	ECCENTRIC DISC
3.	[2]	156723-0300	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
5.	[1]	156818-8420	FLYWEIGHT ASSEMBLY
5/1.	[2]	156802-4220	FLYWEIGHT
5/1.	[2]	156802-4220	FLYWEIGHT
5/2.	[4]	156807-1100	SLOTTED WASHER
5/2.	[4]	156807-1100	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/4.	[4]	156816-6800	COMPRESSION SPRING
5/4.	[4]	156816-6800	COMPRESSION SPRING
5/6.	[4]	156809-0300	LOCKING WASHER
5/6.	[4]	156809-0300	LOCKING WASHER
5/7.	[2]	156806-0900	PIN
5/8/1.	[0]	156728-0800	SHIM D19&15T0.1
5/8/1.	[0]	156728-0900	SHIM D19&15T0.3
5/8/1.	[0]	156728-1000	SHIM D19&15T0.5
5/8/1.	[0]	156728-1100	SHIM D19&15T1.0
5/8/1.	[0]	156728-2000	SHIM D19&15T0.4
5/8/1.	[0]	156728-2100	SHIM D19&15T0.7
5/8/1.	[0]	156728-2400	SHIM D19&15T0.6
5/8/1.	[0]	156728-2500	SHIM D19&15T0.8
5/8/1.	[0]	156728-2600	SHIM D19&15T0.9
5/8/1.	[0]	156728-2600	SHIM D19&15T0.9
5/10.	[4]	156808-0500	SPACER BUSHING
13.	[1]	156809-1520	COVER
13/2.	[1]	139648-0300	PACKING RING
13/3.	[1]	156315-0200	O-RING
30.	[1]	156322-0000	LOCKING WASHER
31.	[1]	134325-0800	UNION NUT
33.	[1]	029331-0190	GASKET D14&10.2T1
34.	[1]	156316-0000	CAPSULE
35.	[1]	156314-0600	CAP
36.	[1]	156319-0200	GASKET
37.	[1]	156914-2200	PLATE
38.	[2]	020118-1640	BLEEDER SCREW
39.	[2]	014020-8140	PLAIN WASHER D16&8.5T1.2
40.	[1]	479770-3120	PULSE GENERATOR
41.	[1]	139316-0000	PLAIN WASHER D25&16.5T5

Include in #1:

107691-2040 as AUTOM. ADVANCE MECHANIS

107691-2080

107691-2081

Cross reference number

Zexel num

Bosch num

Firm num

Name

105681-5210

9 420 616 467

ME738016 MITSUBISHI

AUTOM. ADVANCE MECHANISM
* K
