105681-5130 ZEXEL 9 420 617 071 BOSCH AUTOM. ADVANCE MECHANISM 9420617071 1056815130

Information autom. advance mechanism

BOSCH 9 420 617 071 9420617071

ZEXEL 105681-5130 1056815130

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105681-5130 zexel genuine, new aftermarket engine parts with delivery

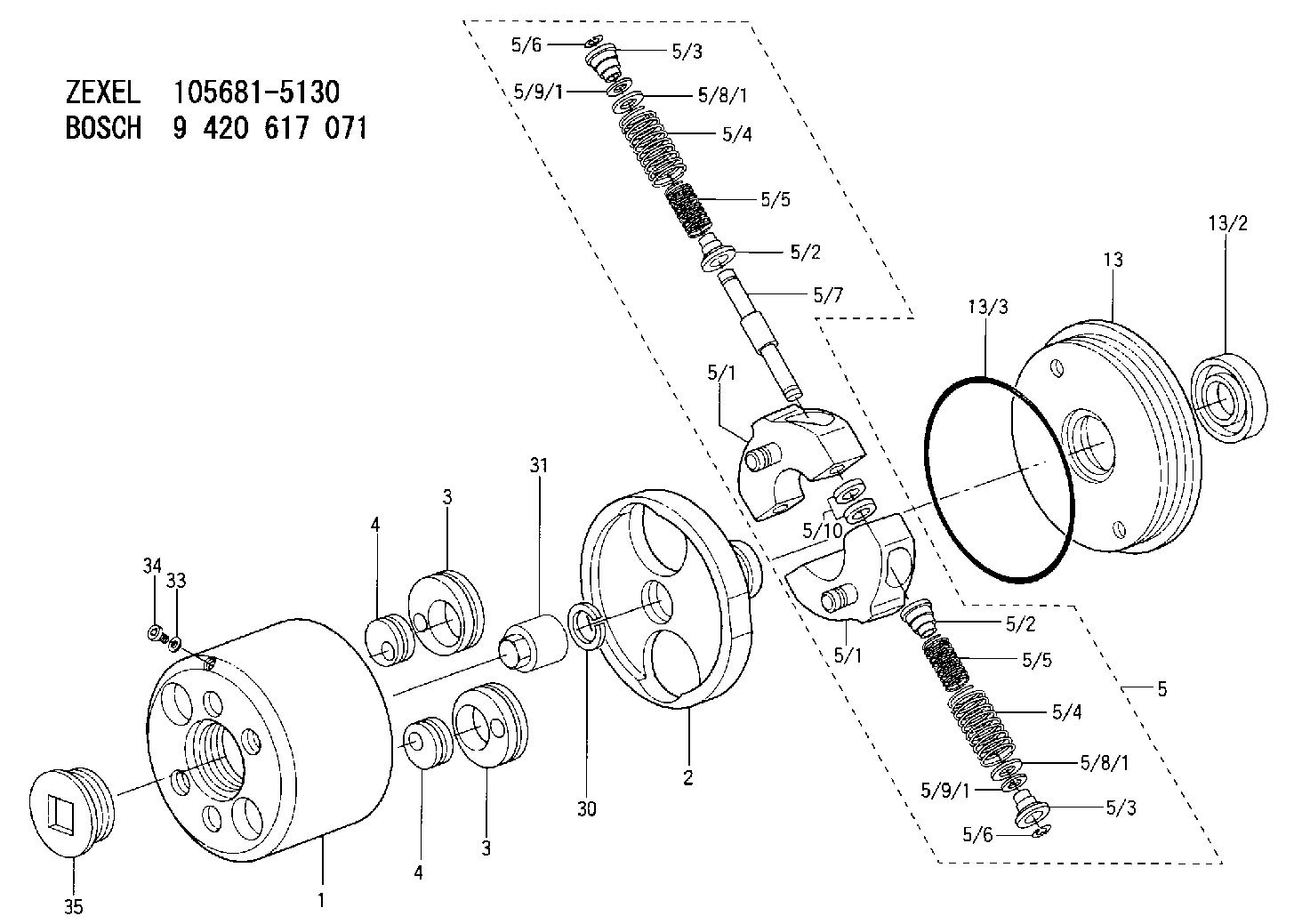

Scheme ###:

1.	[1]	156800-1320	TIMING-DEVICE HOUSING
2.	[1]	156801-5002	FLANGE BUSHING
3.	[2]	156723-0300	ECCENTRIC DISC
3.	[2]	156723-0300	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
5.	[1]	156818-5720	FLYWEIGHT ASSEMBLY
5/1.	[2]	156802-5420	FLYWEIGHT
5/1.	[2]	156802-5420	FLYWEIGHT
5/2.	[4]	156807-1100	SLOTTED WASHER
5/2.	[4]	156807-1100	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/4.	[4]	156816-5200	COMPRESSION SPRING
5/4.	[4]	156816-5200	COMPRESSION SPRING
5/5.	[4]	156816-5400	COMPRESSION SPRING
5/5.	[4]	156816-5400	COMPRESSION SPRING
5/6.	[4]	156809-0300	LOCKING WASHER
5/6.	[4]	156809-0300	LOCKING WASHER
5/7.	[2]	156806-0900	PIN
5/8/1.	[0]	156728-0800	SHIM D19&15T0.1
5/8/1.	[0]	156728-0900	SHIM D19&15T0.3
5/8/1.	[0]	156728-1000	SHIM D19&15T0.5
5/8/1.	[0]	156728-1100	SHIM D19&15T1.0
5/8/1.	[0]	156728-2000	SHIM D19&15T0.4
5/8/1.	[0]	156728-2100	SHIM D19&15T0.7
5/8/1.	[0]	156728-2400	SHIM D19&15T0.6
5/8/1.	[0]	156728-2400	SHIM D19&15T0.6
5/8/1.	[0]	156728-2500	SHIM D19&15T0.8
5/8/1.	[0]	156728-2600	SHIM D19&15T0.9
5/9/1.	[0]	156728-1200	SHIM D14&10.6T0.1
5/9/1.	[0]	156728-1300	SHIM D14&10.6T0.3
5/9/1.	[0]	156728-1400	SHIM D14&10.6T0.5
5/9/1.	[0]	156728-1400	SHIM D14&10.6T0.5
5/9/1.	[0]	156728-1500	SHIM D14&10.6T1.0
5/9/1.	[0]	156728-2200	SHIM D14&10.6T0.4
5/9/1.	[0]	156728-2300	SHIM D14&10.6T0.7
5/9/1.	[0]	156728-2700	SHIM D14&10.6T0.6
5/9/1.	[0]	156728-2800	SHIM D14&10.6T0.8
5/9/1.	[0]	156728-2900	SHIM D14&10.6T0.9
5/10.	[4]	156808-0500	SPACER BUSHING
13.	[1]	156809-1520	COVER
13/2.	[1]	139648-0300	PACKING RING
13/3.	[1]	156315-0200	O-RING
30.	[1]	156322-0000	LOCKING WASHER
31.	[1]	134325-0800	UNION NUT
33.	[1]	029331-0190	GASKET D14&10.2T1
34.	[1]	156316-0000	CAPSULE
35.	[1]	156314-0501	CAP

Include in #1:

106671-8540 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105681-5130

9 420 617 071

AUTOM. ADVANCE MECHANISM
* K
