Information autom. advance mechanism
BOSCH
9 420 617 106
9420617106
ZEXEL
105681-4270
1056814270
Rating:

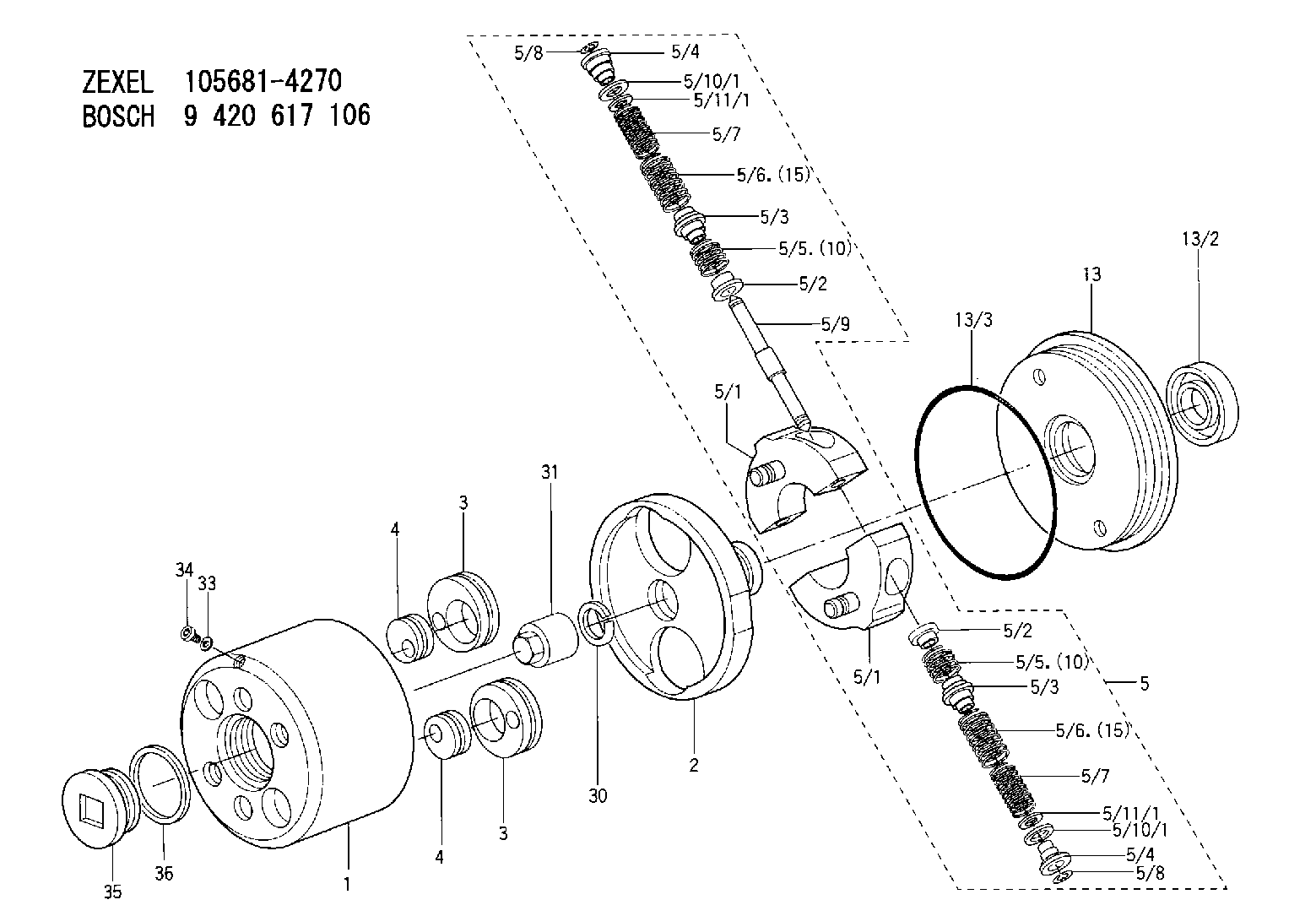

Scheme ###:
| 1. | [1] | 156800-3320 | TIMING-DEVICE HOUSING |
| 2. | [1] | 156801-2500 | FLANGE BUSHING |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 5. | [1] | 156818-3420 | FLYWEIGHT ASSEMBLY |
| 5/1. | [2] | 156802-2020 | FLYWEIGHT |
| 5/1. | [2] | 156802-2020 | FLYWEIGHT |
| 5/2. | [4] | 156807-0800 | SLOTTED WASHER |
| 5/2. | [4] | 156807-0800 | SLOTTED WASHER |
| 5/3. | [4] | 156727-0200 | SLOTTED WASHER |
| 5/3. | [4] | 156727-0200 | SLOTTED WASHER |
| 5/4. | [4] | 156807-1200 | SLOTTED WASHER |
| 5/4. | [4] | 156807-1200 | SLOTTED WASHER |
| 5/5. | [4] | 156816-1100 | COMPRESSION SPRING |
| 5/5. | [4] | 156816-1100 | COMPRESSION SPRING |
| 5/6. | [4] | 156816-1300 | COMPRESSION SPRING |
| 5/6. | [4] | 156816-1300 | COMPRESSION SPRING |
| 5/7. | [4] | 156816-0900 | COMPRESSION SPRING |
| 5/7. | [4] | 156816-0900 | COMPRESSION SPRING |
| 5/8. | [4] | 156729-0500 | LOCKING WASHER |
| 5/8. | [4] | 156729-0500 | LOCKING WASHER |
| 5/9. | [2] | 156806-0121 | PIN |
| 5/10/1. | [0] | 156728-0800 | SHIM D19&15T0.1 |
| 5/10/1. | [0] | 156728-0900 | SHIM D19&15T0.3 |
| 5/10/1. | [0] | 156728-1000 | SHIM D19&15T0.5 |
| 5/10/1. | [0] | 156728-1100 | SHIM D19&15T1.0 |
| 5/10/1. | [0] | 156728-2000 | SHIM D19&15T0.4 |
| 5/10/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
| 5/10/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
| 5/10/1. | [0] | 156728-2400 | SHIM D19&15T0.6 |
| 5/10/1. | [0] | 156728-2500 | SHIM D19&15T0.8 |
| 5/10/1. | [0] | 156728-2600 | SHIM D19&15T0.9 |
| 5/11/1. | [0] | 156728-1200 | SHIM D14&10.6T0.1 |
| 5/11/1. | [0] | 156728-1300 | SHIM D14&10.6T0.3 |
| 5/11/1. | [0] | 156728-1400 | SHIM D14&10.6T0.5 |
| 5/11/1. | [0] | 156728-1500 | SHIM D14&10.6T1.0 |
| 5/11/1. | [0] | 156728-2200 | SHIM D14&10.6T0.4 |
| 5/11/1. | [0] | 156728-2300 | SHIM D14&10.6T0.7 |
| 5/11/1. | [0] | 156728-2700 | SHIM D14&10.6T0.6 |
| 5/11/1. | [0] | 156728-2800 | SHIM D14&10.6T0.8 |
| 5/11/1. | [0] | 156728-2800 | SHIM D14&10.6T0.8 |
| 5/11/1. | [0] | 156728-2900 | SHIM D14&10.6T0.9 |
| 10. | [4] | 156816-1000 | COMPRESSION SPRING |
| 10. | [4] | 156816-1000 | COMPRESSION SPRING |
| 10B. | [4] | 156805-3500 | COMPRESSION SPRING |
| 13. | [1] | 156809-1620 | COVER |
| 13/2. | [1] | 139648-0300 | PACKING RING |
| 13/3. | [1] | 156315-0200 | O-RING |
| 15. | [4] | 156816-1200 | COMPRESSION SPRING |
| 15. | [4] | 156816-1200 | COMPRESSION SPRING |
| 30. | [1] | 156322-0000 | LOCKING WASHER |
| 31. | [1] | 134325-0800 | UNION NUT |
| 33. | [1] | 029331-0190 | GASKET D14&10.2T1 |
| 34. | [1] | 156316-0000 | CAPSULE |
| 35. | [1] | 156314-0600 | CAP |
| 36. | [1] | 156319-0200 | GASKET |
Include in #1:
106691-0036
as AUTOM. ADVANCE MECHANIS
