105681-2880 ZEXEL 9 420 617 156 BOSCH AUTOM. ADVANCE MECHANISM 9420617156 1056812880 me756372

Information autom. advance mechanism

BOSCH 9 420 617 156 9420617156

ZEXEL 105681-2880 1056812880

MITSUBISHI ME756372 me756372

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105681-2880 zexel genuine, new aftermarket engine parts with delivery

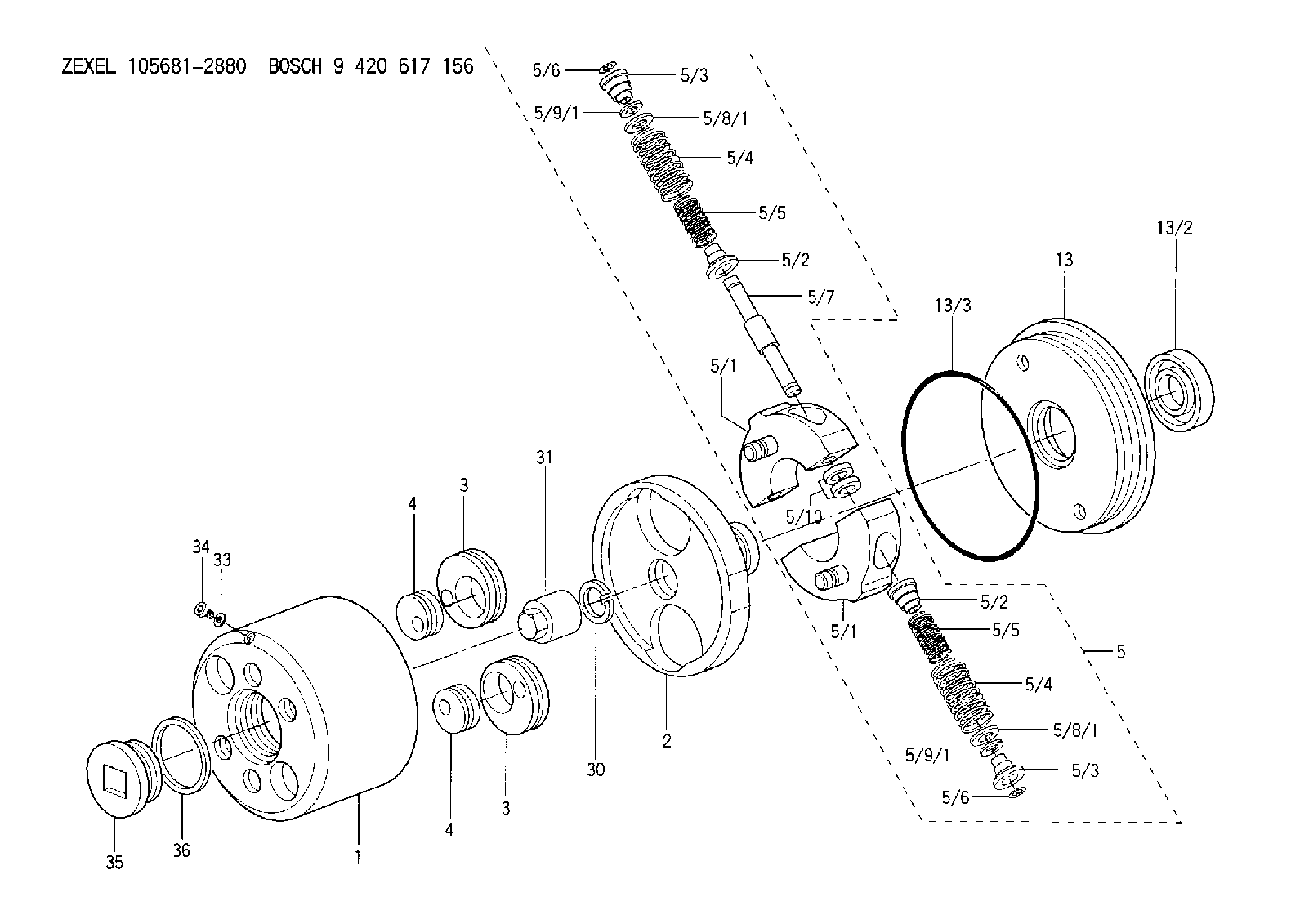

Scheme ###:

1.	[1]	156800-2620	TIMING-DEVICE HOUSING
2.	[1]	156801-2800	FLANGE BUSHING
3.	[2]	156723-0300	ECCENTRIC DISC
3.	[2]	156723-0300	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
5.	[1]	156898-9220	FLYWEIGHT ASSEMBLY
5/1.	[2]	156802-2720	FLYWEIGHT
5/1.	[2]	156802-2720	FLYWEIGHT
5/2.	[4]	156807-1100	SLOTTED WASHER
5/2.	[4]	156807-1100	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/4.	[4]	156896-8100	COMPRESSION SPRING
5/4.	[4]	156896-8100	COMPRESSION SPRING
5/5.	[4]	156897-7000	COMPRESSION SPRING
5/5.	[4]	156897-7000	COMPRESSION SPRING
5/6.	[4]	156809-0300	LOCKING WASHER
5/6.	[4]	156809-0300	LOCKING WASHER
5/7.	[2]	156806-0900	PIN
5/8/1.	[0]	156728-0800	SHIM D19&15T0.1
5/8/1.	[0]	156728-0800	SHIM D19&15T0.1
5/8/1.	[0]	156728-0900	SHIM D19&15T0.3
5/8/1.	[0]	156728-1000	SHIM D19&15T0.5
5/8/1.	[0]	156728-1100	SHIM D19&15T1.0
5/8/1.	[0]	156728-2000	SHIM D19&15T0.4
5/8/1.	[0]	156728-2100	SHIM D19&15T0.7
5/8/1.	[0]	156728-2400	SHIM D19&15T0.6
5/8/1.	[0]	156728-2500	SHIM D19&15T0.8
5/8/1.	[0]	156728-2600	SHIM D19&15T0.9
5/9/1.	[0]	156728-1200	SHIM D14&10.6T0.1
5/9/1.	[0]	156728-1200	SHIM D14&10.6T0.1
5/9/1.	[0]	156728-1300	SHIM D14&10.6T0.3
5/9/1.	[0]	156728-1400	SHIM D14&10.6T0.5
5/9/1.	[0]	156728-1500	SHIM D14&10.6T1.0
5/9/1.	[0]	156728-2200	SHIM D14&10.6T0.4
5/9/1.	[0]	156728-2300	SHIM D14&10.6T0.7
5/9/1.	[0]	156728-2700	SHIM D14&10.6T0.6
5/9/1.	[0]	156728-2800	SHIM D14&10.6T0.8
5/9/1.	[0]	156728-2900	SHIM D14&10.6T0.9
5/10.	[4]	156808-0500	SPACER BUSHING
13.	[1]	156809-1620	COVER
13/2.	[1]	139648-0300	PACKING RING
13/3.	[1]	156315-0200	O-RING
30.	[1]	156322-0000	LOCKING WASHER
31.	[1]	134325-0800	UNION NUT
33.	[1]	029331-0190	GASKET
34.	[1]	156316-0000	CAPSULE
35.	[1]	156314-0600	CAP
36.	[1]	156319-0200	GASKET

Include in #1:

106873-2182 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105681-2880

9 420 617 156

ME756372 MITSUBISHI

AUTOM. ADVANCE MECHANISM
K 14KL AUTOMATIC TIMER TIMER SPG TIMER

Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
Fuel Injectors in 797F powered Off-Highway Trucks engines are not reaching expected mid-life target. The typical failure mode is a "-2" or a "-7" code on the fuel injectors.Solution
This will be an interim troubleshooting procedure to follow for trucks running with a special test software. Prior to executing this procedure, utilize Cat ® Electronic Technician (Cat ET) or Advisor to verify if any logged codes have been logged. Certain injector diagnostics do not notify the operator or light the check engine light upon activation."Fuel system verification-Test" procedure applies to trucks running with following software versions only.
Engine - LRC 3655600-31 (Test)
Engine - Tier II 5297866-05 (Test)
Engine - HAA (4x2) 3253178-39 (Test)
Engine - Tier II Custom 4727209-12 (Test)Troubleshooting Procedure
Table 1
Troubleshooting Test Steps Values Results
1. Check for Diagnostic Codes
A. Establish communication between Cat® (Electronic Technician) ET and the engine ECM. Cat ET must be configured for Dual Data Link Communications to perform this procedure. Refer to Troubleshooting, "Electronic Service Tools", if necessary.
B. Determine the diagnostic code that relates to an injector. Codes
Result: A -2 code is present.
Repair: Perform the following procedure:
1. Do not clear the diagnostic code.
Access the Fuel System Verification Test by accessing the following display screens:
- Diagnostics
- Diagnostic Tests
- Fuel System Verification Test
3. Perform the Fuel System Verification Test.
If the injector passes the test, the injector is "OK". Cat ET will clear the code.
Result: If the injector fails the test, perform the following procedure:
a. Replace the injector.
b. Flash program the trim file for the new injector into the ECM. Refer to Troubleshooting, "Injector Trim File - Install", if necessary.
c. Perform the Fuel System Verification Test again. This test will clear the active diagnostic code for the new injector. Verify that the original condition has been resolved.
Result: If the test
