105681-2600 ZEXEL 9 420 616 304 BOSCH AUTOM. ADVANCE MECHANISM 9420616304 1056812600 16810z5814




Information autom. advance mechanism

BOSCH 9 420 616 304 9420616304
ZEXEL 105681-2600 1056812600
NISSAN-DIESEL 16810Z5814 16810z5814
105681-2600 AUTOM. ADVANCE MECHANISM
Rating:
68
Buy AUTOM. ADVANCE MECHANISM 105681-2600 zexel genuine, new aftermarket engine parts with delivery

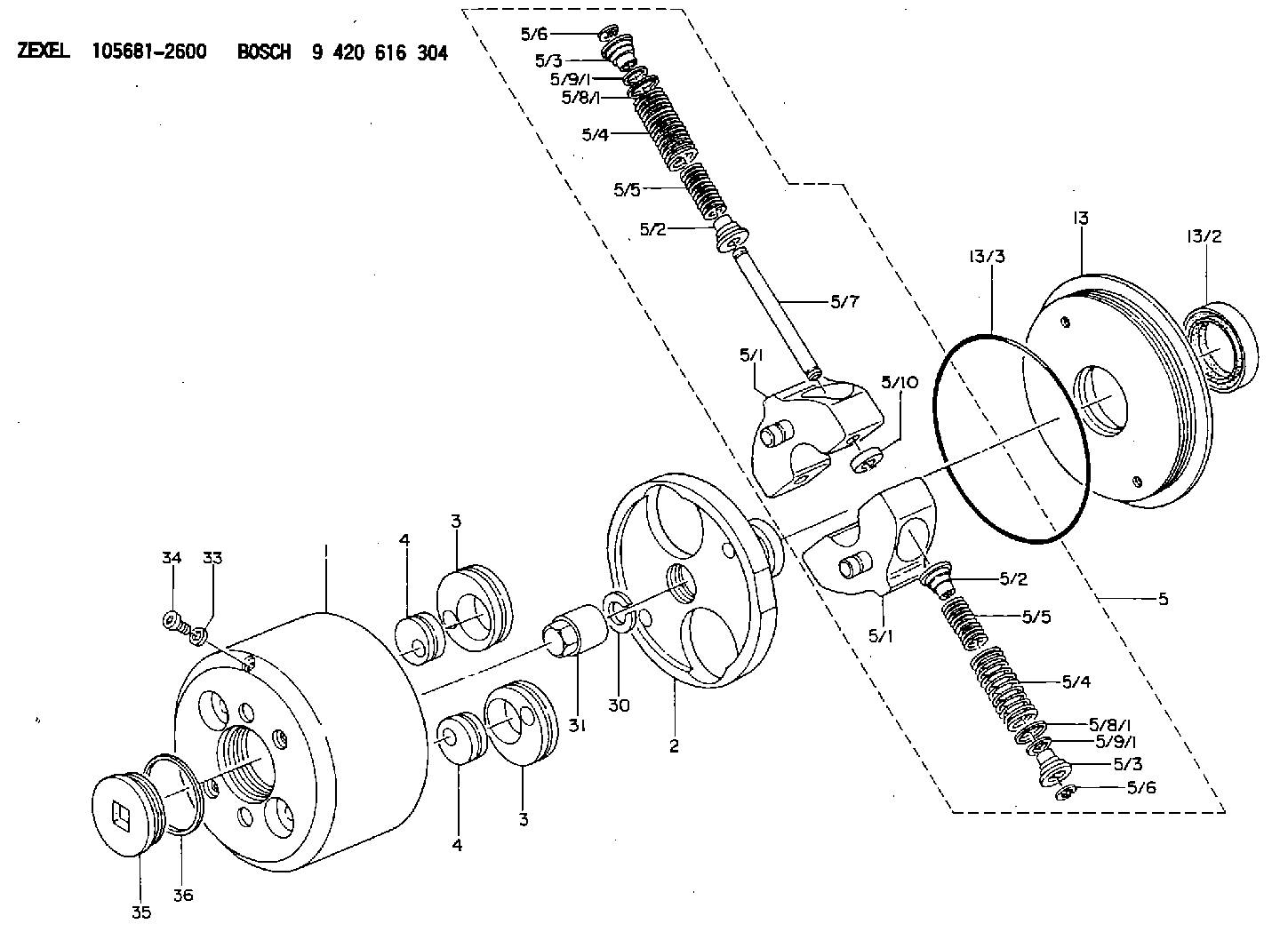

Scheme ###:

1. [1] 156800-3220 TIMING-DEVICE HOUSING
2. [1] 156801-2200 FLANGE BUSHING
3. [2] 156723-0300 ECCENTRIC DISC
3. [2] 156723-0300 ECCENTRIC DISC
4. [2] 156723-0400 ECCENTRIC DISC
4. [2] 156723-0400 ECCENTRIC DISC
5. [1] 156898-3320 FLYWEIGHT ASSEMBLY
5/1. [2] 156802-8820 FLYWEIGHT
5/1. [2] 156802-8820 FLYWEIGHT
5/2. [4] 156807-1100 SLOTTED WASHER
5/2. [4] 156807-1100 SLOTTED WASHER
5/3. [4] 156807-0900 SLOTTED WASHER
5/3. [4] 156807-0900 SLOTTED WASHER
5/4. [4] 156897-9900 COMPRESSION SPRING
5/4. [4] 156897-9900 COMPRESSION SPRING
5/5. [4] 156897-9800 COMPRESSION SPRING
5/5. [4] 156897-9800 COMPRESSION SPRING
5/6. [4] 156809-0300 LOCKING WASHER
5/6. [4] 156809-0300 LOCKING WASHER
5/7. [2] 156806-0900 PIN
5/8/1. [0] 156728-0800 SHIM D19&15T0.1
5/8/1. [0] 156728-0900 SHIM D19&15T0.3
5/8/1. [0] 156728-1000 SHIM D19&15T0.5
5/8/1. [0] 156728-1000 SHIM D19&15T0.5
5/8/1. [0] 156728-1100 SHIM D19&15T1.0
5/8/1. [0] 156728-2000 SHIM D19&15T0.4
5/8/1. [0] 156728-2100 SHIM D19&15T0.7
5/9/1. [0] 156728-1200 SHIM D14&10.6T0.1
5/9/1. [0] 156728-1300 SHIM D14&10.6T0.3
5/9/1. [0] 156728-1400 SHIM D14&10.6T0.5
5/9/1. [0] 156728-1500 SHIM D14&10.6T1.0
5/9/1. [0] 156728-1500 SHIM D14&10.6T1.0
5/9/1. [0] 156728-2200 SHIM D14&10.6T0.4
5/9/1. [0] 156728-2300 SHIM D14&10.6T0.7
5/10. [2] 156808-0800 SPACER BUSHING
13. [1] 156809-2620 COVER
13/2. [1] 139648-0600 PACKING RING
13/3. [1] 156315-0200 O-RING
30. [1] 156322-0000 LOCKING WASHER
31. [1] 134325-0800 UNION NUT
33. [1] 029331-0190 GASKET D14&10.2T1
34. [1] 156316-0000 CAPSULE
35. [1] 156314-0600 CAP
36. [1] 156319-0200 GASKET

Include in #1:

107691-0153 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num
Bosch num
Firm num
Name
105681-2600
9 420 616 304
NP-EP/SPG1100-1300Z4/R
16810Z5814  NISSAN-DIESEL
AUTOM. ADVANCE MECHANISM
K




Information:


Illustration 5 g06198951
70-Pin connector
(5) Pin 4
(6) Pin 24
Illustration 6 g06198953
40-Pin connector
(7) Pin 4
(8) Pin 24
Using the appropriate terminal extraction tool, remove the red and black wires from positions 4 and 24 of the connector. Refer to Illustration 5 and 6.
Route the extracted wires out of the engine harness and insert the wires into 3E-3370 Connector Receptacle As supplied with 517-0586 Engine Harness As. Red wire in position 1 and Black wire in position 2.Note: Minor cutting of the boot may be required.
Install the Red wire from 517-0586 Engine Harness As into position 4 of the Machine Interface Connector and install the Black wire into position 24 of the connector.
Illustration 7 g06237613
70 Pin Harness
(A) Pin 4 From Machine Interface Harness Connector
(B) Pin 24 From Machine Interface Harness Connector
(C) Pyrometer Harness Interface Connector
(D) Machine Interface Connector
Illustration 8 g06237606
40 Pin Harness
(A) Pin 4 From Machine Interface Harness Connector
(B) Pin 24 From Machine Interface Harness Connector
(E) Flying Power Leads from 514-3813 Harness As to 2 Pin Connector
(F) Machine Interface Connector
If the Pyrometer Interface Harness connector is a 70 pin, Route 517-0586 Engine Harness As to the Pyrometer Harness Interface connector and install Red wire into position 70 and the Black wire into position 69. If the Pyrometer Interface Harness connector is a 40 pin, install the Red wire into pin 1 of a 2-pin receptacle and the Black wire into pin 2. This connector will then connect to G-C3 of 514-3813 Engine Harness As.
With the engine powered, use a digital multimeter to verify that 24V power is present at the Pyrometer Harness Interface connector.Installation of 510-4068 Electronic Control Gp (Pyrometer)
Attach 489-3081 Harness As to 510-4068 Electronic Control Gp (Pyrometer) and the Pyrometer Interface Connector. Using 489-3081 Engine Harness As as a gauge, temporarily install the module on an appropriate place as per the choice of installer.Installation of 505-1731 Engine Harness As
If the engine under test is a 16 cylinder instead of a 20 cylinder, 505-1731 Engine Harness As can be installed between 489-3081 Engine Harness As and 510-4068 Electronic Control Gp.Installation of 489-3081 Engine Harness As
Perform the following procedure to install 489-3081 Engine Harness As:
Install 504-3341 Engine Harness As on the service port connector of 489-3081 Engine Harness As.
Route 504-3341 Engine Harness As to a safe location before performing tests.Note: Attach 140-9442 "Y" Adapter Cable As in order to see all the machine ECMs. Connect 504-3341 Monitor Harness As to "Y", connect other leg to Machine Service port and the third leg to Communication Adapter.Overview and Configuration On Caterpillar Electronic Technician (Cat ET)
This section will describe the overview and configuration setting on Cat ET.Cat ET Screen - Standard View
Perform the following instructions once the system is installed:
Connect to communications adapter and launch Cat ET.
Illustration 9 g06198935
After connecting, under "Available ECM(s)" select "Digital Pyrometer #1".
Illustration 10 g06199349
(9) Status button
Select the "Status" (9) button in the toolbar and then the parameters of "Digital Pyrometer #1" will appear.
Selecting "Engine Cylinder Temperature - 1"
