105681-2210 ZEXEL 9 420 615 175 BOSCH AUTOM. ADVANCE MECHANISM 9420615175 1056812210 me742244

Information autom. advance mechanism

BOSCH 9 420 615 175 9420615175

ZEXEL 105681-2210 1056812210

MITSUBISHI ME742244 me742244

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105681-2210 zexel genuine, new aftermarket engine parts with delivery

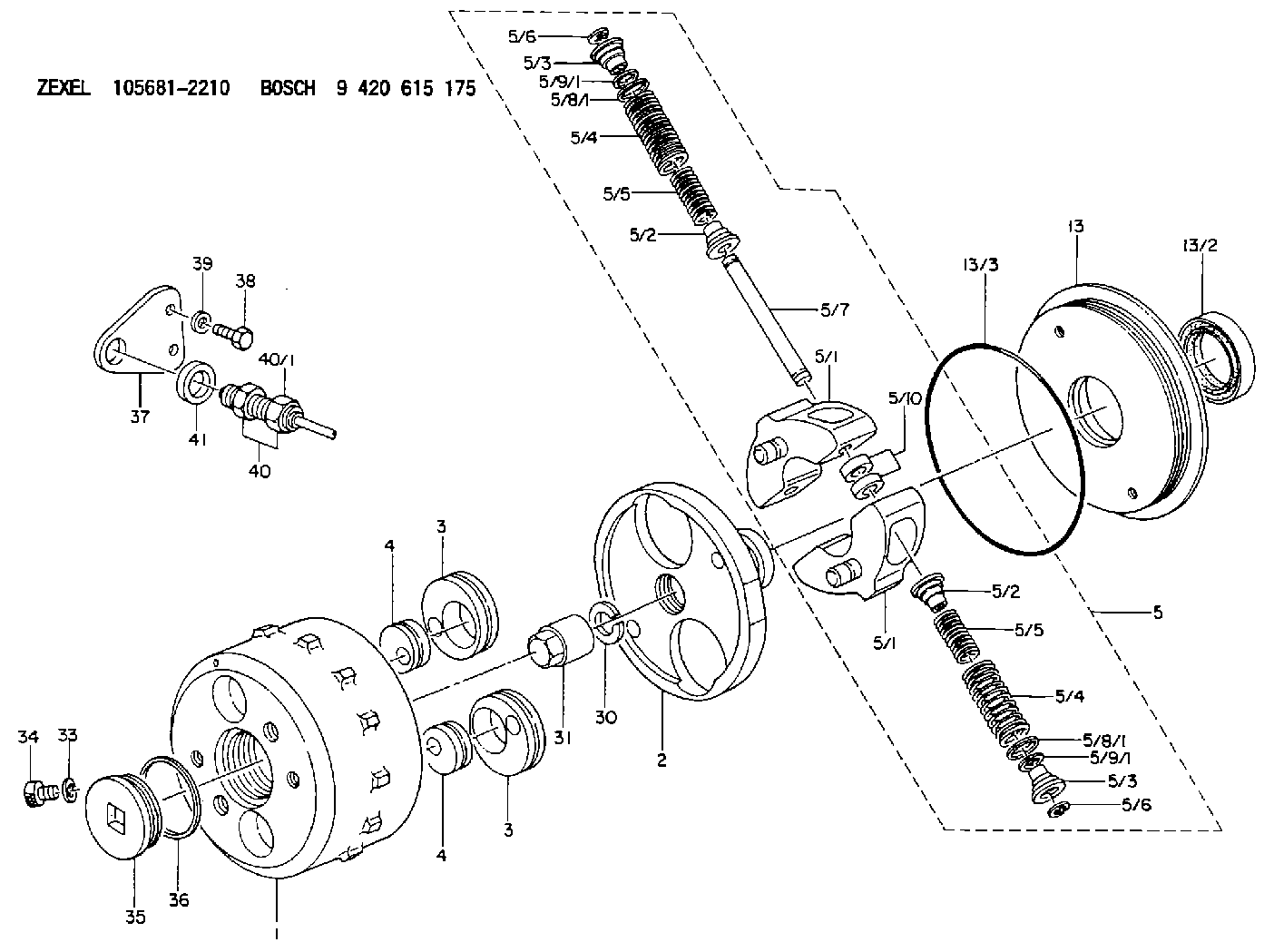

Scheme ###:

1.	[1]	156800-3920	TIMING-DEVICE HOUSING
2.	[1]	156801-1700	FLANGE BUSHING
3.	[2]	156723-0300	ECCENTRIC DISC
3.	[2]	156723-0300	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
5.	[1]	156819-8120	FLYWEIGHT ASSEMBLY
5/1.	[2]	156802-7220	FLYWEIGHT
5/1.	[2]	156802-7220	FLYWEIGHT
5/2.	[4]	156807-1100	SLOTTED WASHER
5/2.	[4]	156807-1100	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/4.	[4]	156895-8700	COMPRESSION SPRING
5/4.	[4]	156895-8700	COMPRESSION SPRING
5/5.	[4]	156895-8800	COMPRESSION SPRING
5/5.	[4]	156895-8800	COMPRESSION SPRING
5/6.	[4]	156809-0300	LOCKING WASHER
5/6.	[4]	156809-0300	LOCKING WASHER
5/7.	[2]	156806-0900	PIN
5/8/1.	[0]	156728-0800	SHIM D19&15T0.1
5/8/1.	[0]	156728-0900	SHIM D19&15T0.3
5/8/1.	[0]	156728-1000	SHIM D19&15T0.5
5/8/1.	[0]	156728-1000	SHIM D19&15T0.5
5/8/1.	[0]	156728-1000	SHIM D19&15T0.5
5/8/1.	[0]	156728-1100	SHIM D19&15T1.0
5/8/1.	[0]	156728-2000	SHIM D19&15T0.4
5/8/1.	[0]	156728-2100	SHIM D19&15T0.7
5/9/1.	[0]	156728-1200	SHIM D14&10.6T0.1
5/9/1.	[0]	156728-1300	SHIM D14&10.6T0.3
5/9/1.	[0]	156728-1400	SHIM D14&10.6T0.5
5/9/1.	[0]	156728-1500	SHIM D14&10.6T1.0
5/9/1.	[0]	156728-1500	SHIM D14&10.6T1.0
5/9/1.	[0]	156728-1500	SHIM D14&10.6T1.0
5/9/1.	[0]	156728-2200	SHIM D14&10.6T0.4
5/9/1.	[0]	156728-2300	SHIM D14&10.6T0.7
5/10.	[4]	156808-0500	SPACER BUSHING
13.	[1]	156809-1620	COVER
13/2.	[1]	139648-0300	PACKING RING
13/3.	[1]	156315-0200	O-RING
30.	[1]	156322-0000	LOCKING WASHER
31.	[1]	134325-0800	UNION NUT
33.	[1]	029331-0190	GASKET D14&10.2T1
34.	[1]	156316-0000	CAPSULE
35.	[1]	156314-0501	CAP
37.	[1]	156914-1500	PLATE
38.	[2]	020118-1640	BLEEDER SCREW
39.	[2]	014020-8140	PLAIN WASHER D16&8.5T1.2
40.	[1]	479770-8220	PULSE GENERATOR
40/1.	[1]	479770-8200	PULSE GENERATOR
41.	[1]	139316-0000	PLAIN WASHER D25&16.5T5

Include in #1:

107691-2560 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105681-2210

9 420 615 175

ME742244 MITSUBISHI

AUTOM. ADVANCE MECHANISM
* K 14KL TIMER SPG TIMER

Information:

Introduction
The problem that is identified below does not have a permanent solution. Until a permanent solution is known, use the solution that is listed below.Problem
A significant amount of HEUI pumps and injectors have been returned, but no cause of failure can be determined.Solution
Diagnostic procedures have been updated and have been incorporated into the following publications:
Special Instruction, REHS3819, "Procedure for Troubleshooting and Cleaning the Oil Rail System for the Hydraulic Electronic Unit Injector (HEUI)"
Troubleshooting, "Injection Actuation Pressure - Test"Note: These publications have been translated into Mandarin and Spanish.In addition, a new troubleshooting checklist is included with all service repair for HUEI pumps and HEUI injectors. The checklist is a summary of the diagnostic procedure steps to be confirmed before a suspect component is replaced. The checklist must be completed and returned with the suspect components in order to aid engineering to determine the cause of failure.Following the instructions step-by-step is critical in order to diagnose the failed component correctly. Do not skip steps in the procedures. Skipping steps in the procedure will lead to incorrect diagnosis of the problem.
