105681-1570 ZEXEL 9 420 616 050 BOSCH AUTOM. ADVANCE MECHANISM 9420616050 1056811570

Information autom. advance mechanism

BOSCH 9 420 616 050 9420616050

ZEXEL 105681-1570 1056811570

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105681-1570 zexel genuine, new aftermarket engine parts with delivery

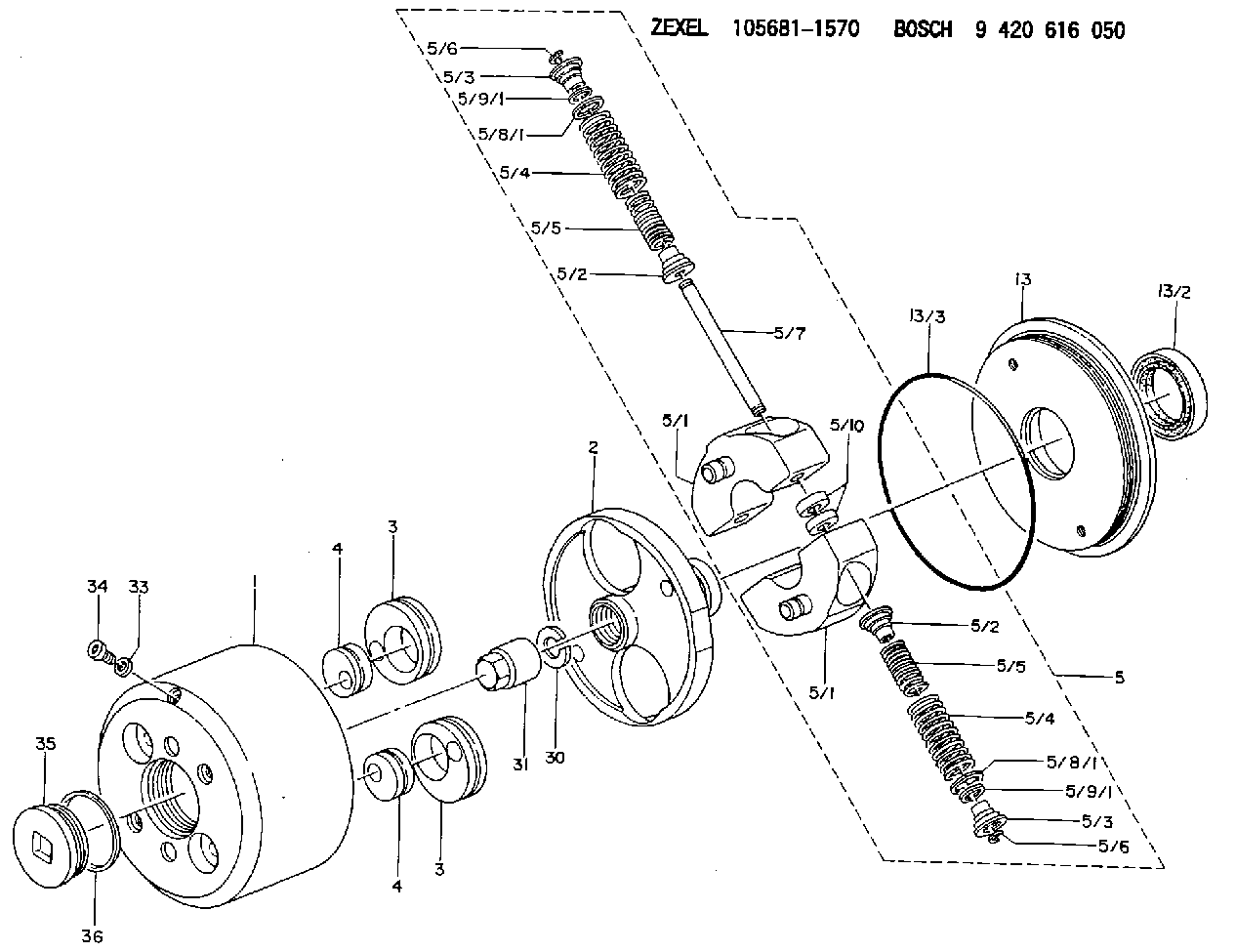

Scheme ###:

1.	[1]	156800-2620	TIMING-DEVICE HOUSING
2.	[1]	156801-2000	FLANGE BUSHING
3.	[2]	156723-0300	ECCENTRIC DISC
3.	[2]	156723-0300	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
5.	[1]	156819-1820	FLYWEIGHT ASSEMBLY
5/1.	[2]	156802-5920	FLYWEIGHT
5/1.	[2]	156802-5920	FLYWEIGHT
5/2.	[4]	156807-1100	SLOTTED WASHER
5/2.	[4]	156807-1100	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/4.	[4]	156813-1000	COMPRESSION SPRING
5/4.	[4]	156813-1000	COMPRESSION SPRING
5/5.	[4]	156817-9800	COMPRESSION SPRING
5/5.	[4]	156817-9800	COMPRESSION SPRING
5/6.	[4]	156809-0300	LOCKING WASHER
5/6.	[4]	156809-0300	LOCKING WASHER
5/7.	[2]	156806-0900	PIN
5/8/1.	[0]	156728-0800	SHIM D19&15T0.1
5/8/1.	[0]	156728-0900	SHIM D19&15T0.3
5/8/1.	[0]	156728-1000	SHIM D19&15T0.5
5/8/1.	[0]	156728-1100	SHIM D19&15T1.0
5/8/1.	[0]	156728-2000	SHIM D19&15T0.4
5/8/1.	[0]	156728-2100	SHIM D19&15T0.7
5/8/1.	[0]	156728-2100	SHIM D19&15T0.7
5/9/1.	[0]	156728-1200	SHIM D14&10.6T0.1
5/9/1.	[0]	156728-1300	SHIM D14&10.6T0.3
5/9/1.	[0]	156728-1300	SHIM D14&10.6T0.3
5/9/1.	[0]	156728-1400	SHIM D14&10.6T0.5
5/9/1.	[0]	156728-1500	SHIM D14&10.6T1.0
5/9/1.	[0]	156728-2200	SHIM D14&10.6T0.4
5/9/1.	[0]	156728-2300	SHIM D14&10.6T0.7
5/10.	[4]	156808-0500	SPACER BUSHING
13.	[1]	156809-1620	COVER
13/2.	[1]	139648-0300	PACKING RING
13/3.	[1]	156315-0200	O-RING
30.	[1]	156322-0000	LOCKING WASHER
31.	[1]	134325-0800	UNION NUT
33.	[1]	029331-0190	GASKET D14&10.2T1
34.	[1]	156316-0000	CAPSULE
35.	[1]	156314-0600	CAP
36.	[1]	156319-0200	GASKET

Include in #1:

106873-3311 as AUTOM. ADVANCE MECHANIS

106873-3321

107691-7002

Cross reference number

Zexel num

Bosch num

Firm num

Name

105681-1570

9 420 616 050

AUTOM. ADVANCE MECHANISM
* K

Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
If the 312-0092 Nozzle Heater As does not seat properly, follow the procedure that is listed below in order to resolve the problem.Solution
Material will need to be removed from the hex if the 312-0092 Nozzle Heater As is not properly seated. Refer to Illustration 1.
Illustration 1 g01768245
Use a file to remove material on the hex. Refer to Illustration 2. Use clean shop air in order to remove the debris that is generated during the procedure.Note: Do not use any type of chemical cleaner. The chemical cleaner can cause failure of the 312-0092 Nozzle Heater As .
Illustration 2 g01768573
