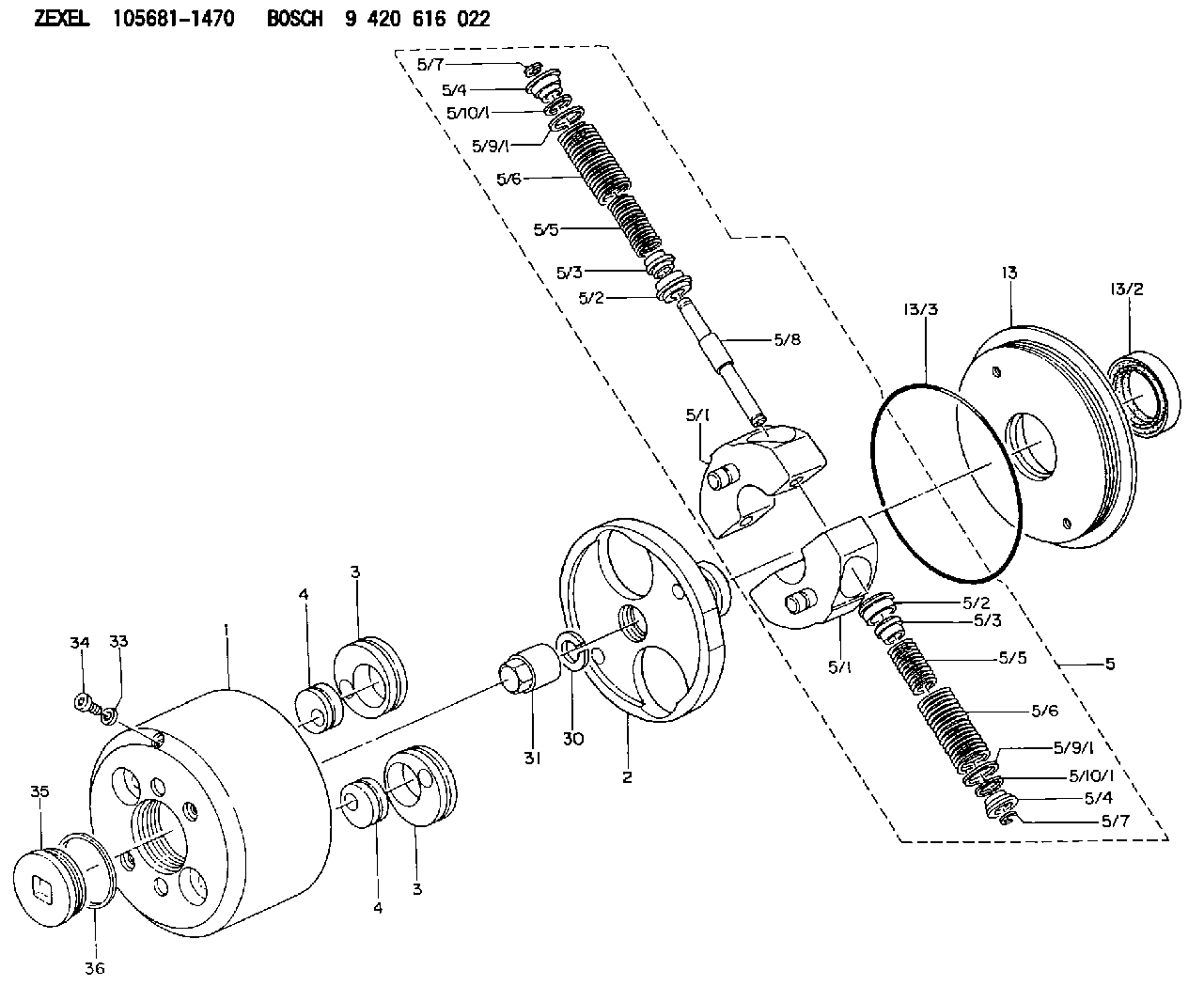

105681-1470 ZEXEL 9 420 616 022 BOSCH AUTOM. ADVANCE MECHANISM 9420616022 1056811470 me738525

Illustration 4 g01621593
(4) The process of crimping has been improved in the location that is shown. The Fifth Improvement
The length of the bolts that secure the fuel transfer pump to the HEUI pump body have increased. The torques on the bolts that secure the transfer pump to the HEUI pump body have also increased in order to improve durability.
HEUI pumps that have been returned from the field have been inspected and broken bolts that connect the fuel transfer pump to the main HEUI pump were found.
The major symptom that is related to this issue is an oil leak between the fuel transfer pump and the HEUI pump.
The bolts that make this connection were lengthened as well as the torques were increased in order to provide a better connection.
This improvement was effective with the following part numbers: 319-0607, 319-0674, 319-0675, 319-0676, 319-0677, 319-0678, 319-0622, 319-0610 and 319-0680
Illustration 5 g01621594
(5) Location of the three bolts that have been lengthened and increased torques have been applied. Note: The applications that utilize an electric fuel transfer pump also have this improvement for the cover that goes in place of the mechanical fuel transfer pump.Note: Refer to Special Instruction , REHS3830 for the following items: parts information, installation of parts and torque procedures that are related to this improvement.All current remanufactured part numbers are being built with the latest improvements. A list of all the current new part numbers and the part numbers of the remanufactured equivalent can be seen below.
Table 1
Current New Part Numbers Remanufactured Equivalent
319-0607 -
319-0674 -
319-0675 10R7145
319-0676 10R7146
319-0677 10R7147
319-0678 10R7148
319-0622 -
319-0610 10R3044
319-0680 - Note: All part numbers that are referenced in this publication were current on 15 July 2008. Part numbers are subject to a change.
Table 2
New Part Numbers Serial Number Prefixes that Use the Part Numbers
319-0607 S/N:532, ; S/N:551, ; S/N:511, ; S/N:521, ; S/N:522, ; S/N:525, ; S/N:535, ; S/N:541, ; S/N:545, ; S/N:552, ; S/N:B3T, ; S/N:B9D, ; S/N:B9M, ; S/N:D9G
319-0674 S/N:C7D, ; S/N:C7P, ; S/N:C7Z, ; S/N:M7A
319-0675 S/N:HEP, ; S/N:BTM, ; S/N:CAP, ; S/N:CGZ, ; S/N:GAG, ; S/N:HAA, ; S/N:JAB, ; S/N:JCD, ; S/N:KDD, ; S/N:MCA, ; S/N:CYA, ; S/N:GKX, ; S/N:JNK, ; S/N:RBH, ; S/N:MKM, ; S/N:MSD, ; S/N:MSL, ; S/N:CEX, ; S/N:CEH, ; S/N:BCP, ; S/N:CLJ, ; S/N:AEM, ; S/N:AFM, ; S/N:BLE, ; S/N:BLT, ; S/N:BMK, ; S/N:BNL, ; S/N:BPM, ; S/N:BRJ, ; S/N:CAD, ; S/N:FDT, ; S/N:ACJ, ; S/N:ADE, ; S/N:BNC, ; S/N:BPP, ; S/N:BPZ, ; S/N:AAX, ; S/N:AGM, ; S/N:BMJ, ; S/N:BMY, ; S/N:BPS, ; S/N:BRZ, ; S/N:AEP, ; S/N:DAE, ; S/N:L5J, ; S/N:BRE
319-0676 S/N:101, ; S/N:102, ; S/N:103, ; S/N:104, ; S/N:125, ; S/N:202, ; S/N:301, ; S/N:302, ; S/N:AMZ, ; S/N:B1K, ; S/N:B2L, ; S/N:B3M, ; S/N:B4N, ; S/N:CAP, ; S/N:CBK, ; S/N:D3C, ; S/N:DKY
319-0677 S/N:ECH, ; S/N:AWN, ; S/N:CJX, ; S/N:JKR, ; S/N:JLS, ; S/N:JGK, ; S/N:BYE, ; S/N:T2D, ; S/N:DFP, ; S/N:SYM, ; S/N:JJG, ; S/N:LAB, ; S/N:EJC, ; S/N:KJR, ; S/N:PEH, ; S/N:CJM, ; S/N:GBR, ; S/N:KDG, ; S/N:KBE, ; S/N:DBH, ; S/N:SCR, ; S/N:GPB, ; S/N:PKE, ; S/N:C7K, ; S/N:C9M, ;
