Information autom. advance mechanism
BOSCH
9 420 616 167
9420616167
ZEXEL
105681-1360
1056811360
Rating:

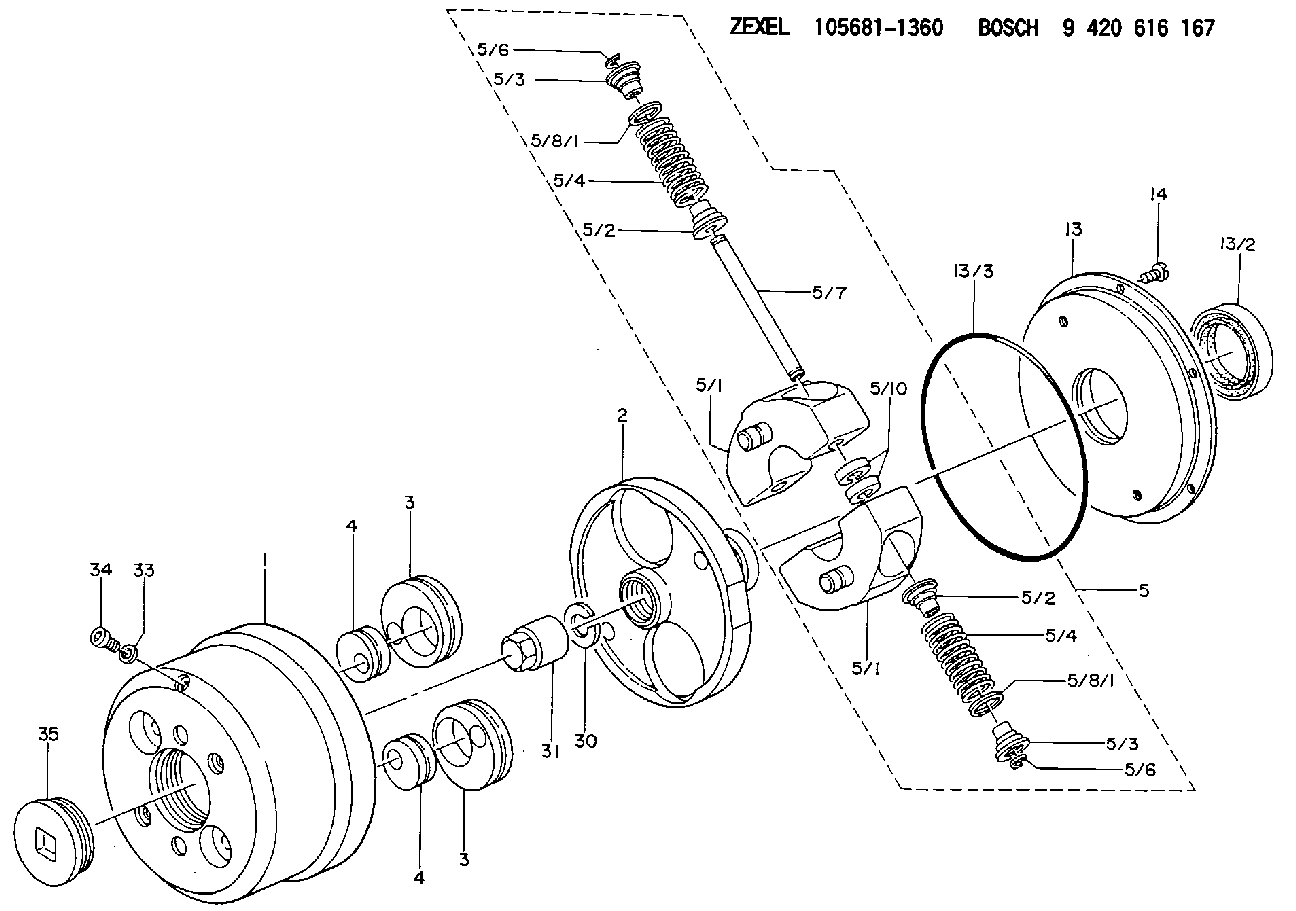

Scheme ###:
| 1. | [1] | 156800-0720 | TIMING-DEVICE HOUSING |
| 2. | [1] | 156801-2000 | FLANGE BUSHING |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 5. | [1] | 156819-9620 | FLYWEIGHT ASSEMBLY |
| 5/1. | [2] | 156802-2620 | FLYWEIGHT |
| 5/1. | [2] | 156802-2620 | FLYWEIGHT |
| 5/2. | [4] | 156807-1100 | SLOTTED WASHER |
| 5/2. | [4] | 156807-1100 | SLOTTED WASHER |
| 5/3. | [4] | 156807-0900 | SLOTTED WASHER |
| 5/3. | [4] | 156807-0900 | SLOTTED WASHER |
| 5/4. | [4] | 156805-7200 | COMPRESSION SPRING |
| 5/4. | [4] | 156805-7200 | COMPRESSION SPRING |
| 5/6. | [4] | 156809-0300 | LOCKING WASHER |
| 5/6. | [4] | 156809-0300 | LOCKING WASHER |
| 5/7. | [2] | 156806-0900 | PIN |
| 5/8/1. | [0] | 156728-0800 | SHIM D19&15T0.1 |
| 5/8/1. | [0] | 156728-0900 | SHIM D19&15T0.3 |
| 5/8/1. | [0] | 156728-0900 | SHIM D19&15T0.3 |
| 5/8/1. | [0] | 156728-1000 | SHIM D19&15T0.5 |
| 5/8/1. | [0] | 156728-1100 | SHIM D19&15T1.0 |
| 5/8/1. | [0] | 156728-2000 | SHIM D19&15T0.4 |
| 5/8/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
| 5/8/1. | [0] | 156728-2400 | SHIM D19&15T0.6 |
| 5/8/1. | [0] | 156728-2500 | SHIM D19&15T0.8 |
| 5/8/1. | [0] | 156728-2600 | SHIM D19&15T0.9 |
| 5/10. | [4] | 156808-0500 | SPACER BUSHING |
| 13. | [1] | 156809-2720 | COVER |
| 13/2. | [1] | 139648-0300 | PACKING RING |
| 13/3. | [1] | 016511-3010 | O-RING |
| 14. | [6] | 012255-1040 | FLAT-HEAD SCREW M5P0.8L10 |
| 30. | [1] | 156322-0000 | LOCKING WASHER |
| 31. | [1] | 134325-0800 | UNION NUT |
| 33. | [1] | 029331-0190 | GASKET D14&10.2T1 |
| 34. | [1] | 156316-0000 | CAPSULE |
| 35. | [1] | 156314-0501 | CAP |
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Mast Cab Side Bank-Lube Points and Locations
Illustration 14 g06355954
Mast cab side bank-lube points
(A) Right Mast Pivot Pin
(B) Right Mast Raise Cylinder Upper Pin
(C) Gear Box Air Seal (Top side)
(D) Gear Box Top Lip Seal Top Air Seal (Bottom Side)
(E) Pipe Rack Upper Swing Cylinder Head End
(F) Pipe Rack Carousel Support Bearing
(G) Pipe Rack Journal Bearing
(H) Pipe Rack Journal Bearing
(J) Left Side Top Sheave Pin
(K) Right Side Top Sheave Pin
(L) Left Side Bottom Sheave Pin
(M) Right Side Bottom Sheave Pin
(N) Right Side Pipe Positioner Roller Pin
(P) Right Side Pipe Positioner Swing Pin
(R) Left Side Pipe Positioner Swing Pin
(S) Left Side Pipe Positioner Roller Pin
Table 12
Mast Cab Side Bank
Item Description Sleeve color
A Right Mast Pivot Pin Red
B Right Mast Raise Cylinder Upper Pin Red
C Gear Box Air Seal (Top side) Nut
D Gear Box Top Lip Seal Top Air Seal (Bottom Side) Red
E Pipe Rack Upper Swing Cylinder Head End Red
F Pipe Rack Carousel Support Bearing Red
G Pipe Rack Journal Bearing Red
H Pipe Rack Journal Bearing Red
J Left Side Top Sheave Pin Red
K Right Side Top Sheave Pin Red
L Left Side Bottom Sheave Pin Red
M Right Side Bottom Sheave Pin Red
N Right Side Pipe Positioner Roller Pin Red
P Right Side Pipe Positioner Swing Pin Nut
R Left Side Pipe Positioner Swing Pin Nut
S Right Side Pipe Positioner Roller Pin Red Hydraulic Break Out Wrenches (Hobo)-Lube Points
Illustration 15 g06355971
Hobo-lube points
(A) HOBO Rotate Cylinder Head End
(B) HOBO Swing Pivot Pin Top
(C) HOBO Swing Pivot Pin Bottom
(D) HOBO Swing Cylinder Rod End
(E) HOBO Clamp Slide
(F) HOBO Rotate Cylinder Rod End
(G) HOBO Clamp Cylinder Rod End
(H) HOBO Clamp Pin
Table 13
Hydraulic Break Out Wrenches (HOBO)
Item Description Sleeve color
A HOBO Rotate Cylinder Head End Nut
B HOBO Swing Pivot Pin Top Red
C HOBO Swing Pivot Pin Bottom Red
D HOBO Swing Cylinder Rod End Red
E HOBO Clamp Slide Red
F HOBO Rotate Cylinder Rod End Nut
G HOBO Clamp Cylinder Rod End Nut
H HOBO Clamp Pin Red
Illustration 14 g06355954
Mast cab side bank-lube points
(A) Right Mast Pivot Pin
(B) Right Mast Raise Cylinder Upper Pin
(C) Gear Box Air Seal (Top side)
(D) Gear Box Top Lip Seal Top Air Seal (Bottom Side)
(E) Pipe Rack Upper Swing Cylinder Head End
(F) Pipe Rack Carousel Support Bearing
(G) Pipe Rack Journal Bearing
(H) Pipe Rack Journal Bearing
(J) Left Side Top Sheave Pin
(K) Right Side Top Sheave Pin
(L) Left Side Bottom Sheave Pin
(M) Right Side Bottom Sheave Pin
(N) Right Side Pipe Positioner Roller Pin
(P) Right Side Pipe Positioner Swing Pin
(R) Left Side Pipe Positioner Swing Pin
(S) Left Side Pipe Positioner Roller Pin
Table 12
Mast Cab Side Bank
Item Description Sleeve color
A Right Mast Pivot Pin Red
B Right Mast Raise Cylinder Upper Pin Red
C Gear Box Air Seal (Top side) Nut
D Gear Box Top Lip Seal Top Air Seal (Bottom Side) Red
E Pipe Rack Upper Swing Cylinder Head End Red
F Pipe Rack Carousel Support Bearing Red
G Pipe Rack Journal Bearing Red
H Pipe Rack Journal Bearing Red
J Left Side Top Sheave Pin Red
K Right Side Top Sheave Pin Red
L Left Side Bottom Sheave Pin Red
M Right Side Bottom Sheave Pin Red
N Right Side Pipe Positioner Roller Pin Red
P Right Side Pipe Positioner Swing Pin Nut
R Left Side Pipe Positioner Swing Pin Nut
S Right Side Pipe Positioner Roller Pin Red Hydraulic Break Out Wrenches (Hobo)-Lube Points
Illustration 15 g06355971
Hobo-lube points
(A) HOBO Rotate Cylinder Head End
(B) HOBO Swing Pivot Pin Top
(C) HOBO Swing Pivot Pin Bottom
(D) HOBO Swing Cylinder Rod End
(E) HOBO Clamp Slide
(F) HOBO Rotate Cylinder Rod End
(G) HOBO Clamp Cylinder Rod End
(H) HOBO Clamp Pin
Table 13
Hydraulic Break Out Wrenches (HOBO)
Item Description Sleeve color
A HOBO Rotate Cylinder Head End Nut
B HOBO Swing Pivot Pin Top Red
C HOBO Swing Pivot Pin Bottom Red
D HOBO Swing Cylinder Rod End Red
E HOBO Clamp Slide Red
F HOBO Rotate Cylinder Rod End Nut
G HOBO Clamp Cylinder Rod End Nut
H HOBO Clamp Pin Red
