105681-1210 ZEXEL 9 420 615 314 BOSCH AUTOM. ADVANCE MECHANISM 9420615314 1056811210 1685196807

Information autom. advance mechanism

BOSCH 9 420 615 314 9420615314

ZEXEL 105681-1210 1056811210

NISSAN-DIESEL 1685196807 1685196807

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105681-1210 zexel genuine, new aftermarket engine parts with delivery

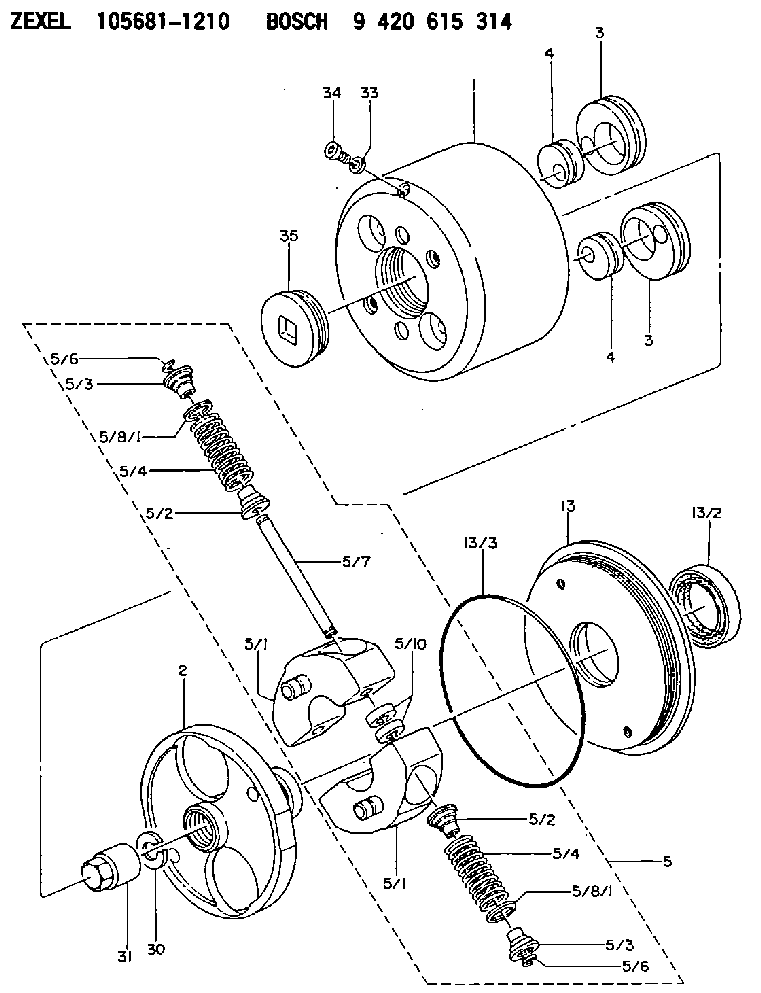

Scheme ###:

1.	[1]	156800-2020	TIMING-DEVICE HOUSING
2.	[1]	156801-2200	FLANGE BUSHING
3.	[2]	156723-0300	ECCENTRIC DISC
3.	[2]	156723-0300	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
4.	[2]	156723-0400	ECCENTRIC DISC
5.	[1]	156810-6520	FLYWEIGHT ASSEMBLY
5/1.	[2]	156802-2720	FLYWEIGHT
5/1.	[2]	156802-2720	FLYWEIGHT
5/2.	[4]	156807-1100	SLOTTED WASHER
5/2.	[4]	156807-1100	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/3.	[4]	156807-0900	SLOTTED WASHER
5/4.	[4]	156805-8400	COMPRESSION SPRING
5/4.	[4]	156805-8400	COMPRESSION SPRING
5/6.	[4]	156809-0300	LOCKING WASHER
5/6.	[4]	156809-0300	LOCKING WASHER
5/7.	[2]	156806-0900	PIN
5/8/1.	[0]	156728-0800	SHIM D19&15T0.1
5/8/1.	[0]	156728-0800	SHIM D19&15T0.1
5/8/1.	[0]	156728-0900	SHIM D19&15T0.3
5/8/1.	[0]	156728-1000	SHIM D19&15T0.5
5/8/1.	[0]	156728-1100	SHIM D19&15T1.0
5/8/1.	[0]	156728-2000	SHIM D19&15T0.4
5/8/1.	[0]	156728-2100	SHIM D19&15T0.7
5/10.	[4]	156808-0500	SPACER BUSHING
13.	[1]	156809-1620	COVER
13/2.	[1]	139648-0300	PACKING RING
13/3.	[1]	156315-0200	O-RING
30.	[1]	156322-0000	LOCKING WASHER
31.	[1]	134325-0800	UNION NUT
33.	[1]	029331-0190	GASKET D14&10.2T1
34.	[1]	156316-0000	CAPSULE
35.	[1]	156314-0501	CAP

Include in #1:

106691-0520 as AUTOM. ADVANCE MECHANIS

106691-0521

106691-0580

106691-0581

Cross reference number

Zexel num

Bosch num

Firm num

Name

105681-1210

9 420 615 314

1685196807 NISSAN-DIESEL

AUTOM. ADVANCE MECHANISM
K 14KL AUTOMATIC TIMER TIMER SPG TIMER

Information:

Illustration 21 shows the direction the rack moves when the fuel injector is receiving fuel.
Illustration 22 g01455811
Illustration 1 - Flowchart for the Air in Fuel Test (Test F)
Illustration 23 g01455812
Illustration 2 - Flowchart for the Air in Fuel Test (Test F)Fuel Injector Cranking Test (Test G)
Note: The fuel injector cranking test checks for worn out injectors by measuring the cranking rack.
Illustration 24 g01412134
(3) The rack control (4) The number one fuel injectorNote: Refer to Illustration 24 for the location of the rack control and the location of the number one injector.
Illustration 25 g01412115
Flowchart for the Fuel Injector Cranking Test (Test G)Fuel Shutoff Solenoid Test (Test H)
Note: The fuel shutoff solenoid test determines if the fuel shutoff solenoid and wiring harness are operating properly.
Illustration 26 g01412143
Flowchart for the Fuel Shutoff Solenoid Test (Test H)Fuel Ratio Control (FRC) Setting Test (Test I)
Note: The FRC setting test checks the FRC setting.
Illustration 27 g01412145
Flowchart for the Fuel Ratio Control (FRC) Setting Test (Test I)Governor Servo Retaining Ring Test (Test J)
Note: Do not run the engine during this test.Note: The governor servo retaining ring test checks for faulty internal parts of the governor.
Illustration 28 g01422811
(1) Paddle
Illustration 29 g01422821
(2) Clevis pin
Illustration 30 g01412147
Flowchart for the Governor Servo Retaining Ring Test (Test J)Fuel Transfer Pump Test (Test K)
Note: The fuel transfer pump test is a visual inspection of the fuel transfer pump components.
Illustration 31 g01412150
(1) Screen (2) Inlet check valve (3) Spring (4) Bolt (5) Piston (6) Outlet check valve (7) Freeze plug (8) Piston check valve (9) Passage (10) Tappet Assembly (11) CamNote: Refer to Illustration 31 for the location of the components for the fuel transfer pump.
Illustration 32 g01412149
Flowchart for the Fuel Transfer Pump Test (Test K)Fuel Ratio Control (FRC) Diaphragm Leak Test (Test L)
Note: The FRC diaphragm leak test checks for a leaking FRC diaphragm.
Illustration 33 g01412154
Flowchart for the Fuel Ratio Control (FRC) Diaphragm Leak Test (Test L)
