Information autom. advance mechanism
BOSCH
9 420 615 469
9420615469
ZEXEL
105681-1190
1056811190
NISSAN-DIESEL
1685196806
1685196806
Rating:

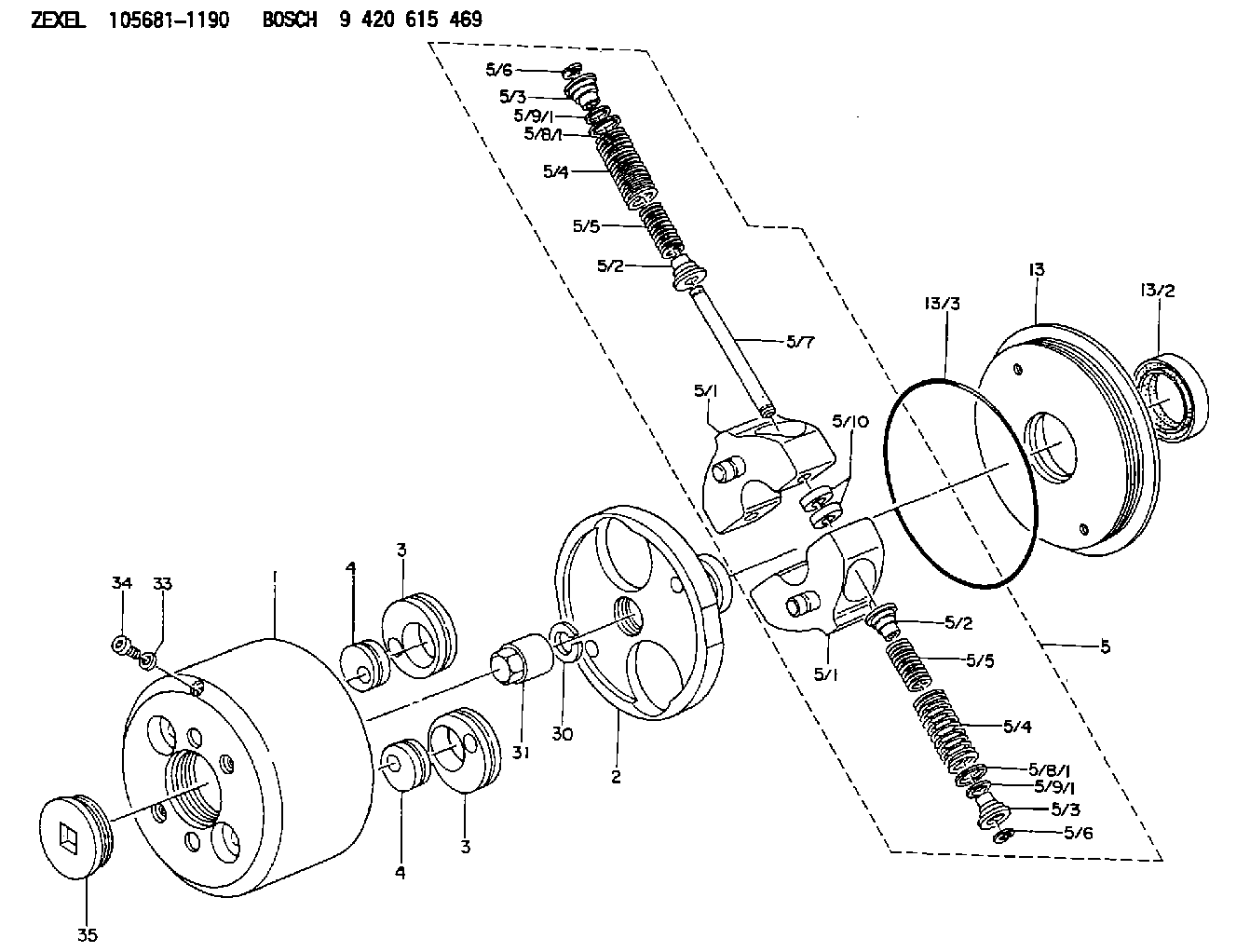

Scheme ###:
| 1. | [1] | 156800-2020 | TIMING-DEVICE HOUSING |
| 2. | [1] | 156801-2200 | FLANGE BUSHING |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 5. | [1] | 156818-6820 | FLYWEIGHT ASSEMBLY |
| 5/1. | [2] | 156802-5320 | FLYWEIGHT |
| 5/1. | [2] | 156802-5320 | FLYWEIGHT |
| 5/2. | [4] | 156807-1100 | SLOTTED WASHER |
| 5/2. | [4] | 156807-1100 | SLOTTED WASHER |
| 5/3. | [4] | 156807-0900 | SLOTTED WASHER |
| 5/3. | [4] | 156807-0900 | SLOTTED WASHER |
| 5/4. | [4] | 156815-8000 | COMPRESSION SPRING |
| 5/4. | [4] | 156815-8000 | COMPRESSION SPRING |
| 5/5. | [4] | 156815-8500 | COMPRESSION SPRING |
| 5/5. | [4] | 156815-8500 | COMPRESSION SPRING |
| 5/6. | [4] | 156809-0300 | LOCKING WASHER |
| 5/6. | [4] | 156809-0300 | LOCKING WASHER |
| 5/7. | [2] | 156806-0900 | PIN |
| 5/8/1. | [0] | 156728-0800 | SHIM D19&15T0.1 |
| 5/8/1. | [0] | 156728-0900 | SHIM D19&15T0.3 |
| 5/8/1. | [0] | 156728-1000 | SHIM D19&15T0.5 |
| 5/8/1. | [0] | 156728-1100 | SHIM D19&15T1.0 |
| 5/8/1. | [0] | 156728-2000 | SHIM D19&15T0.4 |
| 5/8/1. | [0] | 156728-2000 | SHIM D19&15T0.4 |
| 5/8/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
| 5/9/1. | [0] | 156728-1200 | SHIM D14&10.6T0.1 |
| 5/9/1. | [0] | 156728-1300 | SHIM D14&10.6T0.3 |
| 5/9/1. | [0] | 156728-1400 | SHIM D14&10.6T0.5 |
| 5/9/1. | [0] | 156728-1500 | SHIM D14&10.6T1.0 |
| 5/9/1. | [0] | 156728-2200 | SHIM D14&10.6T0.4 |
| 5/9/1. | [0] | 156728-2300 | SHIM D14&10.6T0.7 |
| 5/9/1. | [0] | 156728-2300 | SHIM D14&10.6T0.7 |
| 5/10. | [4] | 156808-0500 | SPACER BUSHING |
| 13. | [1] | 156809-1620 | COVER |
| 13/2. | [1] | 139648-0300 | PACKING RING |
| 13/3. | [1] | 156315-0200 | O-RING |
| 30. | [1] | 156322-0000 | LOCKING WASHER |
| 31. | [1] | 134325-0800 | UNION NUT |
| 33. | [1] | 029331-0190 | GASKET D14&10.2T1 |
| 34. | [1] | 156316-0000 | CAPSULE |
| 35. | [1] | 156314-0501 | CAP |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105681-1190
1685196806 NISSAN-DIESEL
AUTOM. ADVANCE MECHANISM
K 14KL AUTOMATIC TIMER TIMER SPG TIMER
K 14KL AUTOMATIC TIMER TIMER SPG TIMER
Information:
Introduction
The problem that is identified in the technical information bulletin that follows does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
In order to extend the life of fuel injectors on the above listed engines, the injector solenoids need to remain cool.Solution
Illustration 1 g01404067
Hole in exhaust rocker arm for oil sprayThe system was developed in order to provide a stream of engine oil to the injector solenoids. The design uses the existing oil supply from the valve mechanism. The oil spray is directed out of the exhaust rocker arms. There is one 0.7 mm (0.028 inch) hole (1) in each exhaust rocker arm.Note: When you are servicing the valve mechanism, the oil ports must remain free of debris.
Illustration 2 g01404069
(2) Location of oil spray
The problem that is identified in the technical information bulletin that follows does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
In order to extend the life of fuel injectors on the above listed engines, the injector solenoids need to remain cool.Solution
Illustration 1 g01404067
Hole in exhaust rocker arm for oil sprayThe system was developed in order to provide a stream of engine oil to the injector solenoids. The design uses the existing oil supply from the valve mechanism. The oil spray is directed out of the exhaust rocker arms. There is one 0.7 mm (0.028 inch) hole (1) in each exhaust rocker arm.Note: When you are servicing the valve mechanism, the oil ports must remain free of debris.
Illustration 2 g01404069
(2) Location of oil spray
