Information autom. advance mechanism
BOSCH
9 420 615 130
9420615130
ZEXEL
105681-0660
1056810660
MITSUBISHI-HEAV
3626507050
3626507050
Rating:

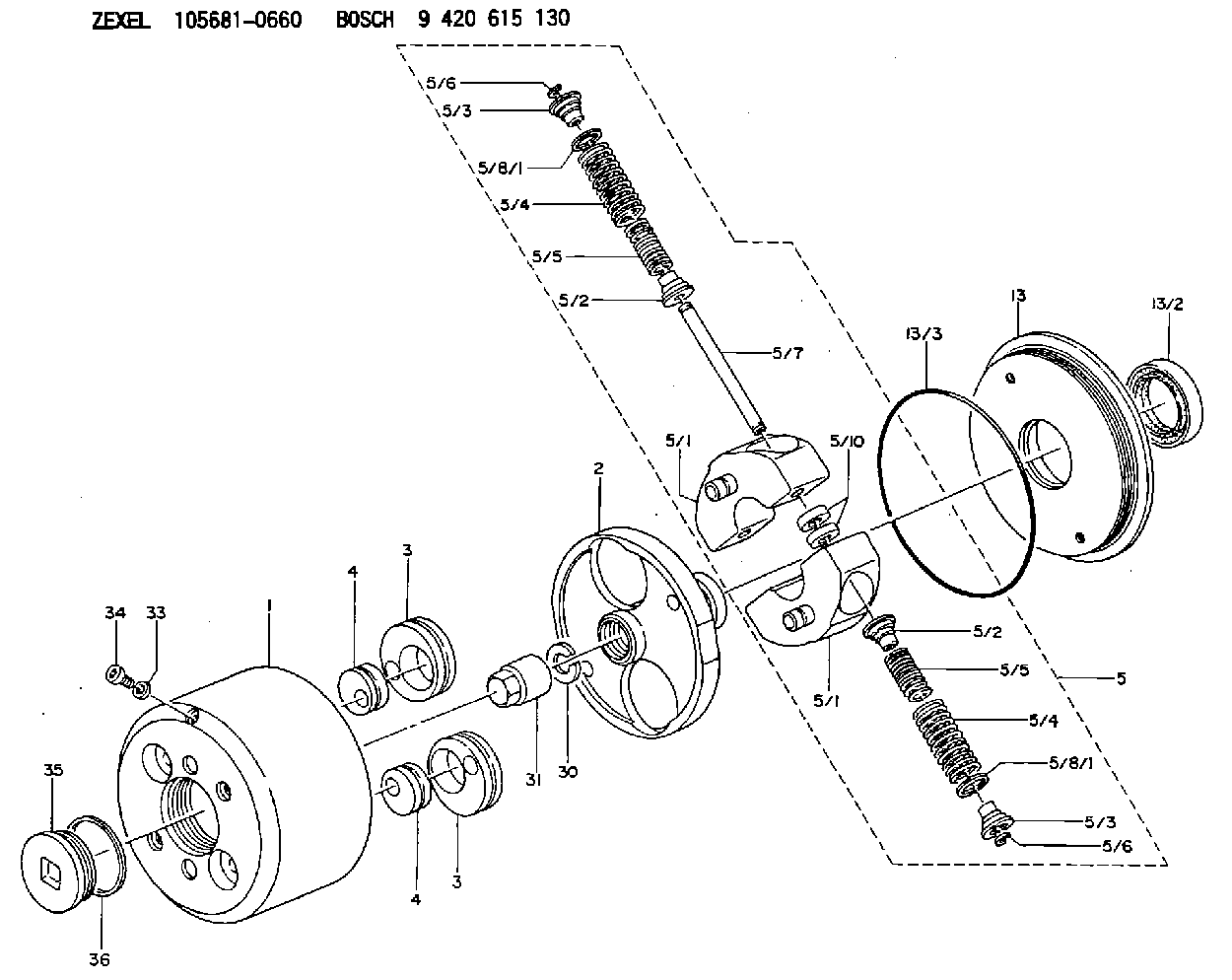

Scheme ###:
| 1. | [1] | 156800-1720 | TIMING-DEVICE HOUSING |
| 2. | [1] | 156801-1202 | FLANGE BUSHING |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 3. | [2] | 156723-0300 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 4. | [2] | 156723-0400 | ECCENTRIC DISC |
| 5. | [1] | 156810-9521 | FLYWEIGHT ASSEMBLY |
| 5/1. | [2] | 156802-4720 | FLYWEIGHT |
| 5/1. | [2] | 156802-4720 | FLYWEIGHT |
| 5/2. | [4] | 156807-0600 | SLOTTED WASHER |
| 5/2. | [4] | 156807-0600 | SLOTTED WASHER |
| 5/3. | [4] | 156807-0900 | SLOTTED WASHER |
| 5/3. | [4] | 156807-0900 | SLOTTED WASHER |
| 5/4. | [4] | 156814-8100 | COMPRESSION SPRING |
| 5/4. | [4] | 156814-8100 | COMPRESSION SPRING |
| 5/5. | [4] | 156814-8700 | COMPRESSION SPRING |
| 5/5. | [4] | 156814-8700 | COMPRESSION SPRING |
| 5/6. | [4] | 156809-0300 | LOCKING WASHER |
| 5/6. | [4] | 156809-0300 | LOCKING WASHER |
| 5/7. | [2] | 156806-0900 | PIN |
| 5/8/1. | [0] | 156728-0800 | SHIM D19&15T0.1 |
| 5/8/1. | [0] | 156728-0900 | SHIM D19&15T0.3 |
| 5/8/1. | [0] | 156728-1000 | SHIM D19&15T0.5 |
| 5/8/1. | [0] | 156728-1100 | SHIM D19&15T1.0 |
| 5/8/1. | [0] | 156728-2000 | SHIM D19&15T0.4 |
| 5/8/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
| 5/8/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
| 5/8/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
| 5/8/1. | [0] | 156728-2100 | SHIM D19&15T0.7 |
| 5/8/1. | [0] | 156728-2400 | SHIM D19&15T0.6 |
| 5/8/1. | [0] | 156728-2500 | SHIM D19&15T0.8 |
| 5/8/1. | [0] | 156728-2600 | SHIM D19&15T0.9 |
| 5/10. | [4] | 156808-0500 | SPACER BUSHING |
| 13. | [1] | 156809-1420 | COVER |
| 13/2. | [1] | 139648-0100 | PACKING RING |
| 13/3. | [1] | 156315-0300 | O-RING |
| 30. | [1] | 156322-0100 | LOCKING WASHER |
| 31. | [1] | 134325-0800 | UNION NUT |
| 33. | [1] | 029331-0190 | GASKET D14&10.2T1 |
| 34. | [1] | 156316-0000 | CAPSULE |
| 35. | [1] | 156314-0600 | CAP |
| 36. | [1] | 156319-0200 | GASKET |
Include in #1:
106671-4621
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105681-0660
3626507050 MITSUBISHI-HEAV
AUTOM. ADVANCE MECHANISM
K 14KL AUTOMATIC TIMER TIMER SPG TIMER
K 14KL AUTOMATIC TIMER TIMER SPG TIMER
Information:
Introduction
The valve housing may crack causing certain remanufactured fuel injectors to malfunction.Problem
Some remanufactured valve bodies on fuel injectors have been cracking under high pressure. This crack in the valve body can cause fuel to get into the engine oil.Solution
All 10R-0957 Injector Gp Fuel with serial number range 848368 to 850132 should be removed from the parts stock. 10R-0960 Injector Gp Fuel , 10R-0961 Injector Gp Fuel , 10R-0963 Injector Gp Fuel , and 10R-1268 Injector Gp Fuel with a serial number range from 188029 to 188914 should be removed from the parts stock. The above listed fuel injectors should be removed from the parts stock and the injectors should be held pending further instructions.
The valve housing may crack causing certain remanufactured fuel injectors to malfunction.Problem
Some remanufactured valve bodies on fuel injectors have been cracking under high pressure. This crack in the valve body can cause fuel to get into the engine oil.Solution
All 10R-0957 Injector Gp Fuel with serial number range 848368 to 850132 should be removed from the parts stock. 10R-0960 Injector Gp Fuel , 10R-0961 Injector Gp Fuel , 10R-0963 Injector Gp Fuel , and 10R-1268 Injector Gp Fuel with a serial number range from 188029 to 188914 should be removed from the parts stock. The above listed fuel injectors should be removed from the parts stock and the injectors should be held pending further instructions.
