105676-5100 ZEXEL 9 420 615 708 BOSCH AUTOM. ADVANCE MECHANISM 9420615708 1056765100 8971143520

Information autom. advance mechanism

BOSCH 9 420 615 708 9420615708

ZEXEL 105676-5100 1056765100

ISUZU 8971143520 8971143520

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105676-5100 zexel genuine, new aftermarket engine parts with delivery

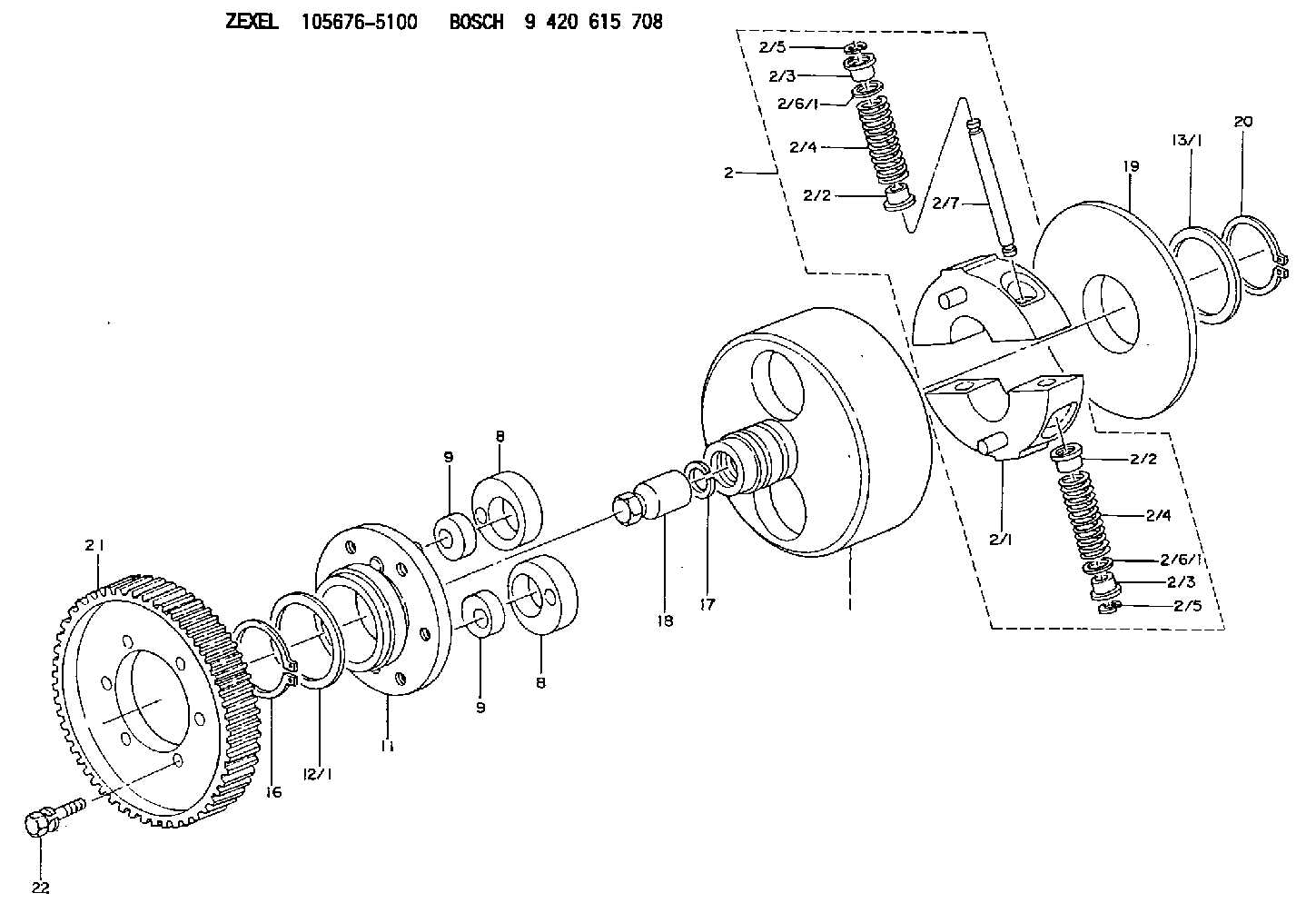

Scheme ###:

1.	[1]	156700-1301	FLANGE BUSHING
2.	[1]	156718-2720	FLYWEIGHT ASSEMBLY
2/1.	[2]	156702-7820	FLYWEIGHT
2/2.	[4]	156707-0100	SLOTTED WASHER
2/2.	[4]	156707-0100	SLOTTED WASHER
2/3.	[4]	156707-0000	SLOTTED WASHER
2/3.	[4]	156707-0000	SLOTTED WASHER
2/4.	[4]	156714-9900	COMPRESSION SPRING
2/4.	[4]	156714-9900	COMPRESSION SPRING
2/5.	[4]	156709-0200	LOCKING WASHER
2/5.	[4]	156709-0200	LOCKING WASHER
2/6/1.	[0]	156708-3600	SHIM D15.5&11.5T0.1
2/6/1.	[0]	156708-3700	SHIM D15.5&11.5T0.2
2/6/1.	[0]	156708-3800	SHIM D15.5&11.5T0.3
2/6/1.	[0]	156708-3900	SHIM D15.5&11.5T0.4
2/6/1.	[0]	156708-3900	SHIM D15.5&11.5T0.4
2/6/1.	[0]	156708-4000	SHIM D15.5&11.5T0.5
2/6/1.	[0]	156708-4100	SHIM D15.5&11.5T0.6
2/6/1.	[0]	156708-4200	SHIM D15.5&11.5T0.7
2/6/1.	[0]	156708-4300	SHIM D15.5&11.5T0.8
2/6/1.	[0]	156708-4400	SHIM D15.5&11.5T0.9
2/6/1.	[0]	156708-4500	SHIM D15.5&11.5T1.0
2/7.	[2]	156706-0000	PIN
8.	[2]	156703-0500	ECCENTRIC DISC
8.	[2]	156703-0500	ECCENTRIC DISC
9.	[2]	156703-0600	ECCENTRIC DISC
9.	[2]	156703-0600	ECCENTRIC DISC
11.	[1]	156701-0620	FLANGE BUSHING
12/1.	[0]	156708-2200	SHIM D46&36.1T0.1
12/1.	[0]	156708-2300	SHIM D46&36.1T0.12
12/1.	[0]	156708-2400	SHIM D46&36.1T0.14
12/1.	[0]	156708-2500	SHIM D46&36.1T0.16
12/1.	[0]	156708-2600	SHIM D46&36.1T0.18
12/1.	[0]	156708-2700	SHIM D46&36.1T0.9
12/1.	[0]	156708-2800	SHIM D46&36.1T1.10
12/1.	[0]	156708-2900	SHIM D46&36.1T1.3
12/1.	[0]	156708-3000	SHIM D46&36.1T1.5
12/1.	[0]	156708-3100	SHIM D46&36.1T1.7
13/1.	[0]	156708-2200	SHIM D46&36.1T0.1
13/1.	[0]	156708-2300	SHIM D46&36.1T0.12
13/1.	[0]	156708-2400	SHIM D46&36.1T0.14
13/1.	[0]	156708-2500	SHIM D46&36.1T0.16
13/1.	[0]	156708-2600	SHIM D46&36.1T0.18
13/1.	[0]	156708-2700	SHIM D46&36.1T0.9
13/1.	[0]	156708-2800	SHIM D46&36.1T1.10
13/1.	[0]	156708-2900	SHIM D46&36.1T1.3
13/1.	[0]	156708-3000	SHIM D46&36.1T1.5
13/1.	[0]	156708-3100	SHIM D46&36.1T1.7
16.	[1]	016020-3620	LOCKING WASHER
17.	[1]	156709-1000	LOCKING WASHER
18.	[1]	131325-3201	UNION NUT
19.	[1]	156709-1500	COVER
20.	[1]	016020-3620	LOCKING WASHER
21.	[1]	156221-6500	TOOTHED GEAR
22.	[6]	020006-1670	BLEEDER SCREW M6P1L16 7T

Include in #1:

101401-4850 as AUTOM. ADVANCE MECHANIS

101401-4910

Cross reference number

Zexel num

Bosch num

Firm num

Name

105676-5100
105676-5101

9 420 615 708

8971143520 ISUZU

AUTOM. ADVANCE MECHANISM
* K 14KJ TIMER SCDM TIMER

105676-5100
105676-5101

9 420 615 708

8971218400 ISUZU

AUTOM. ADVANCE MECHANISM
A * K 14KJ TIMER SCDM TIMER
