105676-1250 ZEXEL 9 420 616 607 BOSCH AUTOM. ADVANCE MECHANISM 9420616607 1056761250 me755643

Information autom. advance mechanism

BOSCH 9 420 616 607 9420616607

ZEXEL 105676-1250 1056761250

MITSUBISHI ME755643 me755643

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105676-1250 zexel genuine, new aftermarket engine parts with delivery

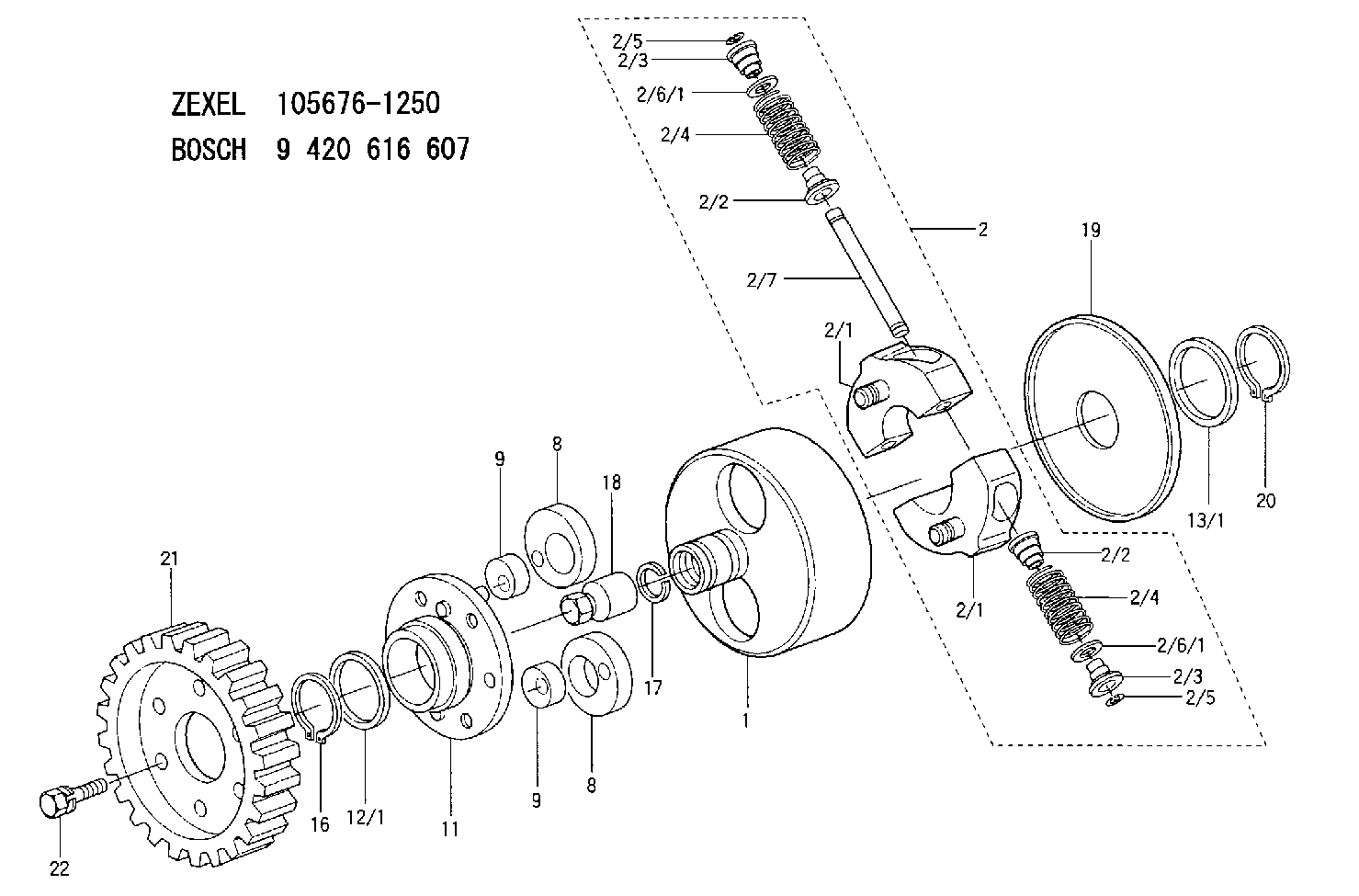

Scheme ###:

1.	[1]	156700-0100	FLANGE BUSHING
2.	[1]	156718-5520	FLYWEIGHT ASSEMBLY
2/1.	[2]	156702-6220	FLYWEIGHT
2/1.	[2]	156702-6220	FLYWEIGHT
2/2.	[4]	156707-0100	SLOTTED WASHER
2/2.	[4]	156707-0100	SLOTTED WASHER
2/3.	[4]	156707-0000	SLOTTED WASHER
2/3.	[4]	156707-0000	SLOTTED WASHER
2/4.	[4]	156715-7200	COMPRESSION SPRING
2/4.	[4]	156715-7200	COMPRESSION SPRING
2/5.	[4]	156709-0200	LOCKING WASHER
2/5.	[4]	156709-0200	LOCKING WASHER
2/6/1.	[0]	156708-3600	SHIM D15.5&11.5T0.1
2/6/1.	[0]	156708-3700	SHIM D15.5&11.5T0.2
2/6/1.	[0]	156708-3800	SHIM D15.5&11.5T0.3
2/6/1.	[0]	156708-3900	SHIM D15.5&11.5T0.4
2/6/1.	[0]	156708-4000	SHIM D15.5&11.5T0.5
2/6/1.	[0]	156708-4100	SHIM D15.5&11.5T0.6
2/6/1.	[0]	156708-4200	SHIM D15.5&11.5T0.7
2/6/1.	[0]	156708-4200	SHIM D15.5&11.5T0.7
2/6/1.	[0]	156708-4300	SHIM D15.5&11.5T0.8
2/6/1.	[0]	156708-4400	SHIM D15.5&11.5T0.9
2/6/1.	[0]	156708-4500	SHIM D15.5&11.5T1.0
2/7.	[2]	156706-0000	PIN
8.	[2]	156703-0500	ECCENTRIC DISC
8.	[2]	156703-0500	ECCENTRIC DISC
9.	[2]	156703-0600	ECCENTRIC DISC
9.	[2]	156703-0600	ECCENTRIC DISC
11.	[1]	156701-0120	FLANGE BUSHING
12/1.	[0]	156708-2200	SHIM D46&36.1T0.1
12/1.	[0]	156708-2300	SHIM D46&36.1T0.12
12/1.	[0]	156708-2400	SHIM D46&36.1T0.14
12/1.	[0]	156708-2500	SHIM D46&36.1T0.16
12/1.	[0]	156708-2600	SHIM D46&36.1T0.18
12/1.	[0]	156708-2700	SHIM D46&36.1T0.9
12/1.	[0]	156708-2800	SHIM D46&36.1T1.10
12/1.	[0]	156708-2900	SHIM D46&36.1T1.3
12/1.	[0]	156708-3000	SHIM D46&36.1T1.5
12/1.	[0]	156708-3100	SHIM D46&36.1T1.7
13/1.	[0]	156708-2200	SHIM D46&36.1T0.1
13/1.	[0]	156708-2300	SHIM D46&36.1T0.12
13/1.	[0]	156708-2400	SHIM D46&36.1T0.14
13/1.	[0]	156708-2500	SHIM D46&36.1T0.16
13/1.	[0]	156708-2600	SHIM D46&36.1T0.18
13/1.	[0]	156708-2700	SHIM D46&36.1T0.9
13/1.	[0]	156708-2800	SHIM D46&36.1T1.10
13/1.	[0]	156708-2900	SHIM D46&36.1T1.3
13/1.	[0]	156708-3000	SHIM D46&36.1T1.5
13/1.	[0]	156708-3100	SHIM D46&36.1T1.7
16.	[1]	016020-3620	LOCKING WASHER
17.	[1]	156709-1000	LOCKING WASHER
18.	[1]	131325-3201	UNION NUT
19.	[1]	156708-2100	PLATE
20.	[1]	016020-3620	LOCKING WASHER
21.	[1]	156222-0100	TOOTHED GEAR
22.	[6]	139006-5600	BLEEDER SCREW

Include in #1:

101608-6370 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105676-1250

9 420 616 607

ME755643 MITSUBISHI

AUTOM. ADVANCE MECHANISM
* K 14KJ TIMER SCDM TIMER
