105676-1210 ZEXEL 9 420 616 550 BOSCH AUTOM. ADVANCE MECHANISM 9420616550 1056761210 me755119

Information autom. advance mechanism

BOSCH 9 420 616 550 9420616550

ZEXEL 105676-1210 1056761210

MITSUBISHI ME755119 me755119

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105676-1210 zexel genuine, new aftermarket engine parts with delivery

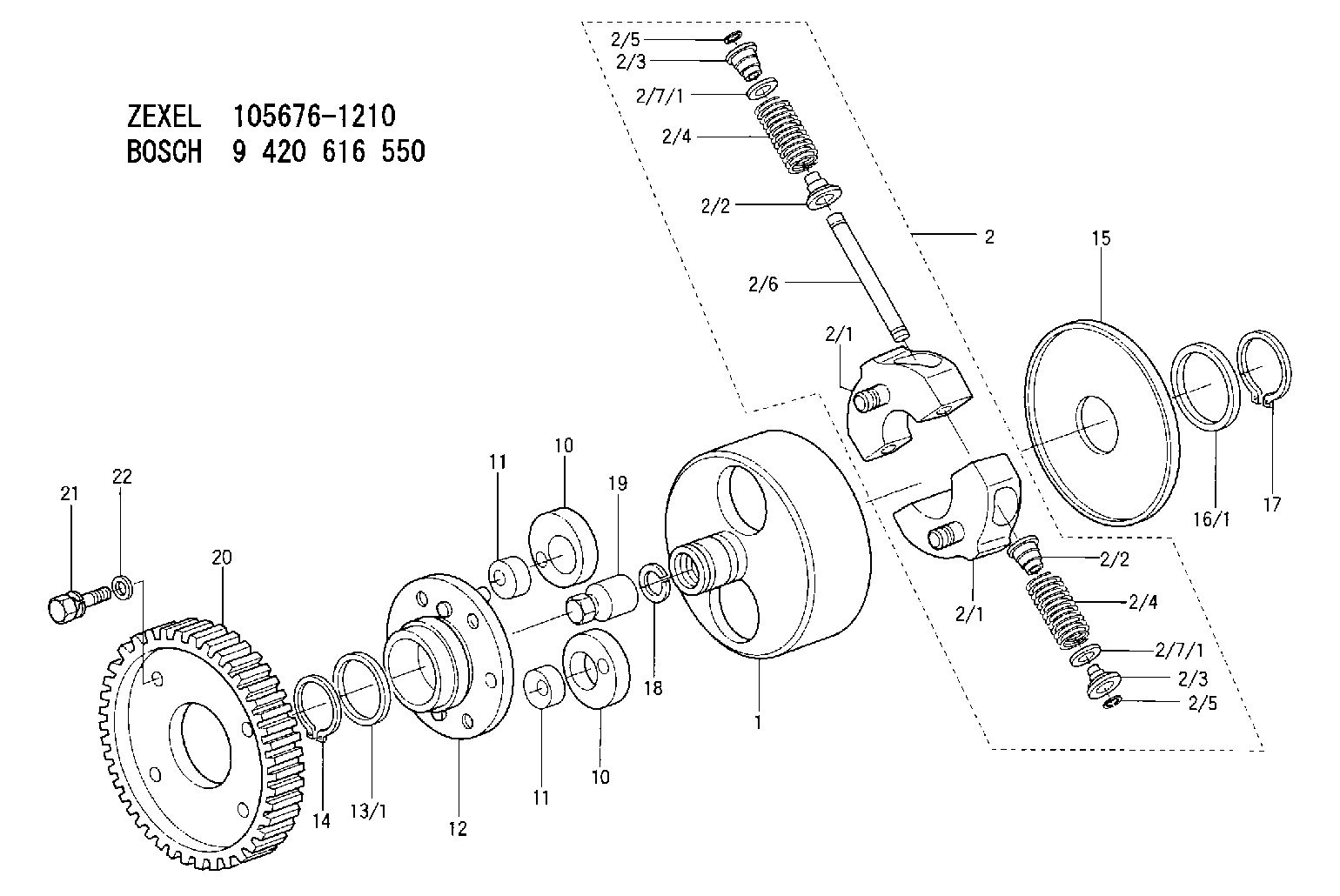

Scheme ###:

1.	[1]	156700-1401	FLANGE BUSHING
2.	[1]	156731-7620	FLYWEIGHT ASSEMBLY
2/1.	[2]	156722-8820	FLYWEIGHT
2/1.	[2]	156722-8820	FLYWEIGHT
2/2.	[4]	156727-1000	SPRING SEAT
2/2.	[4]	156727-1000	SPRING SEAT
2/3.	[4]	156727-1000	SPRING SEAT
2/3.	[4]	156727-1000	SPRING SEAT
2/4.	[4]	156759-0900	COMPRESSION SPRING
2/4.	[4]	156759-0900	COMPRESSION SPRING
2/5.	[4]	156809-0300	LOCKING WASHER
2/5.	[4]	156809-0300	LOCKING WASHER
2/6.	[2]	156726-0200	PIN
2/7/1.	[0]	156728-0800	SHIM D19&15T0.1
2/7/1.	[0]	156728-0900	SHIM D19&15T0.3
2/7/1.	[0]	156728-1000	SHIM D19&15T0.5
2/7/1.	[0]	156728-1000	SHIM D19&15T0.5
2/7/1.	[0]	156728-1100	SHIM D19&15T1.0
2/7/1.	[0]	156728-2000	SHIM D19&15T0.4
2/7/1.	[0]	156728-2100	SHIM D19&15T0.7
10.	[2]	156703-0500	ECCENTRIC DISC
10.	[2]	156703-0500	ECCENTRIC DISC
11.	[2]	156703-0600	ECCENTRIC DISC
11.	[2]	156703-0600	ECCENTRIC DISC
12.	[1]	156701-0420	FLANGE BUSHING
13/1.	[0]	156708-2200	SHIM D46&36.1T0.1
13/1.	[0]	156708-2300	SHIM D46&36.1T0.12
13/1.	[0]	156708-2400	SHIM D46&36.1T0.14
13/1.	[0]	156708-2500	SHIM D46&36.1T0.16
13/1.	[0]	156708-2600	SHIM D46&36.1T0.18
13/1.	[0]	156708-2700	SHIM D46&36.1T0.9
13/1.	[0]	156708-2800	SHIM D46&36.1T1.10
13/1.	[0]	156708-2900	SHIM D46&36.1T1.3
13/1.	[0]	156708-3000	SHIM D46&36.1T1.5
13/1.	[0]	156708-3100	SHIM D46&36.1T1.7
14.	[1]	156729-2400	LOCKING WASHER
15.	[1]	156709-0800	COVER
16/1.	[0]	156708-2200	SHIM D46&36.1T0.1
16/1.	[0]	156708-2300	SHIM D46&36.1T0.12
16/1.	[0]	156708-2400	SHIM D46&36.1T0.14
16/1.	[0]	156708-2500	SHIM D46&36.1T0.16
16/1.	[0]	156708-2600	SHIM D46&36.1T0.18
16/1.	[0]	156708-2700	SHIM D46&36.1T0.9
16/1.	[0]	156708-2800	SHIM D46&36.1T1.10
16/1.	[0]	156708-2900	SHIM D46&36.1T1.3
16/1.	[0]	156708-3000	SHIM D46&36.1T1.5
16/1.	[0]	156708-3100	SHIM D46&36.1T1.7
17.	[1]	156729-2400	LOCKING WASHER
18.	[1]	029321-4060	LOCKING WASHER
19.	[1]	131325-3100	UNION NUT
20.	[1]	156221-7400	TOOTHED GEAR
21.	[4]	156633-6300	BLEEDER SCREW
22.	[4]	156615-1800	PLAIN WASHER

Include in #1:

101401-1841 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105676-1210

9 420 616 550
NP-EP/SCDM650-750B2.5DR

ME755119 MITSUBISHI

AUTOM. ADVANCE MECHANISM
K 14KJ AUTOMATIC TIMER TIMER SCDM TIMER

Information:

Test 1 - Overspeed Switch (OS)
Table 1
Overspeed Switch (OS)
Step Engine RPM Action Correct Result
A 25 + 5 rpm less than 75% Overspeed Verify rpm Press the 75% Verify button No engine shutdown
B 25 + 5 rpm more than 75% Overspeed Verify rpm Press the 75% Verify button Air and fuel shutoff
C Manually reset the air shutoff lever at the top of the air inlet, if equipped. Press the ESS reset button. Test 2 - Emergency Stop Switch (ES)
Table 2
Emergency Stop Switch (ES)
Step Engine RPM Action Correct Result
A Any rpm above the crank terminate rpm Press the push button for the emergency stop switch Air and fuel shutoff
B Manually reset the air shutoff lever at the top of the air inlet, if equipped. Turn ES switch in the dirction that is shown on the face of the push button in order to reset the switch. Test 3 - Normal Stop Switch (NSS)
Table 3
Normal Stop Switch (NSS)
Step Engine RPM Action Correct Result
A Any rpm above the crank terminate rpm Push the normal stop switch (NSS) Fuel shutoff Test 4 - Water Temperature Contactor Switch
Table 4
Water Temperature Contactor Switch (WTS)
Step Engine RPM Action Correct Result
A Any rpm above the crank terminate rpm Place a jumper across terminals TS-2 and TS-7. Fuel shutoff
B Remove the jumper from terminals TS-2 and TS-7. Test 5 - Oil Pressure Switch (OPS1)
Table 5
Oil Pressure Switch (OPS1)
Step Engine RPM Action Correct Result
A Any rpm above the crank terminate rpm Place a jumper across terminals OPS1-1 and OPS1-3. Fuel shutoff
B Remove the jumper from terminals OPS1-1 and OPS1-3. Test 6 - Oil Pressure Switch (OPS2)
Table 6
Oil Pressure Switch (OPS2)
Step Engine RPM Action Correct Result
A 25 + 5 rpm less than the setting for the oil step speed Place a jumper across terminals OPS2-1 and OPS2-3. No engine shutdown.
B 25 + 5 rpm more than the setting for the oil step speed Place a jumper across terminals OPS2-1 and OPS2-3. Fuel shutoff 9 seconds after the oil step speed is reached.
C Remove the jumper from across terminals OPS2-1 and OPS2-3.
