105676-0710 ZEXEL 9 420 615 564 BOSCH AUTOM. ADVANCE MECHANISM 9420615564 1056760710 225002890a

Information autom. advance mechanism

BOSCH 9 420 615 564 9420615564

ZEXEL 105676-0710 1056760710

HINO 225002890A 225002890a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105676-0710 zexel genuine, new aftermarket engine parts with delivery

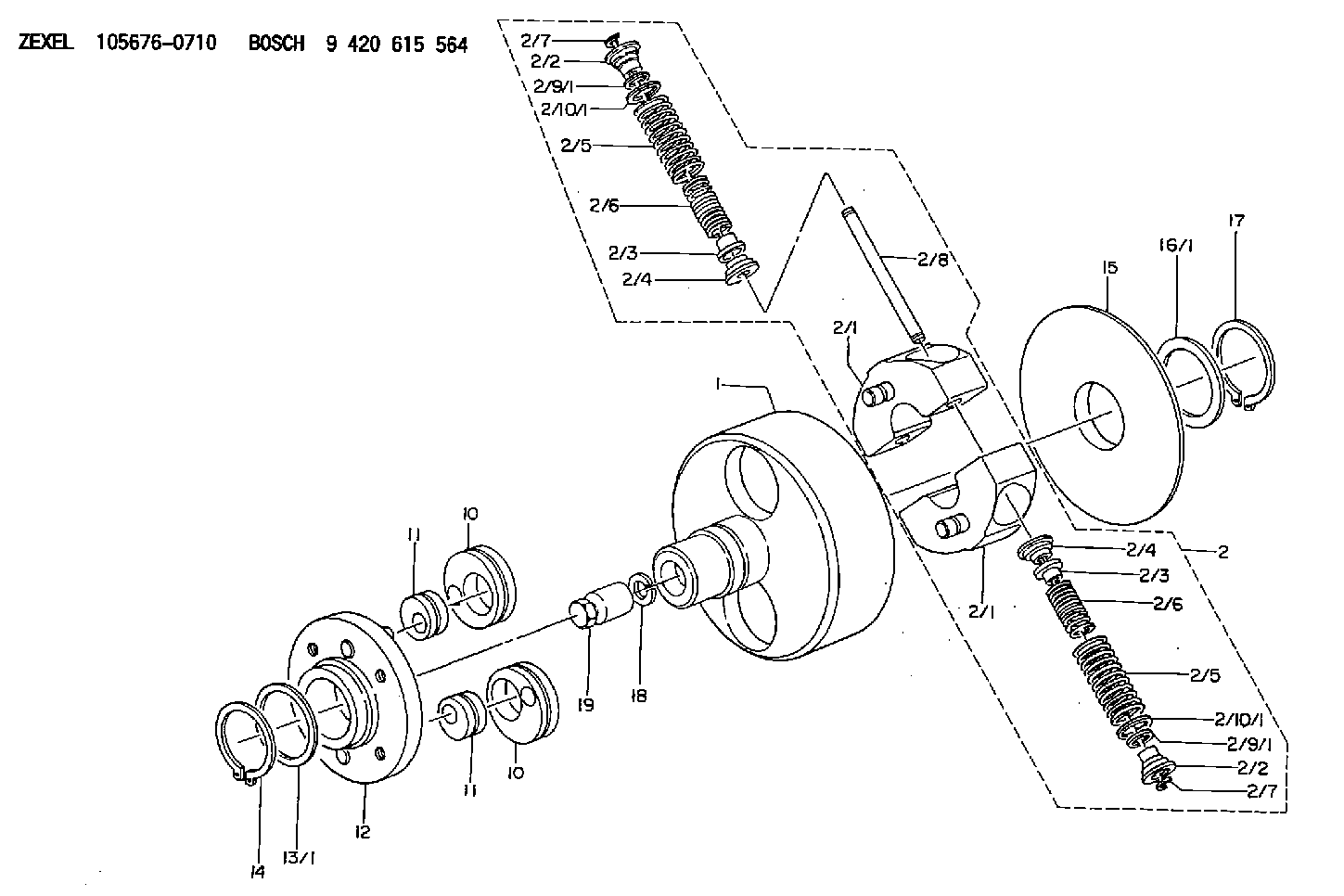

Scheme ###:

1.	[1]	156700-0800	FLANGE BUSHING
2.	[1]	156730-5320	FLYWEIGHT ASSEMBLY
2/1.	[2]	156722-7820	FLYWEIGHT
2/1.	[2]	156722-7820	FLYWEIGHT
2/2.	[4]	156807-1200	SLOTTED WASHER
2/2.	[4]	156807-1200	SLOTTED WASHER
2/3.	[4]	156807-1300	SLOTTED WASHER
2/3.	[4]	156807-1300	SLOTTED WASHER
2/4.	[4]	156727-0900	SLOTTED WASHER
2/4.	[4]	156727-0900	SLOTTED WASHER
2/5.	[4]	156725-7800	COMPRESSION SPRING
2/5.	[4]	156725-7800	COMPRESSION SPRING
2/6.	[4]	156725-8300	COMPRESSION SPRING
2/6.	[4]	156725-8300	COMPRESSION SPRING
2/7.	[4]	156729-0500	LOCKING WASHER
2/7.	[4]	156729-0500	LOCKING WASHER
2/8.	[2]	156726-0700	PIN
2/9/1.	[0]	156728-0800	SHIM D19&15T0.1
2/9/1.	[0]	156728-0800	SHIM D19&15T0.1
2/9/1.	[0]	156728-0900	SHIM D19&15T0.3
2/9/1.	[0]	156728-1000	SHIM D19&15T0.5
2/9/1.	[0]	156728-1100	SHIM D19&15T1.0
2/9/1.	[0]	156728-2000	SHIM D19&15T0.4
2/9/1.	[0]	156728-2100	SHIM D19&15T0.7
2/10/1.	[0]	156728-1200	SHIM D14&10.6T0.1
2/10/1.	[0]	156728-1300	SHIM D14&10.6T0.3
2/10/1.	[0]	156728-1400	SHIM D14&10.6T0.5
2/10/1.	[0]	156728-1500	SHIM D14&10.6T1.0
2/10/1.	[0]	156728-1500	SHIM D14&10.6T1.0
2/10/1.	[0]	156728-2200	SHIM D14&10.6T0.4
2/10/1.	[0]	156728-2300	SHIM D14&10.6T0.7
10.	[2]	156703-0400	ECCENTRIC DISC
10.	[2]	156703-0400	ECCENTRIC DISC
11.	[2]	156703-0600	ECCENTRIC DISC
11.	[2]	156703-0600	ECCENTRIC DISC
12.	[1]	156701-0420	FLANGE BUSHING
13/1.	[0]	156708-2200	SHIM D46&36.1T0.1
13/1.	[0]	156708-2300	SHIM D46&36.1T0.12
13/1.	[0]	156708-2400	SHIM D46&36.1T0.14
13/1.	[0]	156708-2500	SHIM D46&36.1T0.16
13/1.	[0]	156708-2600	SHIM D46&36.1T0.18
13/1.	[0]	156708-2700	SHIM D46&36.1T0.9
13/1.	[0]	156708-2800	SHIM D46&36.1T1.10
13/1.	[0]	156708-2900	SHIM D46&36.1T1.3
13/1.	[0]	156708-3000	SHIM D46&36.1T1.5
13/1.	[0]	156708-3100	SHIM D46&36.1T1.7
14.	[1]	016020-3610	LOCKING WASHER
15.	[1]	156709-0800	COVER
16/1.	[0]	156708-2200	SHIM D46&36.1T0.1
16/1.	[0]	156708-2300	SHIM D46&36.1T0.12
16/1.	[0]	156708-2400	SHIM D46&36.1T0.14
16/1.	[0]	156708-2500	SHIM D46&36.1T0.16
16/1.	[0]	156708-2600	SHIM D46&36.1T0.18
16/1.	[0]	156708-2700	SHIM D46&36.1T0.9
16/1.	[0]	156708-2800	SHIM D46&36.1T1.10
16/1.	[0]	156708-2900	SHIM D46&36.1T1.3
16/1.	[0]	156708-3000	SHIM D46&36.1T1.5
16/1.	[0]	156708-3100	SHIM D46&36.1T1.7
17.	[1]	016020-3610	LOCKING WASHER
18.	[1]	029321-4060	LOCKING WASHER
19.	[1]	131325-3100	UNION NUT

Include in #1:

101401-2212 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105676-0710
105676-0711

9 420 615 564

225002890A HINO

AUTOM. ADVANCE MECHANISM
* K 14KJ TIMER SCDM TIMER
