105676-0601 ZEXEL 9 420 617 163 BOSCH AUTOM. ADVANCE MECHANISM 9420617163 1056760601




Information autom. advance mechanism

BOSCH 9 420 617 163 9420617163
ZEXEL 105676-0601 1056760601
105676-0601 AUTOM. ADVANCE MECHANISM
Rating:
85
Buy AUTOM. ADVANCE MECHANISM 105676-0601 zexel genuine, new aftermarket engine parts with delivery

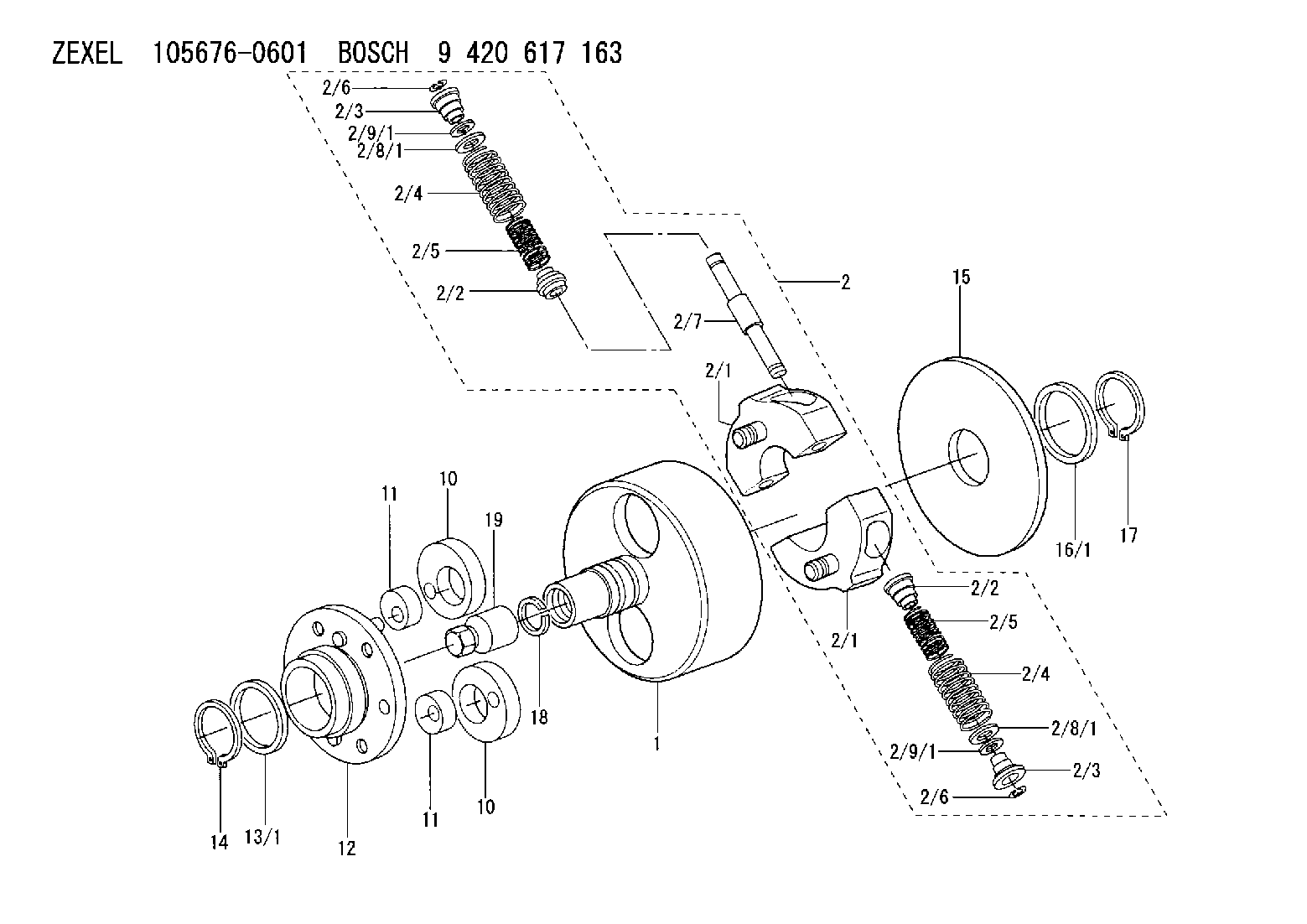

Scheme ###:

1. [1] 156700-0800 FLANGE BUSHING
2. [1] 156730-3820 FLYWEIGHT ASSEMBLY
2/1. [2] 156722-9420 FLYWEIGHT
2/1. [2] 156722-9420 FLYWEIGHT
2/2. [4] 156727-1000 SPRING SEAT
2/2. [4] 156727-1000 SPRING SEAT
2/3. [4] 156727-1000 SPRING SEAT
2/3. [4] 156727-1000 SPRING SEAT
2/4. [4] 156725-2000 COMPRESSION SPRING
2/4. [4] 156725-2000 COMPRESSION SPRING
2/5. [4] 156725-2100 COMPRESSION SPRING
2/5. [4] 156725-2100 COMPRESSION SPRING
2/6. [4] 156809-0300 LOCKING WASHER
2/6. [4] 156809-0300 LOCKING WASHER
2/7. [2] 156726-0200 PIN
2/8/1. [0] 156728-0800 SHIM D19&15T0.1
2/8/1. [0] 156728-0900 SHIM D19&15T0.3
2/8/1. [0] 156728-1000 SHIM D19&15T0.5
2/8/1. [0] 156728-1100 SHIM D19&15T1.0
2/8/1. [0] 156728-2000 SHIM D19&15T0.4
2/8/1. [0] 156728-2100 SHIM D19&15T0.7
2/8/1. [0] 156728-2400 SHIM D19&15T0.6
2/8/1. [0] 156728-2500 SHIM D19&15T0.8
2/8/1. [0] 156728-2600 SHIM D19&15T0.9
2/8/1. [0] 156728-2600 SHIM D19&15T0.9
2/9/1. [0] 156728-1200 SHIM D14&10.6T0.1
2/9/1. [0] 156728-1200 SHIM D14&10.6T0.1
2/9/1. [0] 156728-1300 SHIM D14&10.6T0.3
2/9/1. [0] 156728-1400 SHIM D14&10.6T0.5
2/9/1. [0] 156728-1500 SHIM D14&10.6T1.0
2/9/1. [0] 156728-2200 SHIM D14&10.6T0.4
2/9/1. [0] 156728-2300 SHIM D14&10.6T0.7
2/9/1. [0] 156728-2700 SHIM D14&10.6T0.6
2/9/1. [0] 156728-2800 SHIM D14&10.6T0.8
2/9/1. [0] 156728-2900 SHIM D14&10.6T0.9
10. [2] 156703-0500 ECCENTRIC DISC
10. [2] 156703-0500 ECCENTRIC DISC
11. [2] 156703-0600 ECCENTRIC DISC
11. [2] 156703-0600 ECCENTRIC DISC
12. [1] 156701-0820 FLANGE BUSHING
13/1. [0] 156708-2200 SHIM D46&36.1T0.1
13/1. [0] 156708-2300 SHIM D46&36.1T0.12
13/1. [0] 156708-2400 SHIM D46&36.1T0.14
13/1. [0] 156708-2500 SHIM D46&36.1T0.16
13/1. [0] 156708-2600 SHIM D46&36.1T0.18
13/1. [0] 156708-2700 SHIM D46&36.1T0.9
13/1. [0] 156708-2800 SHIM D46&36.1T1.10
13/1. [0] 156708-2900 SHIM D46&36.1T1.3
13/1. [0] 156708-3000 SHIM D46&36.1T1.5
13/1. [0] 156708-3100 SHIM D46&36.1T1.7
14. [1] 156729-2400 LOCKING WASHER
15. [1] 156709-0800 COVER
16/1. [0] 156708-2200 SHIM D46&36.1T0.1
16/1. [0] 156708-2300 SHIM D46&36.1T0.12
16/1. [0] 156708-2400 SHIM D46&36.1T0.14
16/1. [0] 156708-2500 SHIM D46&36.1T0.16
16/1. [0] 156708-2600 SHIM D46&36.1T0.18
16/1. [0] 156708-2700 SHIM D46&36.1T0.9
16/1. [0] 156708-2800 SHIM D46&36.1T1.10
16/1. [0] 156708-2900 SHIM D46&36.1T1.3
16/1. [0] 156708-3000 SHIM D46&36.1T1.5
16/1. [0] 156708-3100 SHIM D46&36.1T1.7
17. [1] 156729-2400 LOCKING WASHER
18. [1] 029321-4060 LOCKING WASHER
19. [1] 131325-3100 UNION NUT

Include in #1:

101401-2161 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num
Bosch num
Firm num
Name
105676-0601
9 420 617 163
NP-EP/SCDM1300-1600B3.5ER

AUTOM. ADVANCE MECHANISM
K




Information:


Personal injury can result from being struck by parts propelled by a released spring force.Make sure to wear all necessary protective equipment.Follow the recommended procedure and use all recommended tooling to release the spring force.
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.Dispose of all fluids according to local regulations and mandates.
If possible, take the fuel injection pump to a clean work area.
Clean the outside surfaces of the fuel injection pump.
Illustration 1 g03117860
Typical example
Place a suitable container under the fuel injection pump to collect any fuel from the fuel injection pump. Use a suitable tool to loosen the drain plug (1). If necessary, retain the fuel collected for analysis if required.
Illustration 2 g03117878
Typical example
Use a suitable pair of pliers to remove the throttle return spring (2).Note: Care should be taken when the spring is removed.
Illustration 3 g03117896
Typical example
Loosen self-locking nut (3). Do not remove the nut.
Illustration 4 g03117916
Typical example
Use a suitable pair of pliers to lift and disconnect throttle spring (4). Remove self-locking nut (3), washer, upper retainer, spring, lower retainer, spacer, lever, and dust cap.Note: Care should be taken when the spring is removed.
Illustration 5 g03117938
Typical example
Remove four screws (6) in the governor cover (7). Gently push the throttle shaft (5) down into the cover (7).
Illustration 6 g03117956
Typical example
To inspect the internal components of the fuel injection pump, gently lift and rotate the cover (7).Note: The cover is still connected internally, if resistance is felt, lower the cover and move the cover backwards. Attempt to lift the cover again.
Inspect the internal components of the fuel injection pump. Refer to steps 9a and 9b.
Illustration 7 g03117961
Typical example
If good quality fuel is being used, the components will be clean. Refer to illustration 7. Take photographs of the identification plate of the fuel injection pump and any evidence found. Attach the photographs to support the claim story.
Illustration 8 g03118119
Typical example
Illustration 9 g03118121
Typical example
If the injection pump has been run with excessive water in the fuel, there will be signs of rust and oxidization of the steel components. Refer to illustration 8. Fuel with dirt ingress will show a build-up of dirt on the components. Refer to illustration 9.Note: Issues with the fuel injection pump that are due to dirt and water void Caterpillar warranty. Advise the customer on the correct fuel, maintenance, and fuel storage procedures. Refer to the relevant Operation and Maintenance Manual for more information.If the fuel injection pump shows signs that contaminated fuel is the root cause of the problem, the evidence can be shown to the customer immediately.After the fuel injection pump has been inspected, the fuel injection pump must not be used in service.Rebuild the fuel injection pump. Refer to steps 1 to 6
Lower the cover (7) back into position. Ensure the throttle shaft (5), has been returned to the original position.
Install the four screws (6) to the cover (7). Tighten the
