105676-0600 ZEXEL 9 420 616 449 BOSCH AUTOM. ADVANCE MECHANISM 9420616449 1056760600 225002770a

Information autom. advance mechanism

BOSCH 9 420 616 449 9420616449

ZEXEL 105676-0600 1056760600

HINO 225002770A 225002770a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105676-0600 zexel genuine, new aftermarket engine parts with delivery

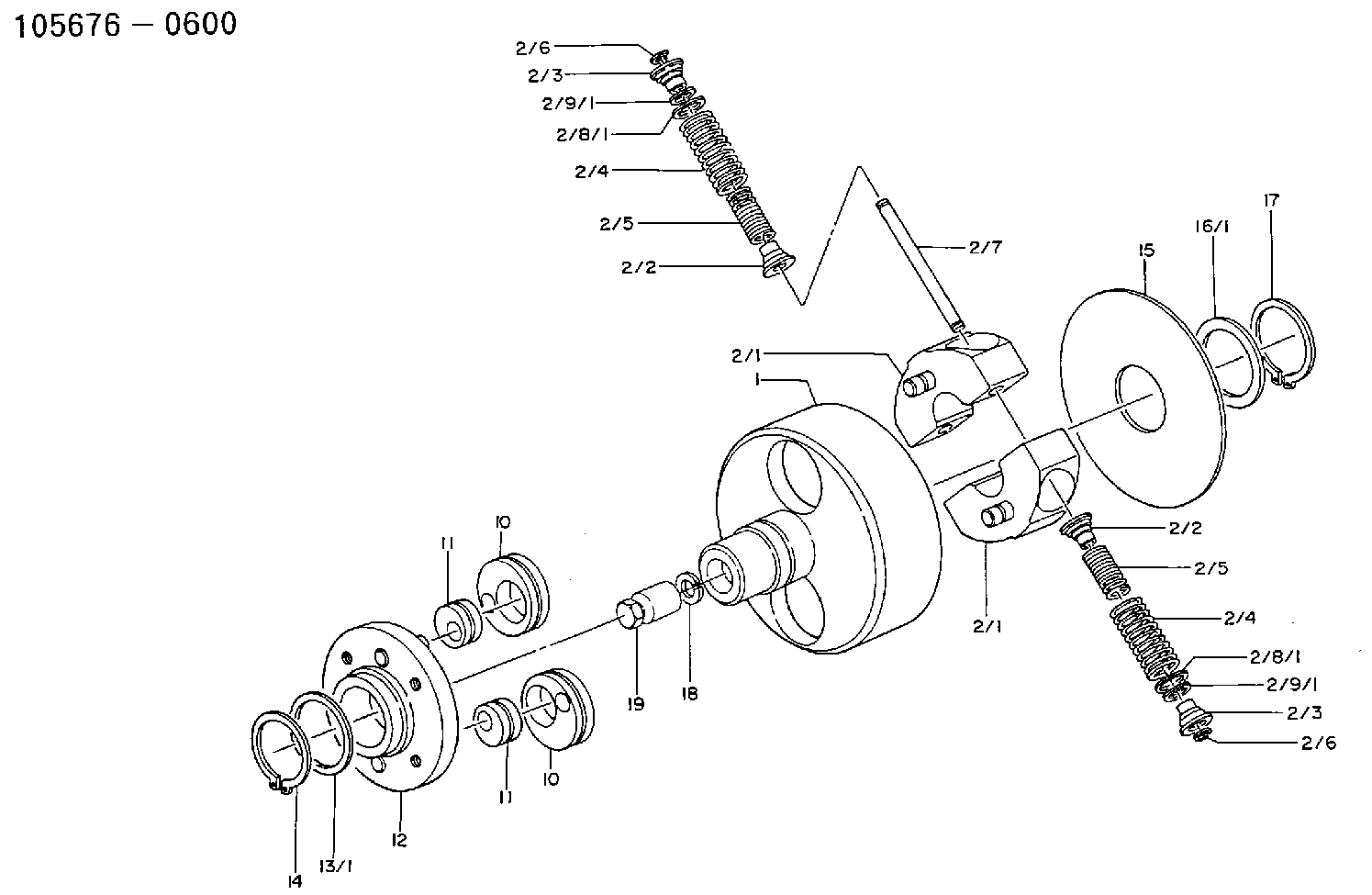

Scheme ###:

1.	[1]	156700-0800	FLANGE BUSHING
2.	[1]	156730-3820	FLYWEIGHT ASSEMBLY
2/1.	[2]	156722-9420	FLYWEIGHT
2/1.	[2]	156722-9420	FLYWEIGHT
2/2.	[4]	156727-1000	SPRING SEAT
2/2.	[4]	156727-1000	SPRING SEAT
2/3.	[4]	156727-1000	SPRING SEAT
2/3.	[4]	156727-1000	SPRING SEAT
2/4.	[4]	156725-2000	COMPRESSION SPRING
2/4.	[4]	156725-2000	COMPRESSION SPRING
2/5.	[4]	156725-2100	COMPRESSION SPRING
2/5.	[4]	156725-2100	COMPRESSION SPRING
2/6.	[4]	156809-0300	LOCKING WASHER
2/6.	[4]	156809-0300	LOCKING WASHER
2/7.	[2]	156726-0200	PIN
2/8/1.	[0]	156728-0800	SHIM D19&15T0.1
2/8/1.	[0]	156728-0800	SHIM D19&15T0.1
2/8/1.	[0]	156728-0900	SHIM D19&15T0.3
2/8/1.	[0]	156728-1000	SHIM D19&15T0.5
2/8/1.	[0]	156728-1100	SHIM D19&15T1.0
2/8/1.	[0]	156728-2000	SHIM D19&15T0.4
2/8/1.	[0]	156728-2100	SHIM D19&15T0.7
2/9/1.	[0]	156728-1200	SHIM D14&10.6T0.1
2/9/1.	[0]	156728-1200	SHIM D14&10.6T0.1
2/9/1.	[0]	156728-1300	SHIM D14&10.6T0.3
2/9/1.	[0]	156728-1400	SHIM D14&10.6T0.5
2/9/1.	[0]	156728-1500	SHIM D14&10.6T1.0
2/9/1.	[0]	156728-2200	SHIM D14&10.6T0.4
2/9/1.	[0]	156728-2300	SHIM D14&10.6T0.7
10.	[2]	156703-0500	ECCENTRIC DISC
10.	[2]	156703-0500	ECCENTRIC DISC
11.	[2]	156703-0600	ECCENTRIC DISC
11.	[2]	156703-0600	ECCENTRIC DISC
12.	[1]	156701-0420	FLANGE BUSHING
13/1.	[0]	156708-2200	SHIM D46&36.1T0.1
13/1.	[0]	156708-2300	SHIM D46&36.1T0.12
13/1.	[0]	156708-2400	SHIM D46&36.1T0.14
13/1.	[0]	156708-2500	SHIM D46&36.1T0.16
13/1.	[0]	156708-2600	SHIM D46&36.1T0.18
13/1.	[0]	156708-2700	SHIM D46&36.1T0.9
13/1.	[0]	156708-2800	SHIM D46&36.1T1.10
13/1.	[0]	156708-2900	SHIM D46&36.1T1.3
13/1.	[0]	156708-3000	SHIM D46&36.1T1.5
13/1.	[0]	156708-3100	SHIM D46&36.1T1.7
14.	[1]	016020-3610	LOCKING WASHER
15.	[1]	156709-0800	COVER
16/1.	[0]	156708-2200	SHIM D46&36.1T0.1
16/1.	[0]	156708-2300	SHIM D46&36.1T0.12
16/1.	[0]	156708-2400	SHIM D46&36.1T0.14
16/1.	[0]	156708-2500	SHIM D46&36.1T0.16
16/1.	[0]	156708-2600	SHIM D46&36.1T0.18
16/1.	[0]	156708-2700	SHIM D46&36.1T0.9
16/1.	[0]	156708-2800	SHIM D46&36.1T1.10
16/1.	[0]	156708-2900	SHIM D46&36.1T1.3
16/1.	[0]	156708-3000	SHIM D46&36.1T1.5
16/1.	[0]	156708-3100	SHIM D46&36.1T1.7
17.	[1]	016020-3610	LOCKING WASHER
18.	[1]	029321-4060	LOCKING WASHER
19.	[1]	131325-3100	UNION NUT

Include in #1:

101401-2160 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105676-0600
105676-0601

9 420 616 449

225002770A HINO

AUTOM. ADVANCE MECHANISM
* K

Information:

*******Group 2*******
C18 N8F00529-00532, 534-535, 542-545
PARTS NEEDED
Qty
Part Number Description
*******Group 1*******
6 20R3454 INJECTOR GP-FUEL
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 12% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
*******Group 2*******
6 20R3454 INJECTOR GP-FUEL
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 12% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
If a single injector fails, replace all six injectors at the time of failure. Refer to Disassembly and Assembly, UENR0132, "Valve Mechanism Cover - Remove and Install" and "Electronic Unit Injector - Remove and Install" to complete the repair.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 1*******
0-6000 hrs,
0-60 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 4.0-hour job for Group 1
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 2*******
0-6000 hrs,
0-60 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 4.0-hour job for Group 2
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
