105676-0470 ZEXEL 9 420 616 447 BOSCH AUTOM. ADVANCE MECHANISM 9420616447 1056760470 me723257




Information autom. advance mechanism

BOSCH 9 420 616 447 9420616447
ZEXEL 105676-0470 1056760470
MITSUBISHI ME723257 me723257
105676-0470 AUTOM. ADVANCE MECHANISM
Rating:
65
Buy AUTOM. ADVANCE MECHANISM 105676-0470 zexel genuine, new aftermarket engine parts with delivery

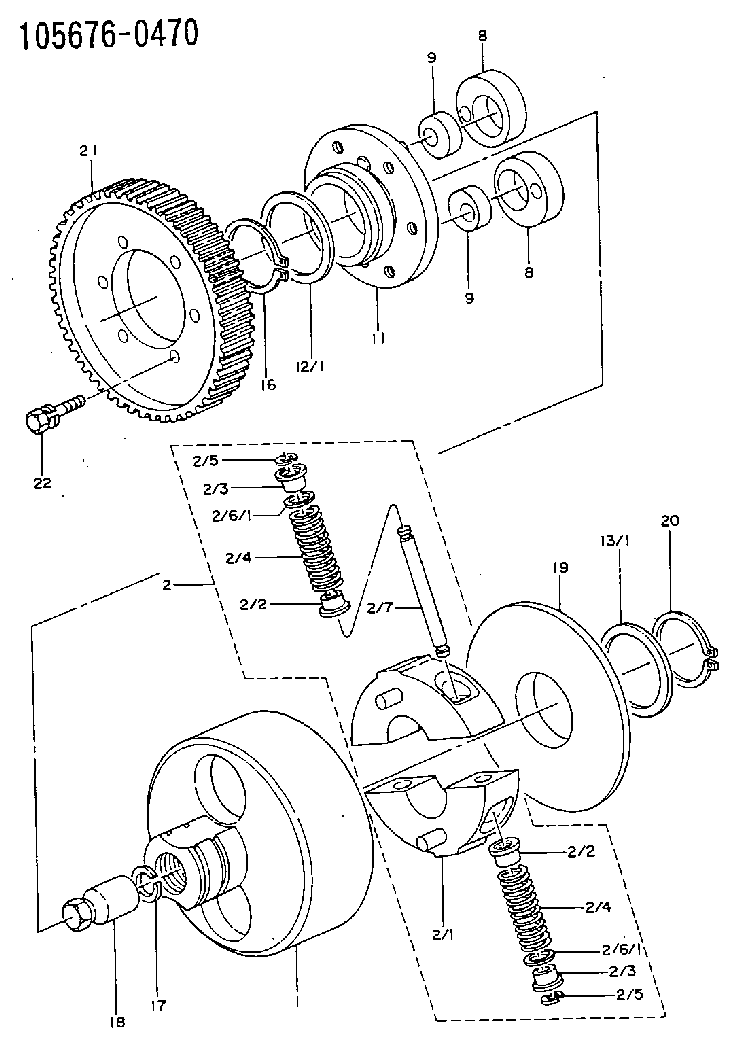

Scheme ###:

1. [1] 156700-0100 FLANGE BUSHING
2. [1] 156710-5020 FLYWEIGHT ASSEMBLY
2/1. [2] 156702-8720 FLYWEIGHT
2/2. [4] 156707-0100 SLOTTED WASHER
2/2. [4] 156707-0100 SLOTTED WASHER
2/3. [4] 156707-0000 SLOTTED WASHER
2/3. [4] 156707-0000 SLOTTED WASHER
2/4. [4] 156705-0300 COMPRESSION SPRING
2/4. [4] 156705-0300 COMPRESSION SPRING
2/5. [4] 156709-0200 LOCKING WASHER
2/5. [4] 156709-0200 LOCKING WASHER
2/6/1. [0] 156708-3600 SHIM D15.5&11.5T0.1
2/6/1. [0] 156708-3600 SHIM D15.5&11.5T0.1
2/6/1. [0] 156708-3700 SHIM D15.5&11.5T0.2
2/6/1. [0] 156708-3800 SHIM D15.5&11.5T0.3
2/6/1. [0] 156708-3900 SHIM D15.5&11.5T0.4
2/6/1. [0] 156708-4000 SHIM D15.5&11.5T0.5
2/6/1. [0] 156708-4100 SHIM D15.5&11.5T0.6
2/6/1. [0] 156708-4200 SHIM D15.5&11.5T0.7
2/6/1. [0] 156708-4300 SHIM D15.5&11.5T0.8
2/6/1. [0] 156708-4400 SHIM D15.5&11.5T0.9
2/6/1. [0] 156708-4500 SHIM D15.5&11.5T1.0
2/7. [2] 156706-0000 PIN
8. [2] 156703-0500 ECCENTRIC DISC
8. [2] 156703-0500 ECCENTRIC DISC
9. [2] 156703-0600 ECCENTRIC DISC
9. [2] 156703-0600 ECCENTRIC DISC
11. [1] 156701-0120 FLANGE BUSHING
12/1. [0] 156708-2200 SHIM D46&36.1T0.1
12/1. [0] 156708-2300 SHIM D46&36.1T0.12
12/1. [0] 156708-2400 SHIM D46&36.1T0.14
12/1. [0] 156708-2500 SHIM D46&36.1T0.16
12/1. [0] 156708-2600 SHIM D46&36.1T0.18
12/1. [0] 156708-2700 SHIM D46&36.1T0.9
12/1. [0] 156708-2800 SHIM D46&36.1T1.10
12/1. [0] 156708-2900 SHIM D46&36.1T1.3
12/1. [0] 156708-3000 SHIM D46&36.1T1.5
12/1. [0] 156708-3100 SHIM D46&36.1T1.7
13/1. [0] 156708-2200 SHIM D46&36.1T0.1
13/1. [0] 156708-2300 SHIM D46&36.1T0.12
13/1. [0] 156708-2400 SHIM D46&36.1T0.14
13/1. [0] 156708-2500 SHIM D46&36.1T0.16
13/1. [0] 156708-2600 SHIM D46&36.1T0.18
13/1. [0] 156708-2700 SHIM D46&36.1T0.9
13/1. [0] 156708-2800 SHIM D46&36.1T1.10
13/1. [0] 156708-2900 SHIM D46&36.1T1.3
13/1. [0] 156708-3000 SHIM D46&36.1T1.5
13/1. [0] 156708-3100 SHIM D46&36.1T1.7
16. [1] 156729-2400 LOCKING WASHER
17. [1] 156709-1000 LOCKING WASHER
18. [1] 131325-3201 UNION NUT
19. [1] 156708-2100 PLATE
20. [1] 156729-2400 LOCKING WASHER
21. [1] 156211-9600 TOOTHED GEAR
22. [6] 139006-5600 BLEEDER SCREW

Include in #1:

101401-1311 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num
Bosch num
Firm num
Name
105676-0470
9 420 616 447
NP-EP/SCDM1450-1750B4.5DR
ME723257  MITSUBISHI
AUTOM. ADVANCE MECHANISM
K 14KJ AUTOMATIC TIMER TIMER SCDM TIMER
