105676-0231 ZEXEL 9 420 617 205 BOSCH AUTOM. ADVANCE MECHANISM 9420617205 1056760231

Information autom. advance mechanism

BOSCH 9 420 617 205 9420617205

ZEXEL 105676-0231 1056760231

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105676-0231 zexel genuine, new aftermarket engine parts with delivery

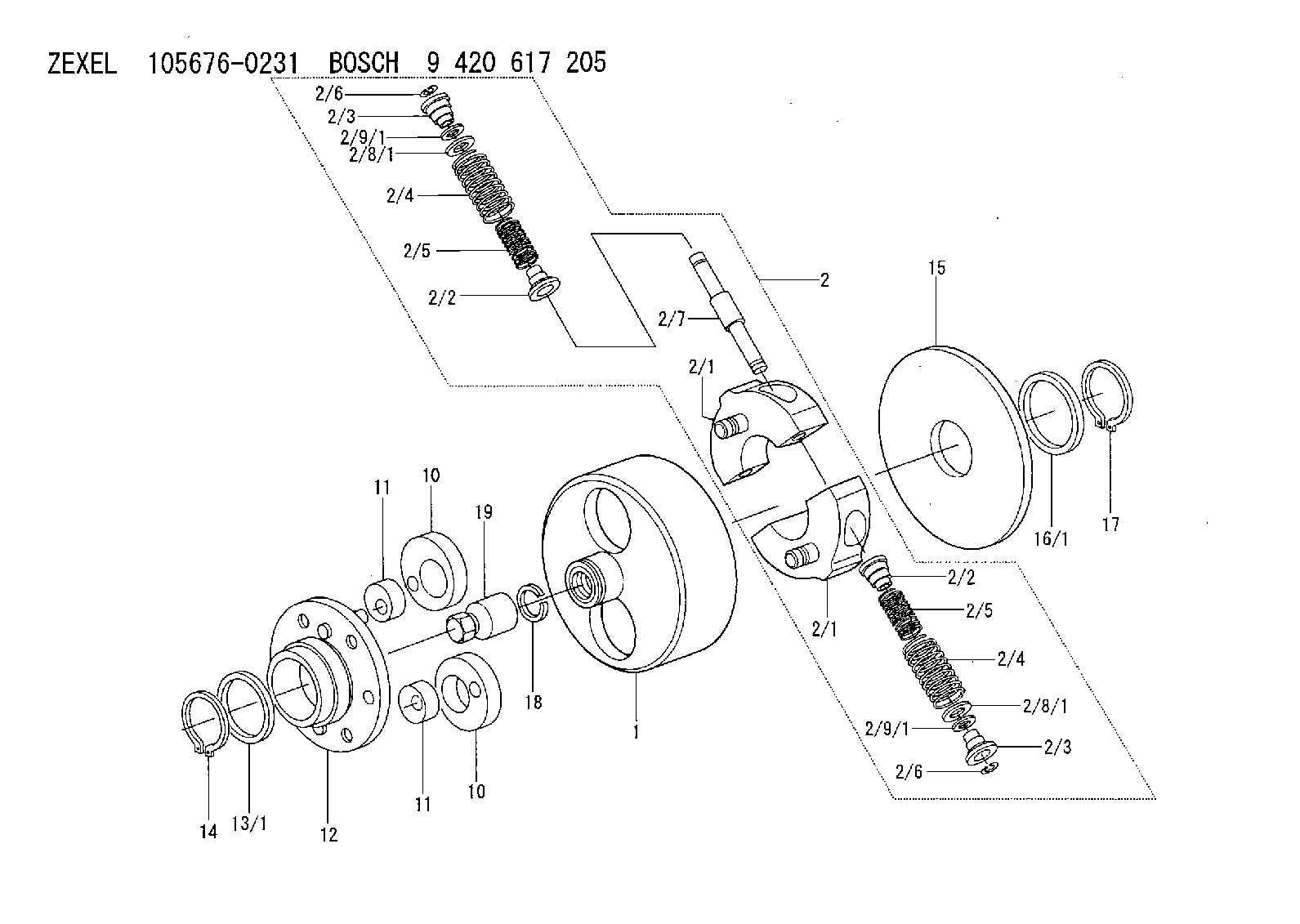

Scheme ###:

1.	[1]	156700-0800	FLANGE BUSHING
2.	[1]	156730-0920	FLYWEIGHT ASSEMBLY
2/1.	[2]	156722-9420	FLYWEIGHT
2/1.	[2]	156722-9420	FLYWEIGHT
2/2.	[4]	156727-1000	SPRING SEAT
2/2.	[4]	156727-1000	SPRING SEAT
2/3.	[4]	156727-1000	SPRING SEAT
2/3.	[4]	156727-1000	SPRING SEAT
2/4.	[4]	156724-2800	COMPRESSION SPRING
2/4.	[4]	156724-2800	COMPRESSION SPRING
2/5.	[4]	156724-2900	COMPRESSION SPRING
2/5.	[4]	156724-2900	COMPRESSION SPRING
2/6.	[4]	156809-0300	LOCKING WASHER
2/6.	[4]	156809-0300	LOCKING WASHER
2/7.	[2]	156726-0200	PIN
2/8/1.	[0]	156728-0800	SHIM D19&15T0.1
2/8/1.	[0]	156728-0900	SHIM D19&15T0.3
2/8/1.	[0]	156728-1000	SHIM D19&15T0.5
2/8/1.	[0]	156728-1100	SHIM D19&15T1.0
2/8/1.	[0]	156728-2000	SHIM D19&15T0.4
2/8/1.	[0]	156728-2100	SHIM D19&15T0.7
2/8/1.	[0]	156728-2400	SHIM D19&15T0.6
2/8/1.	[0]	156728-2500	SHIM D19&15T0.8
2/8/1.	[0]	156728-2600	SHIM D19&15T0.9
2/8/1.	[0]	156728-2600	SHIM D19&15T0.9
2/9/1.	[0]	156728-1200	SHIM D14&10.6T0.1
2/9/1.	[0]	156728-1300	SHIM D14&10.6T0.3
2/9/1.	[0]	156728-1400	SHIM D14&10.6T0.5
2/9/1.	[0]	156728-1500	SHIM D14&10.6T1.0
2/9/1.	[0]	156728-2200	SHIM D14&10.6T0.4
2/9/1.	[0]	156728-2300	SHIM D14&10.6T0.7
2/9/1.	[0]	156728-2300	SHIM D14&10.6T0.7
2/9/1.	[0]	156728-2700	SHIM D14&10.6T0.6
2/9/1.	[0]	156728-2800	SHIM D14&10.6T0.8
2/9/1.	[0]	156728-2900	SHIM D14&10.6T0.9
10.	[2]	156703-0500	ECCENTRIC DISC
10.	[2]	156703-0500	ECCENTRIC DISC
11.	[2]	156703-0600	ECCENTRIC DISC
11.	[2]	156703-0600	ECCENTRIC DISC
12.	[1]	156701-0820	FLANGE BUSHING
13/1.	[0]	156708-2200	SHIM D46&36.1T0.1
13/1.	[0]	156708-2300	SHIM D46&36.1T0.12
13/1.	[0]	156708-2400	SHIM D46&36.1T0.14
13/1.	[0]	156708-2500	SHIM D46&36.1T0.16
13/1.	[0]	156708-2600	SHIM D46&36.1T0.18
13/1.	[0]	156708-2700	SHIM D46&36.1T0.9
13/1.	[0]	156708-2800	SHIM D46&36.1T1.10
13/1.	[0]	156708-2900	SHIM D46&36.1T1.3
13/1.	[0]	156708-3000	SHIM D46&36.1T1.5
13/1.	[0]	156708-3100	SHIM D46&36.1T1.7
14.	[1]	156729-2400	LOCKING WASHER
15.	[1]	156709-0800	COVER
16/1.	[0]	156708-2200	SHIM D46&36.1T0.1
16/1.	[0]	156708-2300	SHIM D46&36.1T0.12
16/1.	[0]	156708-2400	SHIM D46&36.1T0.14
16/1.	[0]	156708-2500	SHIM D46&36.1T0.16
16/1.	[0]	156708-2600	SHIM D46&36.1T0.18
16/1.	[0]	156708-2700	SHIM D46&36.1T0.9
16/1.	[0]	156708-2800	SHIM D46&36.1T1.10
16/1.	[0]	156708-2900	SHIM D46&36.1T1.3
16/1.	[0]	156708-3000	SHIM D46&36.1T1.5
16/1.	[0]	156708-3100	SHIM D46&36.1T1.7
17.	[1]	156729-2400	LOCKING WASHER
18.	[1]	029321-4060	LOCKING WASHER
19.	[1]	131325-3100	UNION NUT

Include in #1:

101401-2042 as AUTOM. ADVANCE MECHANIS

101401-2073

101401-2081

101401-2111

Cross reference number

Zexel num

Bosch num

Firm num

Name

105676-0231

9 420 617 205
NP-EP/SCDM1300-1600B3.5ER

AUTOM. ADVANCE MECHANISM
K
