105676-0110 ZEXEL 9 420 616 442 BOSCH AUTOM. ADVANCE MECHANISM 9420616442 1056760110 225001910a

Information autom. advance mechanism

BOSCH 9 420 616 442 9420616442

ZEXEL 105676-0110 1056760110

HINO 225001910A 225001910a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105676-0110 zexel genuine, new aftermarket engine parts with delivery

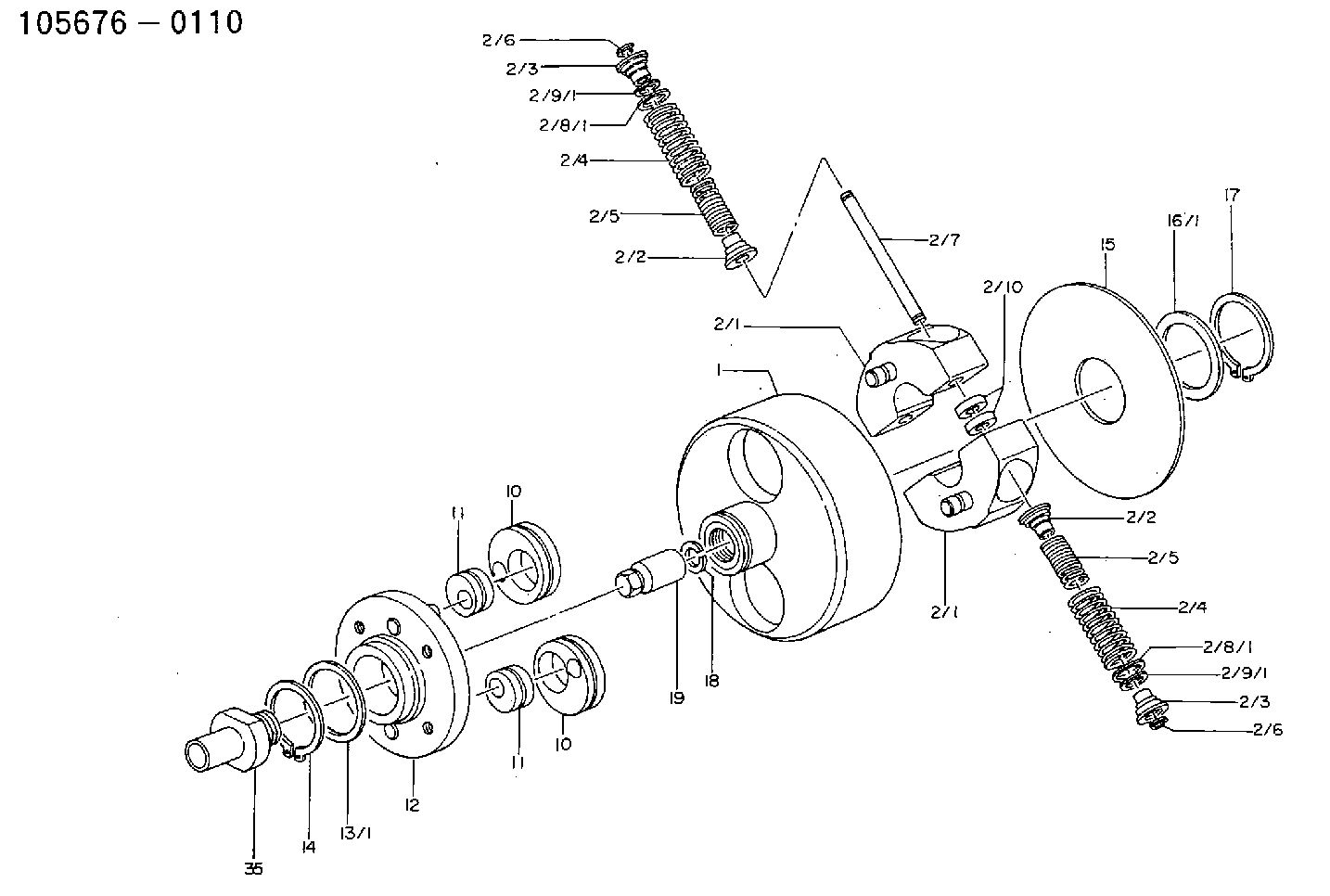

Scheme ###:

1.	[1]	156700-0500	FLANGE BUSHING
2.	[1]	156730-0420	FLYWEIGHT ASSEMBLY
2/1.	[2]	156722-9720	FLYWEIGHT
2/1.	[2]	156722-9720	FLYWEIGHT
2/2.	[4]	156727-0300	SPRING SEAT
2/2.	[4]	156727-0300	SPRING SEAT
2/3.	[4]	156727-0300	SPRING SEAT
2/3.	[4]	156727-0300	SPRING SEAT
2/4.	[4]	156704-3800	COMPRESSION SPRING
2/4.	[4]	156704-3800	COMPRESSION SPRING
2/5.	[4]	156704-1900	COMPRESSION SPRING
2/5.	[4]	156704-1900	COMPRESSION SPRING
2/6.	[4]	156809-0300	LOCKING WASHER
2/6.	[4]	156809-0300	LOCKING WASHER
2/7.	[2]	156726-0100	PIN
2/8/1.	[0]	156728-0800	SHIM D19&15T0.1
2/8/1.	[0]	156728-0800	SHIM D19&15T0.1
2/8/1.	[0]	156728-0900	SHIM D19&15T0.3
2/8/1.	[0]	156728-1000	SHIM D19&15T0.5
2/8/1.	[0]	156728-1100	SHIM D19&15T1.0
2/8/1.	[0]	156728-2000	SHIM D19&15T0.4
2/8/1.	[0]	156728-2100	SHIM D19&15T0.7
2/9/1.	[0]	156728-1200	SHIM D14&10.6T0.1
2/9/1.	[0]	156728-1200	SHIM D14&10.6T0.1
2/9/1.	[0]	156728-1300	SHIM D14&10.6T0.3
2/9/1.	[0]	156728-1400	SHIM D14&10.6T0.5
2/9/1.	[0]	156728-1500	SHIM D14&10.6T1.0
2/9/1.	[0]	156728-2200	SHIM D14&10.6T0.4
2/9/1.	[0]	156728-2300	SHIM D14&10.6T0.7
2/10.	[2]	156808-0800	SPACER BUSHING
10.	[2]	156723-0700	ECCENTRIC DISC
10.	[2]	156723-0700	ECCENTRIC DISC
11.	[2]	156723-0400	ECCENTRIC DISC
11.	[2]	156723-0400	ECCENTRIC DISC
12.	[1]	156701-0320	FLANGE BUSHING
13/1.	[0]	156708-2200	SHIM D46&36.1T0.1
13/1.	[0]	156708-2300	SHIM D46&36.1T0.12
13/1.	[0]	156708-2400	SHIM D46&36.1T0.14
13/1.	[0]	156708-2500	SHIM D46&36.1T0.16
13/1.	[0]	156708-2600	SHIM D46&36.1T0.18
13/1.	[0]	156708-2700	SHIM D46&36.1T0.9
13/1.	[0]	156708-2800	SHIM D46&36.1T1.10
13/1.	[0]	156708-2900	SHIM D46&36.1T1.3
13/1.	[0]	156708-3000	SHIM D46&36.1T1.5
13/1.	[0]	156708-3100	SHIM D46&36.1T1.7
14.	[1]	016020-3620	LOCKING WASHER
15.	[1]	156709-0600	PLATE
16/1.	[0]	156708-2200	SHIM D46&36.1T0.1
16/1.	[0]	156708-2300	SHIM D46&36.1T0.12
16/1.	[0]	156708-2400	SHIM D46&36.1T0.14
16/1.	[0]	156708-2500	SHIM D46&36.1T0.16
16/1.	[0]	156708-2600	SHIM D46&36.1T0.18
16/1.	[0]	156708-2700	SHIM D46&36.1T0.9
16/1.	[0]	156708-2800	SHIM D46&36.1T1.10
16/1.	[0]	156708-2900	SHIM D46&36.1T1.3
16/1.	[0]	156708-3000	SHIM D46&36.1T1.5
16/1.	[0]	156708-3100	SHIM D46&36.1T1.7
17.	[1]	016020-3620	LOCKING WASHER
18.	[1]	029321-4060	LOCKING WASHER
19.	[1]	131325-3100	UNION NUT
35.	[1]	156709-0900	ADAPTOR

Include in #1:

101601-2930 as AUTOM. ADVANCE MECHANIS

101601-2931

101601-2991

101601-5110

Cross reference number

Zexel num

Bosch num

Firm num

Name

105676-0110

9 420 616 442

225001910A HINO

AUTOM. ADVANCE MECHANISM
* K

Information:

Start Bya. remove flywheel
Do not damage the flange on the crankshaft when the crankshaft rear seal is removed. Use of any other tool, other than Tool (A), to remove the crankshaft rear seal, can result in damage to the crankshaft.
1. Carefully make three evenly spaced holes in the crankshaft rear seal with a hammer and sharp punch. Use Tool (A) to remove crankshaft rear seal (1). Do not damage the flange of the crankshaft during seal removal. The following steps are for the installation of the crankshaft rear seal.2. Be sure the flange of the crankshaft is thoroughly clean prior to seal installation. 3. Fasten the 1U7595 Locator Assembly [part of Tool (B)] to the rear of the crankshaft as shown.4. Leaving the seal shipping sleeve in position on the new crankshaft rear seal, position the new seal over the locator assembly. The 1U7597 Sleeve Ring [part of Tool (B)] is not used in this in the seal installation.5. Install the 1U7594 Installer [part of Tool (B)] on the locator assembly. Tighten the nut assembly of Tool (B) to push the crankshaft rear seal into position on the flange of the crankshaft. Remove Tool (B) and the shipping sleeve. The distance between the front face of the crankshaft rear seal and the rear face of the cylinder block must be 15.4 0.5 mm (.61 .02 in) after seal installation. See the topic "Crankshaft Seals" in the 3114 & 3116 Diesel Truck Engines Specifications module, Form No. SENR6436 for further details.End By:a. install flywheel
