105671-0480 ZEXEL 9 420 615 128 BOSCH AUTOM. ADVANCE MECHANISM 9420615128 1056710480

Information autom. advance mechanism

BOSCH 9 420 615 128 9420615128

ZEXEL 105671-0480 1056710480

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105671-0480 zexel genuine, new aftermarket engine parts with delivery

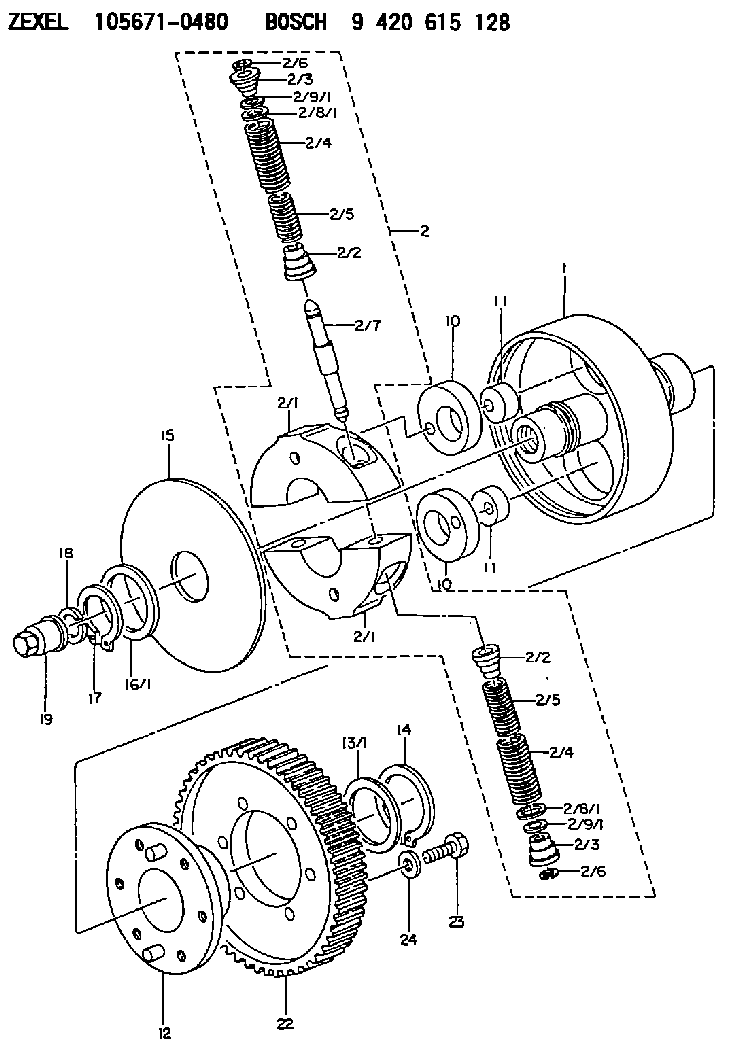

Scheme ###:

1.	[1]	156700-1700	FLANGE BUSHING
2.	[1]	156731-1620	FLYWEIGHT ASSEMBLY
2/1.	[2]	156722-7320	FLYWEIGHT
2/1.	[2]	156722-7320	FLYWEIGHT
2/2.	[4]	156727-1000	SPRING SEAT
2/2.	[4]	156727-1000	SPRING SEAT
2/3.	[4]	156727-1000	SPRING SEAT
2/3.	[4]	156727-1000	SPRING SEAT
2/4.	[4]	156756-3000	COMPRESSION SPRING
2/4.	[4]	156756-3000	COMPRESSION SPRING
2/5.	[4]	156756-3300	COMPRESSION SPRING
2/5.	[4]	156756-3300	COMPRESSION SPRING
2/6.	[4]	156729-0500	LOCKING WASHER
2/6.	[4]	156729-0500	LOCKING WASHER
2/7.	[2]	156726-0200	PIN
2/8/1.	[0]	156728-0800	SHIM D19&15T0.1
2/8/1.	[0]	156728-0800	SHIM D19&15T0.1
2/8/1.	[0]	156728-0900	SHIM D19&15T0.3
2/8/1.	[0]	156728-1000	SHIM D19&15T0.5
2/8/1.	[0]	156728-1100	SHIM D19&15T1.0
2/8/1.	[0]	156728-2000	SHIM D19&15T0.4
2/8/1.	[0]	156728-2100	SHIM D19&15T0.7
2/9/1.	[0]	156728-1200	SHIM D14&10.6T0.1
2/9/1.	[0]	156728-1200	SHIM D14&10.6T0.1
2/9/1.	[0]	156728-1300	SHIM D14&10.6T0.3
2/9/1.	[0]	156728-1400	SHIM D14&10.6T0.5
2/9/1.	[0]	156728-1500	SHIM D14&10.6T1.0
2/9/1.	[0]	156728-2200	SHIM D14&10.6T0.4
2/9/1.	[0]	156728-2300	SHIM D14&10.6T0.7
10.	[2]	156703-0400	ECCENTRIC DISC
10.	[2]	156703-0400	ECCENTRIC DISC
11.	[2]	156703-0600	ECCENTRIC DISC
11.	[2]	156703-0600	ECCENTRIC DISC
12.	[1]	156701-0420	FLANGE BUSHING
13/1.	[0]	156708-2200	SHIM D46&36.1T0.1
13/1.	[0]	156708-2300	SHIM D46&36.1T0.12
13/1.	[0]	156708-2400	SHIM D46&36.1T0.14
13/1.	[0]	156708-2500	SHIM D46&36.1T0.16
13/1.	[0]	156708-2600	SHIM D46&36.1T0.18
13/1.	[0]	156708-2700	SHIM D46&36.1T0.9
13/1.	[0]	156708-2800	SHIM D46&36.1T1.10
13/1.	[0]	156708-2900	SHIM D46&36.1T1.3
13/1.	[0]	156708-3000	SHIM D46&36.1T1.5
13/1.	[0]	156708-3100	SHIM D46&36.1T1.7
14.	[1]	016020-3610	LOCKING WASHER
15.	[1]	156709-0800	COVER
16/1.	[0]	156708-2200	SHIM D46&36.1T0.1
16/1.	[0]	156708-2300	SHIM D46&36.1T0.12
16/1.	[0]	156708-2400	SHIM D46&36.1T0.14
16/1.	[0]	156708-2500	SHIM D46&36.1T0.16
16/1.	[0]	156708-2600	SHIM D46&36.1T0.18
16/1.	[0]	156708-2700	SHIM D46&36.1T0.9
16/1.	[0]	156708-2800	SHIM D46&36.1T1.10
16/1.	[0]	156708-2900	SHIM D46&36.1T1.3
16/1.	[0]	156708-3000	SHIM D46&36.1T1.5
16/1.	[0]	156708-3100	SHIM D46&36.1T1.7
17.	[1]	016020-3610	LOCKING WASHER
18.	[1]	029321-4060	LOCKING WASHER
19.	[1]	131325-3100	UNION NUT
22.	[1]	156221-7000	TOOTHED GEAR
23.	[4]	156633-0500	BLEEDER SCREW
24.	[4]	156615-1800	PLAIN WASHER

Include in #1:

101401-9442 as AUTOM. ADVANCE MECHANIS

101401-9443

Cross reference number

Zexel num

Bosch num

Firm num

Name

105671-0480

9 420 615 128

AUTOM. ADVANCE MECHANISM
* K 14KJ TIMER SCDM TIMER

Information:

Start By:a. remove timing gear cover
Do not disconnect the air line from the air compressor governor until the air pressure is zero.
1. Loosen the bleed valves, and release the air pressure in the air tank. 2. Disconnect the lines from air compressor (1), and remove the air compressor. 3. Remove sleeve (2) from air compressor drive gear (3). 4. Remove the nut and washer that holds the air compressor drive gear to the air compressor. Use tooling (A) to remove air compressor drive gear (3) from the air compressor. 5. Remove nuts (4) and plate (5). Remove gear assembly (6) from the shaft. 6. If damaged, remove bearing (7) from gear assembly (6) with tooling (B) and a press. 7. Remove three nuts (8) and the washers from the adapter assembly studs. 8. Remove adapter assembly (9) from the timing gear plate. 9. Remove shaft (10), O-ring seal (11) and sleeve (12) from the adapter assembly.Install Air Compressor And Accessory Drive
1. Install sleeve (12) into the adapter assembly.2. Install shaft (10) and O-ring seal (11) on the adapter assembly. 3. Put adapter assembly (9) in position on the timing gear plate. fasten it with the three nuts and washers. 4. Install the bearing in gear assembly (6) with tooling (A) and a press. Install the bearing until it is 1.5 0.5 mm (.06 .02 in.) below the surface of the gear as shown. 5. Put gear assembly (6) in position on the shaft.6. Put plate (5) in position, and install three nuts (4) to hold it. 7. Put air compressor drive gear (3) in position on the air compressor shaft, and install the washer and nut (13). Tighten the nut to a torque of 200 25 N m (150 18 lb.ft.). Tap the gear with a hammer and tighten nut again to a torque of 200 25 N m (150 18 lb.ft 8. Install sleeve (2) on gear (3). 9. Put a gasket in position on air compressor (1) and install the air compressor on the timing cover plate.End By:a. install timing gear cover
