Information autom. advance mechanism
BOSCH
9 420 615 209
9420615209
ZEXEL
105671-0310
1056710310
NISSAN-DIESEL
168100T306
168100t306
Rating:

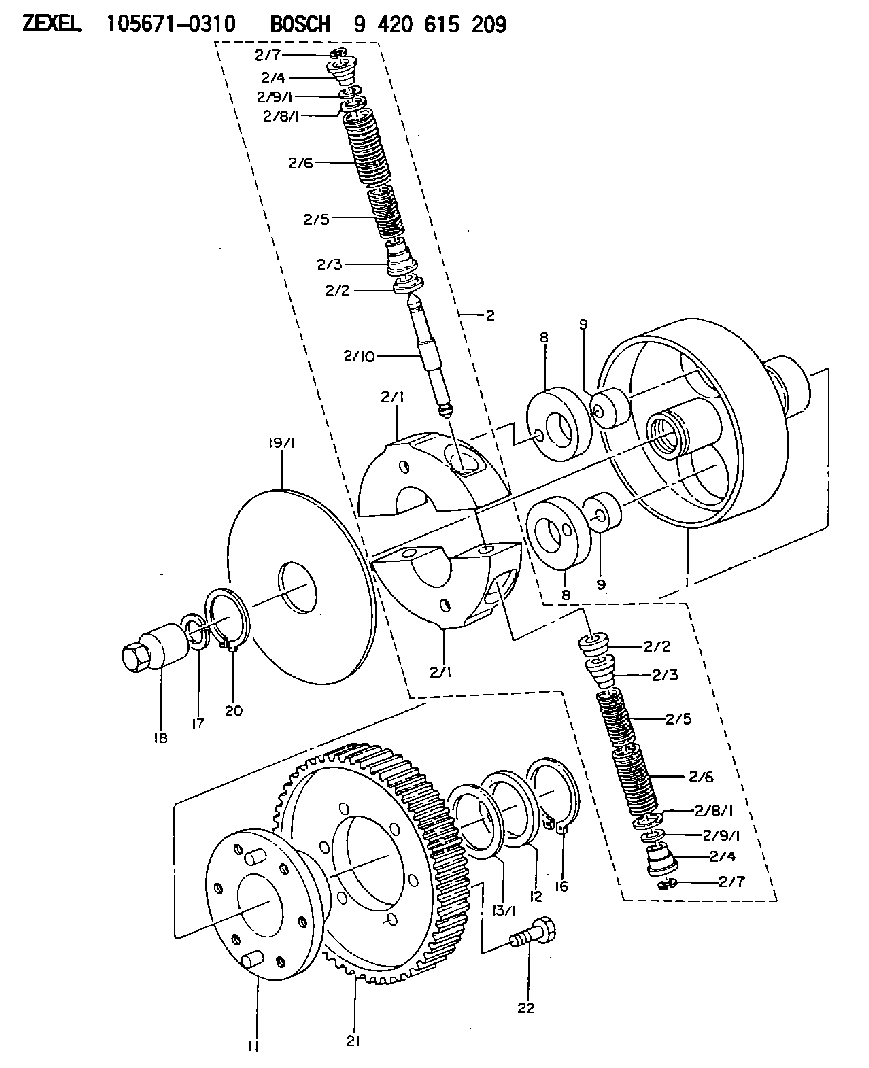

Scheme ###:
| 1. | [1] | 156700-0000 | FLANGE BUSHING |
| 2. | [1] | 156718-0420 | FLYWEIGHT ASSEMBLY |
| 2/1. | [2] | 156702-7620 | FLYWEIGHT |
| 2/1. | [2] | 156702-7620 | FLYWEIGHT |
| 2/2. | [4] | 156707-0500 | SLOTTED WASHER |
| 2/2. | [4] | 156707-0500 | SLOTTED WASHER |
| 2/3. | [4] | 156707-0600 | SLOTTED WASHER |
| 2/3. | [4] | 156707-0600 | SLOTTED WASHER |
| 2/4. | [4] | 156707-0700 | SLOTTED WASHER |
| 2/4. | [4] | 156707-0700 | SLOTTED WASHER |
| 2/5. | [4] | 156714-1800 | COMPRESSION SPRING |
| 2/5. | [4] | 156714-1800 | COMPRESSION SPRING |
| 2/6. | [4] | 156714-4200 | COMPRESSION SPRING |
| 2/6. | [4] | 156714-4200 | COMPRESSION SPRING |
| 2/7. | [4] | 156729-0500 | LOCKING WASHER |
| 2/7. | [4] | 156729-0500 | LOCKING WASHER |
| 2/8/1. | [0] | 156708-4700 | SHIM D15.5&12.5T0.2 |
| 2/8/1. | [0] | 156708-4800 | SHIM D15.5&12.5T0.3 |
| 2/8/1. | [0] | 156708-4800 | SHIM D15.5&12.5T0.3 |
| 2/8/1. | [0] | 156708-4900 | SHIM D15.5&12.5T0.4 |
| 2/8/1. | [0] | 156708-5000 | SHIM D15.5&12.5T0.5 |
| 2/8/1. | [0] | 156708-5100 | SHIM D15.5&12.5T0.7 |
| 2/8/1. | [0] | 156708-5200 | SHIM D15.5&12.5T1.0 |
| 2/9/1. | [0] | 156708-5300 | SHIM D11.5&8.6T0.2 |
| 2/9/1. | [0] | 156708-5400 | SHIM D11.5&8.6T0.3 |
| 2/9/1. | [0] | 156708-5500 | SHIM D11.5&8.6T0.4 |
| 2/9/1. | [0] | 156708-5500 | SHIM D11.5&8.6T0.4 |
| 2/9/1. | [0] | 156708-5600 | SHIM D11.5&8.6T0.5 |
| 2/9/1. | [0] | 156708-5700 | SHIM D11.5&8.6T0.7 |
| 2/9/1. | [0] | 156708-5800 | SHIM D11.5&8.6T1.0 |
| 2/10. | [2] | 156706-0600 | PIN |
| 8. | [2] | 156703-0500 | ECCENTRIC DISC |
| 8. | [2] | 156703-0500 | ECCENTRIC DISC |
| 9. | [2] | 156703-0600 | ECCENTRIC DISC |
| 9. | [2] | 156703-0600 | ECCENTRIC DISC |
| 11. | [1] | 156701-0020 | FLANGE BUSHING |
| 12. | [1] | 156708-0000 | SHIM D46.0&34.1T2.85 |
| 13/1. | [0] | 156708-0100 | SHIM D46.0&34.1T0.1 |
| 13/1. | [0] | 156708-0200 | SHIM D46.0&34.1T0.12 |
| 13/1. | [0] | 156708-0300 | SHIM D46.0&34.1T0.14 |
| 13/1. | [0] | 156708-0400 | SHIM D46.0&34.1T0.16 |
| 13/1. | [0] | 156708-0500 | SHIM D46.0&34.1T0.18 |
| 13/1. | [0] | 156708-0600 | SHIM D46.0&34.1T0.2 |
| 13/1. | [0] | 156708-0700 | SHIM D46.0&34.1T0.3 |
| 16. | [1] | 016020-3420 | LOCKING WASHER |
| 17. | [1] | 156709-1000 | LOCKING WASHER |
| 18. | [1] | 131325-2300 | UNION NUT |
| 19/1. | [0] | 156708-1800 | SHIM D104&26.2T1.9 |
| 19/1. | [0] | 156708-1900 | SHIM D104&26.2T2.0 |
| 19/1. | [0] | 156708-2000 | SHIM D104&26.2T2.1 |
| 20. | [1] | 016020-2620 | LOCKING WASHER |
| 21. | [1] | 156221-5200 | TOOTHED GEAR |
| 22. | [6] | 139006-5600 | BLEEDER SCREW |
Include in #1:
101493-9110
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105671-0310
168100T306 NISSAN-DIESEL
AUTOM. ADVANCE MECHANISM
K 14KJ AUTOMATIC TIMER TIMER SCDM TIMER
K 14KJ AUTOMATIC TIMER TIMER SCDM TIMER
